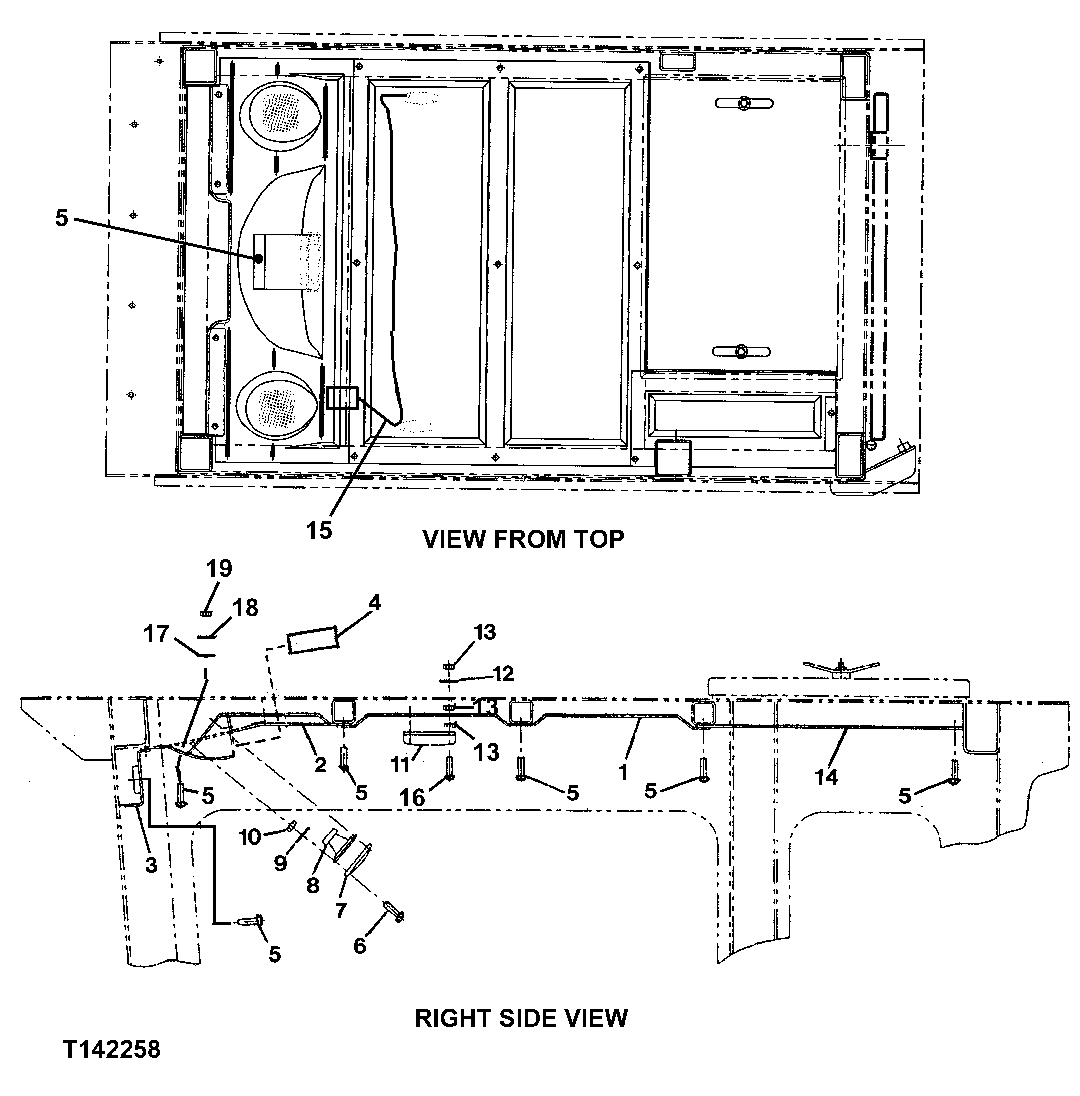

Запчасти John Deere 330LC, 370 80 - REAR ENTRY CAB INSIDE ROOF PANELS 1810B Operator Enclosure (Rear Entry)

1

FFSB102267

Panel

( FFSB107786 NO LONGER AVAILABLE) (CENTER)

1шт.

2

FFSB102266

Panel

(RADIO SPEAKER HOUSING)

1шт.

3

FFSB102265

Cover

(WIPER MOTOR)

1шт.

4

FFSB102264

Radio

1шт.

5

19M8649

Screw

M6 X 20 ( FFSB107921 NO LONGER AVAILABLE)

15шт.

6

4372608

Screw

(SUB FOR AT214316)

8шт.

7

4364504

Grille

(SUB FOR AT214017)

2шт.

8

4361302

Speaker

(SUB FOR AT214007)

2шт.

9

24M7146

Washer

4.300 X 12 X 1 mm

8шт.

10

14M7139

Nut

M4 (SUB FOR 14M7100)

8шт.

11

4187082

Lamp

(SUB FOR FFSB106799 ) (SUB FOR TH108567)

2шт.

12

24M7348

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB107713)

4шт.

13

14M7297

Nut

M5 (SUB FOR FFSB105284)

12шт.

14

FFSB102271

Panel

1шт.

15

FFSB103718

Wiring Harness

(DOME LIGHT)

1шт.

16

21M7207

Screw

M5 X 20

4шт.

17

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

1шт.

18

12M7006

Lock Washer

6 mm (SUB FOR FFSB107439)

1шт.

19

14M7194

Nut

M6 (SUB FOR FFSB107725)

1шт.
