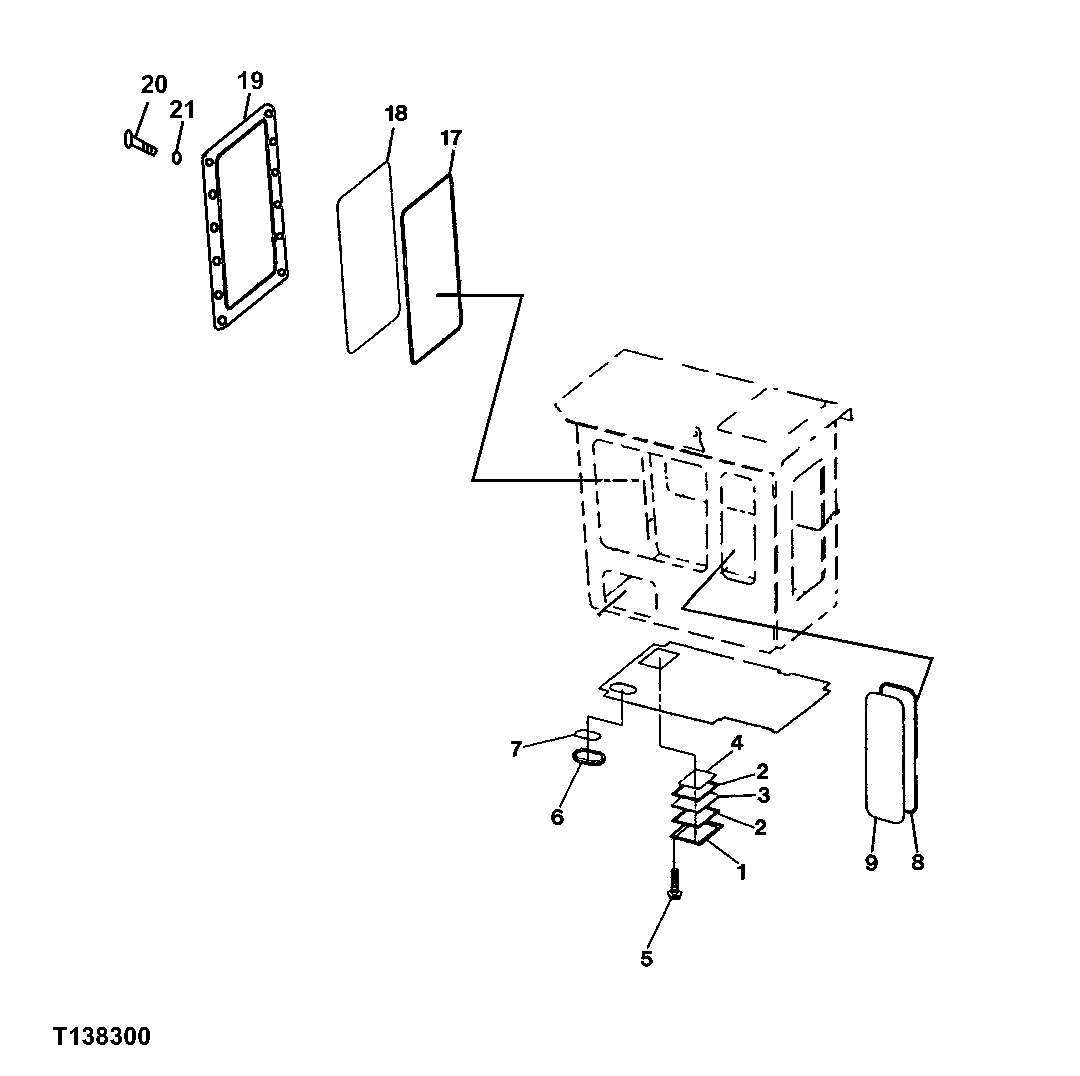

Запчасти John Deere 330LC, 370 73 - REAR ENTRY CAB WINDOWS 1810B Operator Enclosure (Rear Entry)

1

FFSB102209

Frame

1шт.

2

Seal

( FFSB102075 NOT AVAILABLE FOR SERVICE) (FURNISH FFSB103444 BUL K MATERIAL CUT TO 2600 MM LENGTH )

2шт.

3

FFSB102210

Window

(LEXAN)

1шт.

4

FFSB102211

Windowpane

1шт.

5

FFSB102626

Cap Screw

6шт.

6

FFSB102272

Weatherstrip

1шт.

7

FFSB102212

Windowpane

1шт.

8

FFSB102273

Weatherstrip

1шт.

9

FFSB102213

Windowpane

1шт.

17

FFSB103444

Seal

(SUB FOR FFSB108049)

1шт.

18

FFSB108046

Windowpane

1шт.

19

FFSB108389

Cover

1шт.

20

19M7268

Cap Screw

M12 X 25

12шт.

21

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

12шт.

50

Cab

( FFSB103419 NO LONGER AVAILABLE) (NOT ILLUSTRATED) (CONVENIENCE ASSEMBLY) (72 INCH REAR ENTRY CAB WITH GLASS WINDOWS) (CONTAINS ALL ITEMS ON THIS PAGE - ADDI TIONAL COMPONENTS LISTED ON SEPARATE PAG ES)

1шт.
