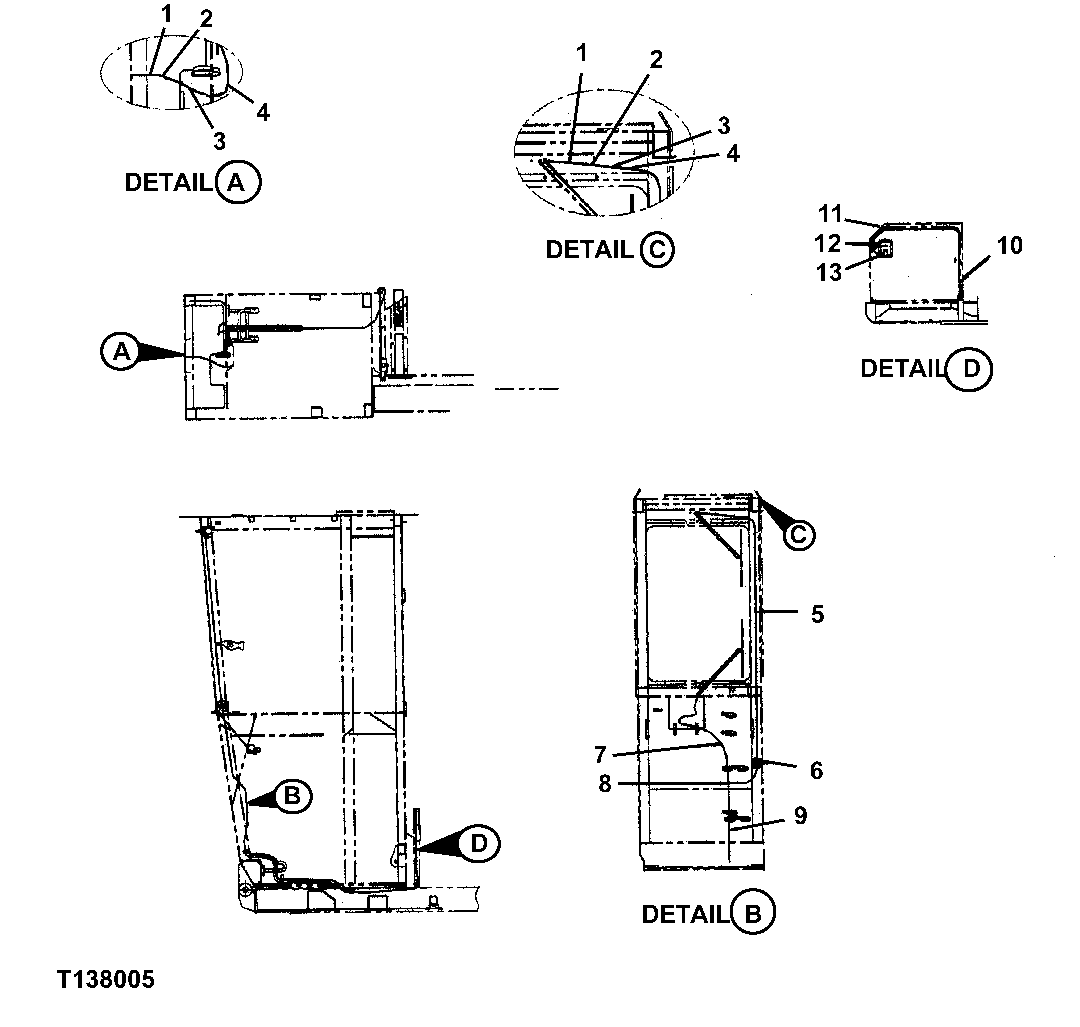

Запчасти John Deere 330LC, 370 72 - REAR ENTRY CAB WINDSHIELD WASHER 1810B Operator Enclosure (Rear Entry)

1

Structural Tube

( FFSB107893 NOT AVAILABLE FO R SERVICE) (CUT TO LENGTH FROM T78593 BULK MATERIAL - 400 MM )

2шт.

2

FFSB107476

Fitting

2шт.

3

Structural Tube

( FFSB107894 NOT AVAILABLE FOR SERVICE) (CUT TO LENGTH FROM T 60804 BULK MATERIAL - 300 MM )

2шт.

4

4367481

Flow Control Hyd. Valve

(SUB FOR FFSB107895 ) (SUB FOR AT214041)

2шт.

5

Structural Tube

( FFSB107896 NOT AVAILABLE FOR SERVICE) (CUT TO LENGTH FROM T 60804 BULK MATERIAL - 3600 MM)

1шт.

6

FFSB106671

Plate

1шт.

7

Structural Tube

( FFSB107897 NOT AVAILABLE FOR SERVICE) (CUT TO LENGTH FROM T 60804 BULK MATERIAL - 1200 MM)

1шт.

8

FFSB107903

Fitting

1шт.

9

Structural Tube

( FFSB107898 NOT AVAILABLE FOR SERVICE) (CUT TO LENGTH FROM T 60804 BULK MATERIAL - 5000 MM)

1шт.

10

H77698

Tie Band

(SUB FOR FFSB107802)

3шт.

11

4343692

Clip

(SUB FOR FFSB107906)

4шт.

12

19M8425

Cap Screw

M6 X 16 (SUB FOR FFSB10 7905 ) (SUB FOR 19M7560)

2шт.

13

4333185

Reservoir

(SUB FOR FFSB107904)

1шт.
