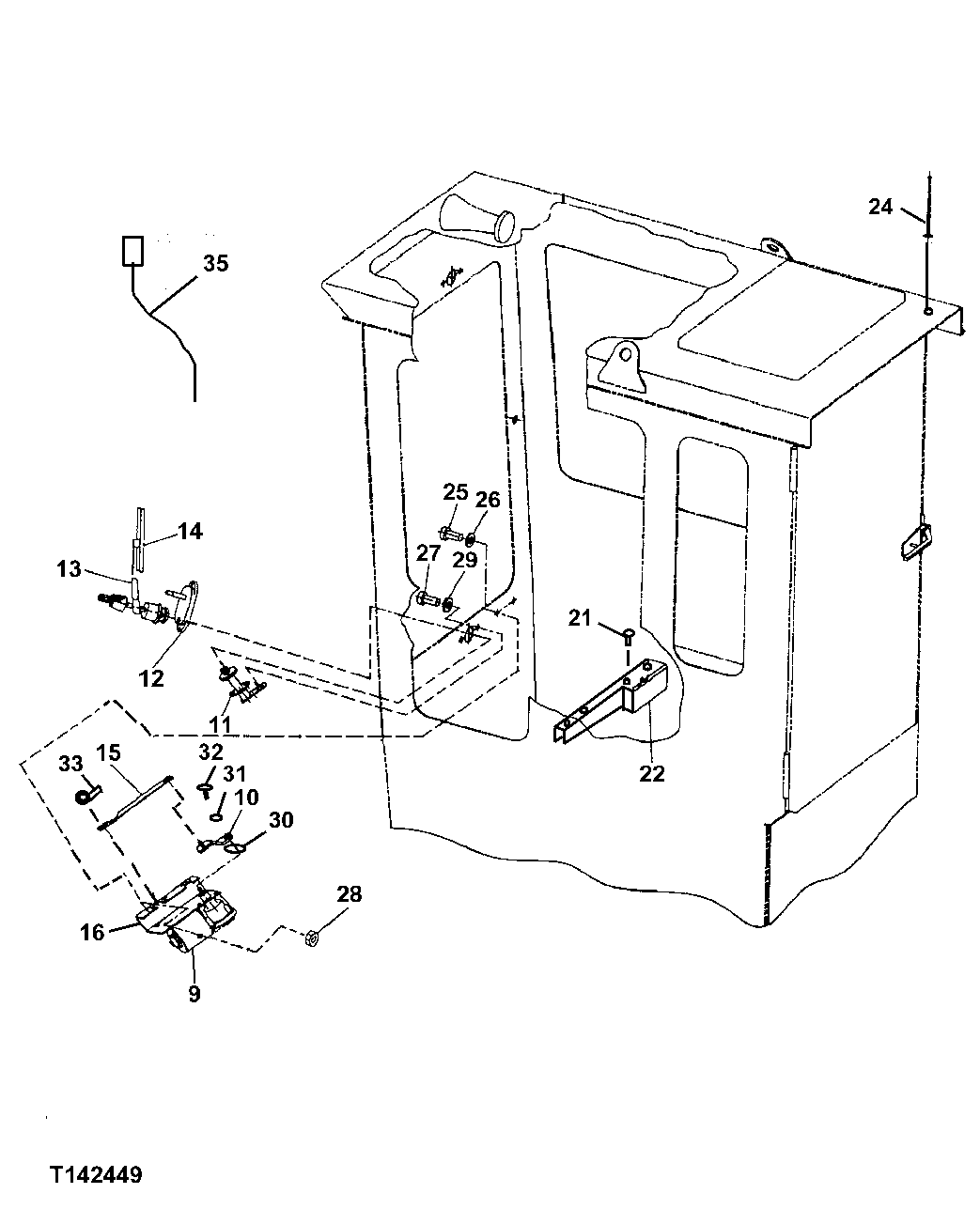

Запчасти John Deere 330LC, 370 71 - REAR ENTRY CAB LOWER WINDSHIELD WIPER 1810B Operator Enclosure (Rear Entry)

9

FFSB115016

Wiper Motor

SUB FOR FFSB107836

1шт.

10

FFSB102153

Wiper Arm

1шт.

11

FFSB102154

Shaft

1шт.

12

FFSB107870

Adapter Fitting

Contains Mounting Hardwar e, Not Serviced Separately

1шт.

13

FFSB107451

Wiper Arm

1шт.

14

FFSB107452

Wiper Blade

1шт.

15

FFSB102159

Link

1шт.

16

Bracket

NOT AVAILABLE FOR SERVICE

1шт.

21

19M8649

Screw

M6 X 20 FFSB107861 NO LONGER AVAILABLE

4шт.

22

FFSB107899

Panel

LOWER WIPER MOTOR COVER

1шт.

24

FFSB102184

Antenna

1шт.

25

21H1298

Screw

0.190" X 3/8" FFSB1078 37 NO LONGER AVAILABLE

2шт.

12M7060

Washer

5.300 mm

2шт.

26

FFSB107852

Spacer

2шт.

27

19H1914

Cap Screw

1/4" X 1"

2шт.

28

K40001

Lock Nut

FFSB102853 NO LONGER AVAILABLE

2шт.

29

24H1287

Washer

9/32" X 5/8" X 0.065"

2шт.

30

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR FFSB107839

2шт.

31

14H786

Nut

1/4"

1шт.

32

M42626

Bolt

FFSB107838 NO LONGER AVAILABLE

3шт.

33

FFSB107840

Clip

2шт.
