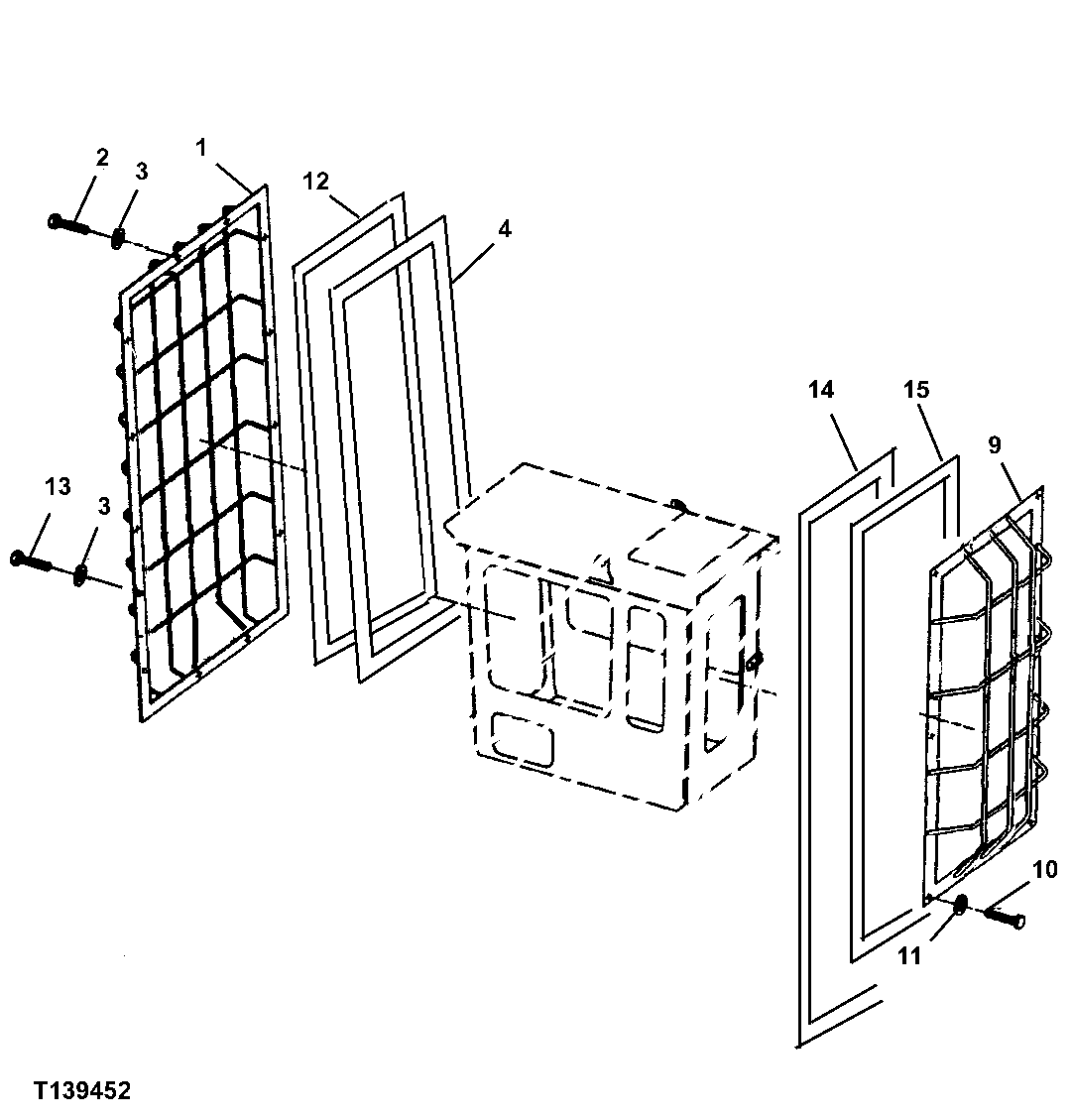

Запчасти John Deere 330LC, 370 69 - Rear Entry Cab Window Guard (WCB Package) 1810B Operator Enclosure (Rear Entry)

1

FFSB108047

Guard

1шт.

2

FFSB106723

Bolt

22шт.

3

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 082 ) (SUB FOR 12M7067)

34шт.

4

FFSB108358

Seal

MF FFSB108355, CTL 5.03 M

1шт.

9

FFSB105902

Guard

1шт.

10

FFSB106723

Bolt

17шт.

11

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 082 ) (SUB FOR 12M7067)

17шт.

12

FFSB108389

Cover

1шт.

13

19M7268

Cap Screw

M12 X 25 (SUB FOR FFSB106947)

12шт.

14

FFSB106940

Seal

(SUB FOR FFSB107202)(CUT TO 3045 MM)

1шт.

15

Seal

(MF FFSB108358, CTL 341 0MM) ( FFSB108545 NLA)

1шт.
