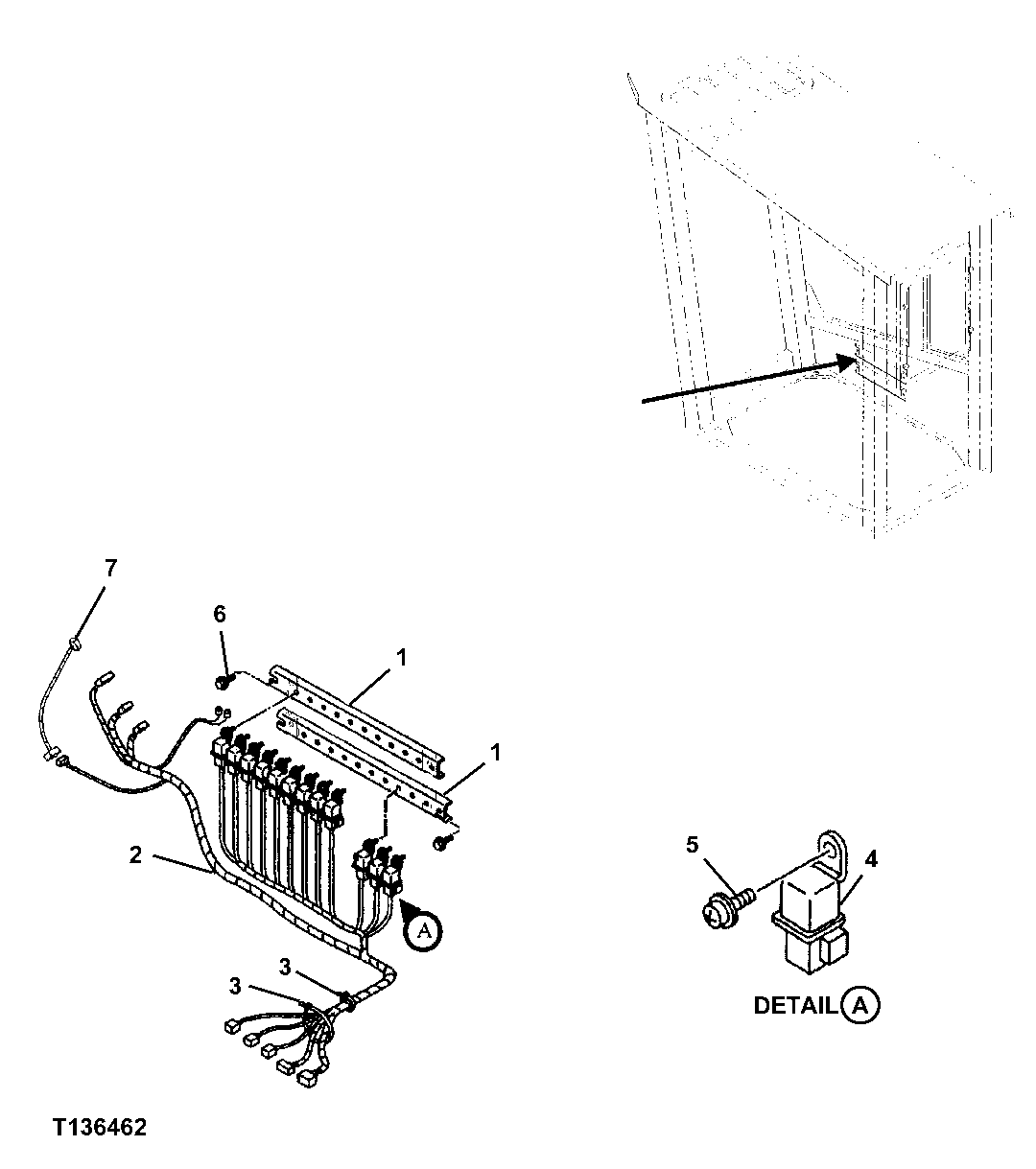

Запчасти John Deere 330LC, 370 58 - FORESTRY CAB RELAY CIRCUIT 1674C Wiring Harness And Switches (Forestry)

1

8073968

Bracket

(SUB FOR AT214362)

2шт.

2

0003461

Wiring Harness

(SUB FOR AT186648)

1шт.

3

H77698

Tie Band

2шт.

4

4414207

Relay

(SUB FOR AT186647)

12шт.

5

19M8425

Cap Screw

M6 X 16

12шт.

12M7006

Lock Washer

6 mm

12шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

12шт.

6

Cap Screw

(NOT REQUIRED THIS APPLICATION)

4шт.

19M7932

Cap Screw

M8 X 16

4шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

7

FFSB103236

Wiring Harness

1шт.
