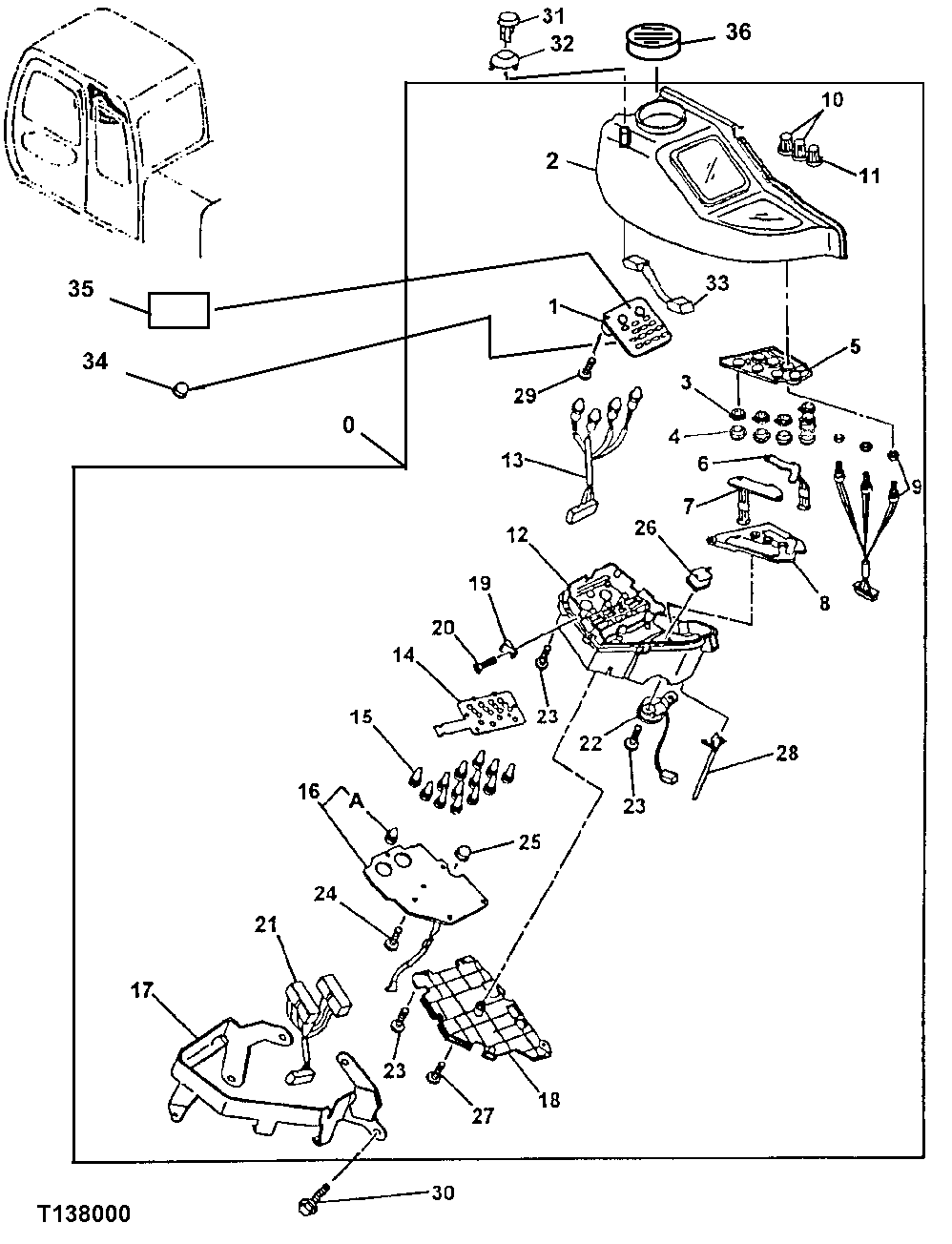

Запчасти John Deere 330LC, 370 51 - MONITOR FOR REAR ENTRY CAB 1674B Wiring Harness And Switches (Rear Entry)

0

FYA00015548

Monitor

4411761 NLA; SUB FOR FFSB103192

1шт.

1

4386467

Panel

SUB FOR AT218130

1шт.

2

Case

4420938 NLA; SUB FOR AT185756

1шт.

3

4370113

Push Button

SUB FOR AT214177

5шт.

4

4310827

Retainer

SUB FOR AT213826

5шт.

5

4370114

Cover

SUB FOR AT214178

1шт.

6

Circuit Board

SUB FOR FYA00020085 OR AT214179; 4370115 NLA

1шт.

7

4370116

Circuit Board

SUB FOR AT214180

1шт.

8

4370117

Support

SUB FOR AT214181

1шт.

9

4370118

Monitor Wiring Harness

SUB FOR AT214182

1шт.

10

4370119

Knob

SUB FOR AT214183

2шт.

11

4370137

Knob

SUB FOR AT214184

1шт.

12

4370138

Housing

SUB FOR AT214185

1шт.

13

4370139

Wiring Harness

SUB FOR AT214186

1шт.

14

4370140

Circuit Board

SUB FOR AT214187

1шт.

15

4370141

Lamp

SUB FOR AT214188

13шт.

16

FYA00015551

Monitor

SUB FOR 4370142, AT214189

1шт.

16A

4370141

Lamp

SUB FOR AT214188

1шт.

17

4370144

Bracket

SUB FOR AT214191

1шт.

18

4370145

Cover

SUB FOR AT214192

1шт.

19

4370146

Nut

SUB FOR AT214193

2шт.

20

4370147

Screw

SUB FOR AT214194

2шт.

21

4370148

Wiring Harness

SUB FOR AT214195

1шт.

22

4370149

Audible Warning Alarm

SUB FOR AT214196

1шт.

23

4294999

Screw

SUB FOR AT213817

19шт.

24

4370154

Set Screw

SUB FOR AT214201

6шт.

25

Cap

1шт.

26

Cap

1шт.

27

T116079

Screw

SUB FOR AT155616 AND 4297101

1шт.

28

4370155

Clamp

SUB FOR AT214202

1шт.

29

N202901

Screw

SUB FOR AT214203, 4370156

1шт.

30

19M7932

Cap Screw

M8 X 16

4шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

4шт.

31

4405814

Sensor

SUB FOR AT186239

1шт.

32

4405194

Spacer

SUB FOR AT186240

1шт.

33

4413801

Wiring Harness

SUB FOR AT186243

1шт.

34

4370141

Lamp

SUB FOR AT214188

1шт.

35

T153187

Label

1шт.

36

FFSB102308

Cover

1шт.
