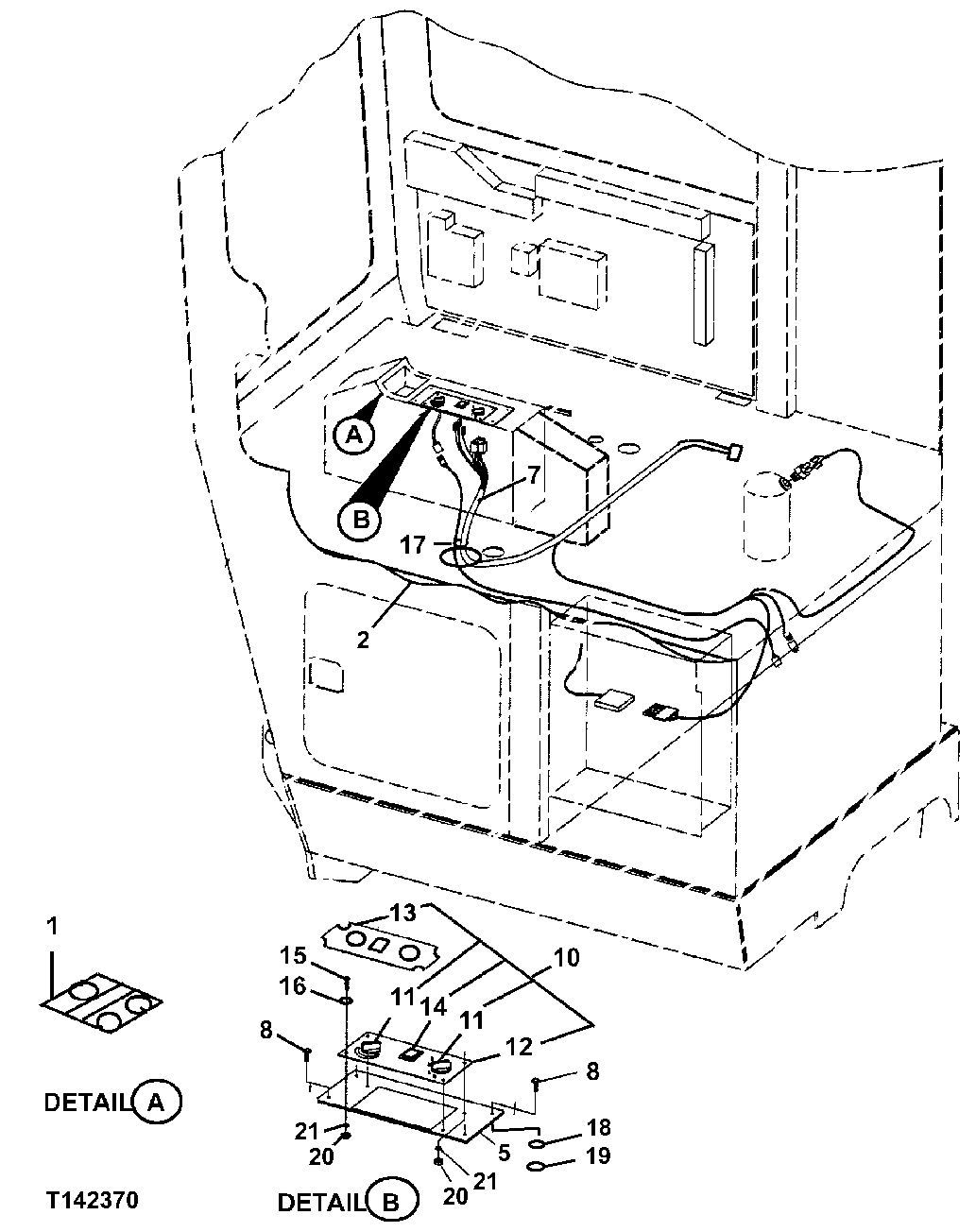

Запчасти John Deere 330LC, 370 50 - LEFT SIDE CONSOLE FOR REAR ENTRY CAB 1674B Wiring Harness And Switches (Rear Entry)

1

FFSB103974

Instrument Panel

(SEE SEPARATE PAGE FOR DETAIL)

1шт.

2

FFSB103726

Wiring Harness

(HEATER)

1шт.

5

FFSB108213

Plate

(RADIO OPENING)

1шт.

7

FFSB103727

Wiring Harness

1шт.

8

19M7700

Cap Screw

M5 X 10 (SUB FOR FFSB107787)

4шт.

10

FFSB102369

Control Console

1шт.

11

AT191693

Knob

(SUB FOR FFSB103082)

2шт.

12

FFSB103078

Plate

1шт.

13

FFSB103079

Label

1шт.

14

F122485

Switch

(SUB FOR FFSB103083)

1шт.

15

FFSB108240

Bolt

4шт.

16

24M7087

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB108241)

4шт.

17

H77698

Tie Band

(SUB FOR FFSB108261)

2шт.

18

12M7064

Lock Washer

5 mm

4шт.

19

14M7297

Nut

M5

4шт.

20

14M7297

Nut

M5 (SUB FOR FFSB105284)

4шт.

21

12M7064

Lock Washer

5 mm (SUB FOR FFSB108156)

4шт.
