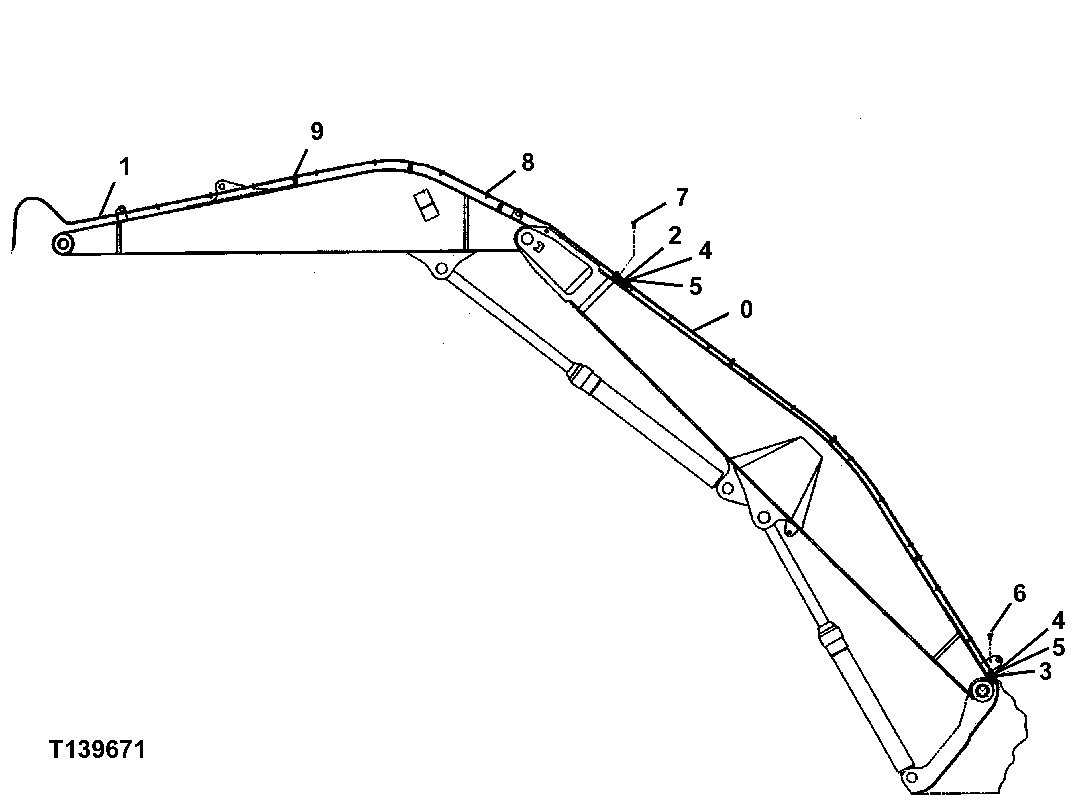

Запчасти John Deere 330LC, 370 39 - BOOM AND STICK WIRE HARNESS FOR BUTT-N-TOP 1674A Wiring Harness And Switches (Standard)

0

FFSB103743

Wiring Harness

(BOOM)

1шт.

1

FFSB103744

Wiring Harness

(STICK)

1шт.

2

FFSB108725

Bracket

1шт.

3

FFSB108723

Bracket

1шт.

4

21M7394

Screw

M3 X 10 (SUB FOR FFSB108282)

8шт.

5

24H1914

Washer

1/8" X 5/16" X 0.032" (SUB FOR FFSB108286)

8шт.

6

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107365 OR AT131307)

2шт.

12M7066

Lock Washer

10 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

7

19H1944

Cap Screw

3/8" X 2-3/4" (SUB FOR FFSB108727)

2шт.

8

R76477

Tie Band

(SUB FOR FFSB102324)

36шт.

9

F053301

Holder

( FFSB102835 NO LONGER AVAILABLE)

6шт.
