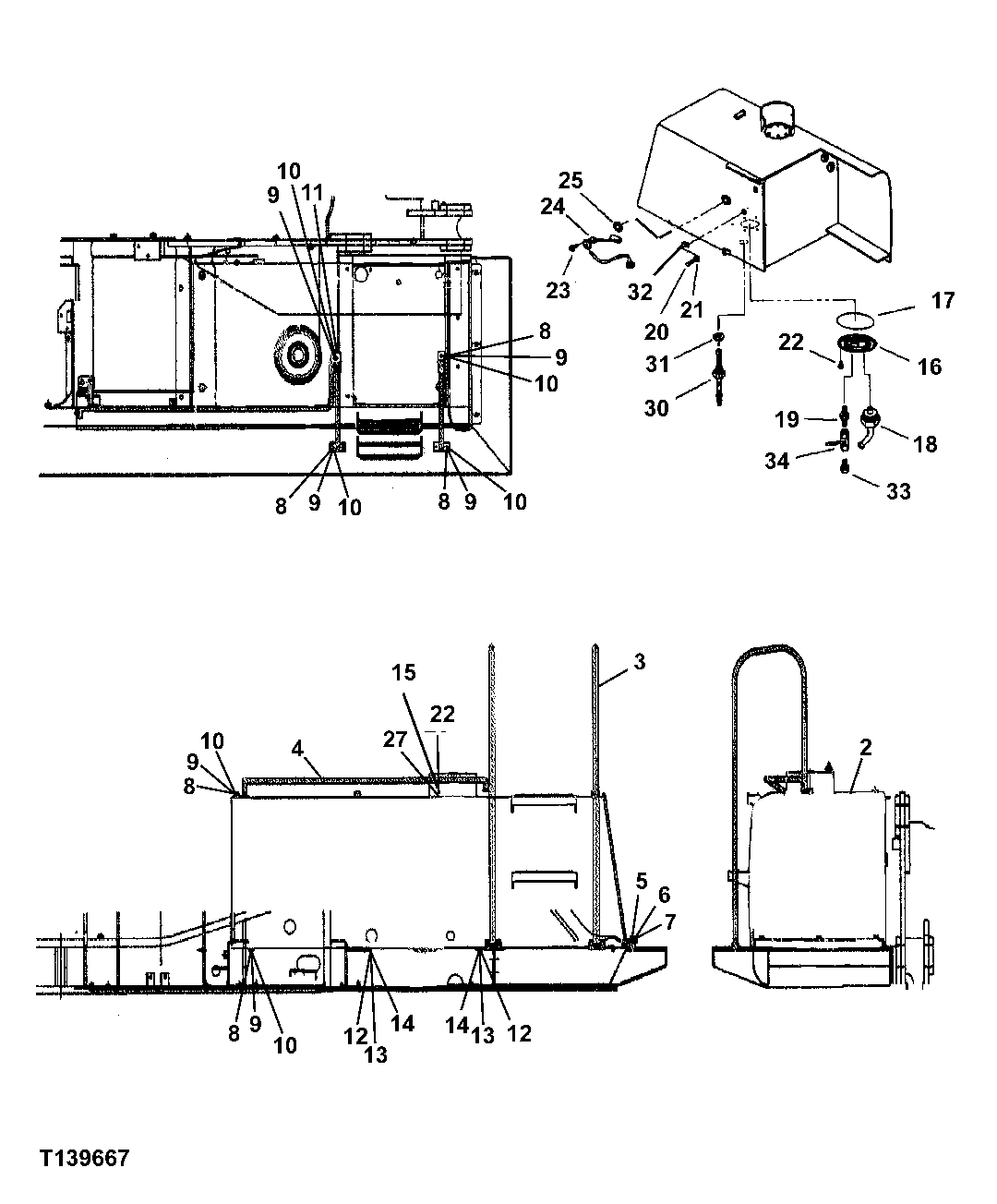

Запчасти John Deere 330LC, 370 24 - EXTENDED CAPACITY FUEL TANK WITH CAP NOT FILLER 0564 Fuel Tank

2

FFSB105213

Fuel Tank

1шт.

3

FFSB107069

Handrail

(VERTICAL)

2шт.

4

FFSB107070

Handrail

(HORIZONTAL)

1шт.

5

19M7488

Cap Screw

M16 X 40

3шт.

6

12H294

Lock Washer

5/8" (SUB FOR FFSB105798)

3шт.

7

24M7053

Washer

17 X 30 X 3 mm (SUB FOR FFSB105799)

3шт.

8

19M8011

Cap Screw

M12 X 30

8шт.

9

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

10шт.

10

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

10шт.

11

19M7493

Cap Screw

M12 X 40 (SUB FOR FFSB105212)

2шт.

12

T116332

Bolt

M18 X 40 (SUB FOR FFSB105800)

4шт.

13

24M7318

Washer

19 X 34 X 3 mm

4шт.

14

J257218

Lock Washer

(SUB FOR AT250277)

4шт.

15

FFSB108317

Cover

(PLATE)

1шт.

16

8067496

Cover

(SUB FOR FFSB107795)

1шт.

17

TH100679

O-Ring

159.300 X 5.700 mm (SUB FOR FFSB107796)

1шт.

18

9726772

Fitting

(SUB FOR FFSB107800 ) (SUB FOR TH108251)

1шт.

19

94-1702

Adapter Fitting

(SUB FOR FFSB107798 ) (SUB FOR TH102949)

1шт.

20

19M7938

Cap Screw

M10 X 20

1шт.

21

12M7066

Lock Washer

10 mm

1шт.

22

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107131)

12шт.

23

21M7278

Screw

M5 X 10

5шт.

24

4660782

Float

(SUB FOR AT154239 OR 4257128)

1шт.

25

T211051

Gasket

(SUB FOR U42323)

1шт.

26

Pipe Plug

( FFSB108267 NOT REQUIR ED FOR THIS APPLICATION)

2шт.

27

T110444

O-Ring

189.300 X 5.700 mm (SUB FOR FFSB107793)

1шт.

30

4259788

Switch

(SUB FOR AT154272)

1шт.

31

4157648

Sealing Washer

(SUB FOR TH108583)

1шт.

32

4257159

Bracket

(SUB FOR AT154243)

1шт.

33

R30298

Pipe Plug

(SUB FOR FFSB107799)

1шт.

34

4374265

Drain Valve

(SUB FOR FFSB107797 ) (SUB FOR AT177419)

1шт.
