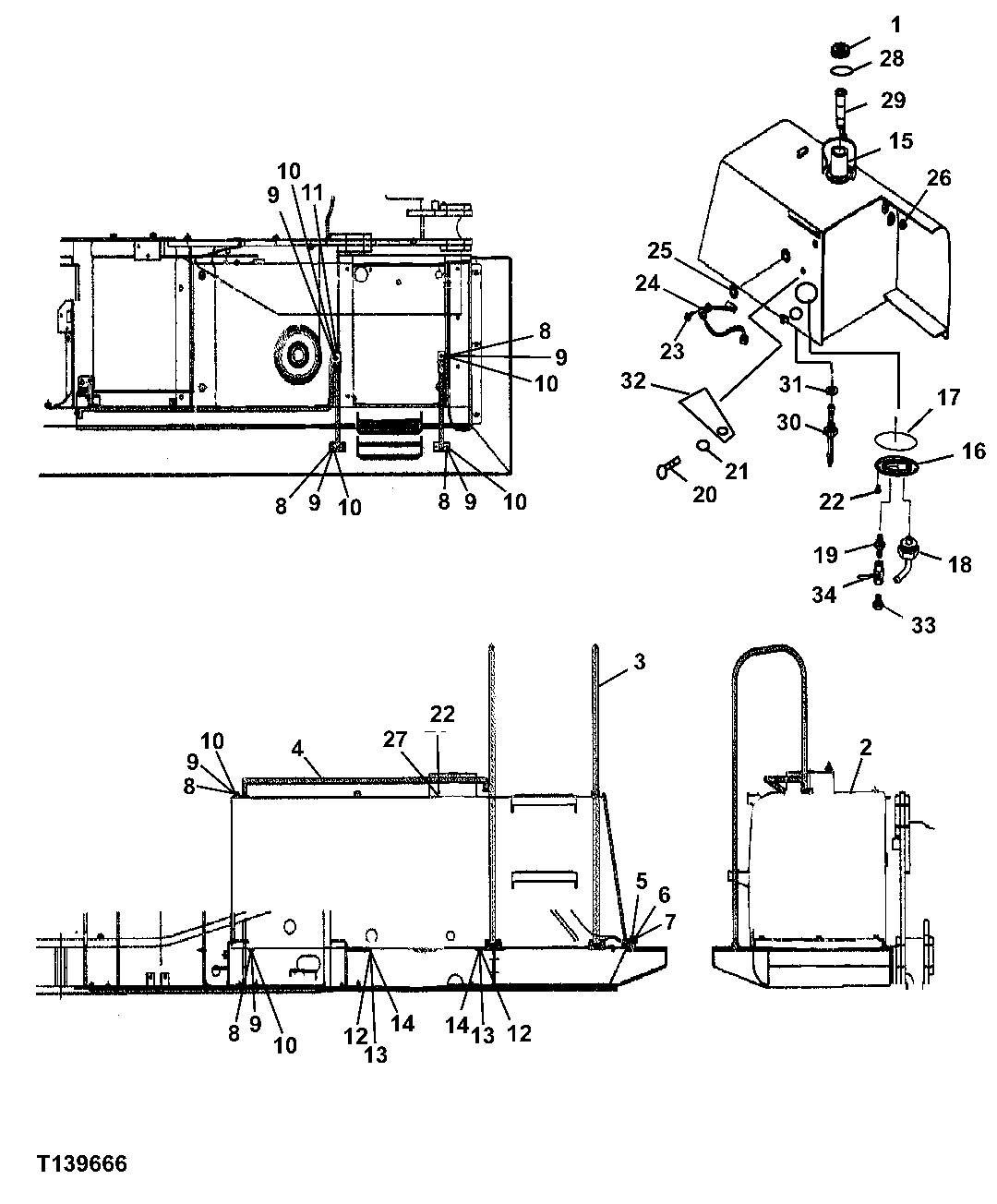

Запчасти John Deere 330LC, 370 23 - EXTENDED CAPACITY RIGHT FRONT FUEL TANK 0564 Fuel Tank

1

4361638

Cap

SUB FOR FFSB105697, KEY LOC KABLE, ORDER KEY SEPARATELY

1шт.

AT323462

Filler Cap

SUB FOR AT175989 OR 4361638, CAN BE LO CKED WITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

AT194969

Key

1шт.

2

FFSB105213

Fuel Tank

1шт.

3

FFSB107069

Handrail

2шт.

4

FFSB107070

Handrail

1шт.

5

19M7488

Cap Screw

M16 X 40

3шт.

6

12H294

Lock Washer

5/8" SUB FOR FFSB105798

3шт.

7

24M7053

Washer

17 X 30 X 3 mm SUB FOR FFSB105799

3шт.

8

19M8011

Cap Screw

M12 X 30

8шт.

9

12M7058

Lock Washer

12 mm SUB FOR 12M7067

10шт.

10

24M7047

Washer

13 X 24 X 2.500 mm SUB FOR FFSB105797

10шт.

11

19M7493

Cap Screw

M12 X 40 SUB FOR FFSB105212

2шт.

12

T116332

Bolt

M18 X 40 SUB FOR FFSB105800

4шт.

13

24M7318

Washer

19 X 34 X 3 mm

4шт.

14

J257218

Lock Washer

SUB FOR AT250277

4шт.

15

FFSB107859

Filler Neck

1шт.

16

8067496

Cover

SUB FOR FFSB107795

1шт.

17

TH100679

O-Ring

159.300 X 5.700 mm SUB FOR FFSB107796

1шт.

18

9726772

Fitting

SUB FOR FFSB107800, SUB FOR TH108251

1шт.

19

94-1702

Adapter Fitting

SUB FOR FFSB107798, SUB FOR TH102949

1шт.

20

19M7938

Cap Screw

M10 X 20

1шт.

21

12M7066

Lock Washer

10 mm

1шт.

22

19M7402

Cap Screw

M10 X 25 SUB FOR FFSB107131

12шт.

23

21M7278

Screw

M5 X 10

5шт.

24

4660782

Float

SUB FOR AT154239 OR 4257128

1шт.

25

T211051

Gasket

SUB FOR U42323

1шт.

26

Pipe Plug

FFSB108267 NOT REQUIR ED FOR THIS APPLICATION

2шт.

27

T110444

O-Ring

189.300 X 5.700 mm

1шт.

28

4168820

Packing

SUB FOR FFSB105698, SUB FOR TH103384

1шт.

29

4353560

Strainer

SUB FOR FFSB108276, SUB FOR AT213970

1шт.

30

4259788

Switch

SUB FOR AT154272

1шт.

31

4157648

Sealing Washer

SUB FOR TH108583

1шт.

32

4257159

Bracket

SUB FOR AT154243

1шт.
