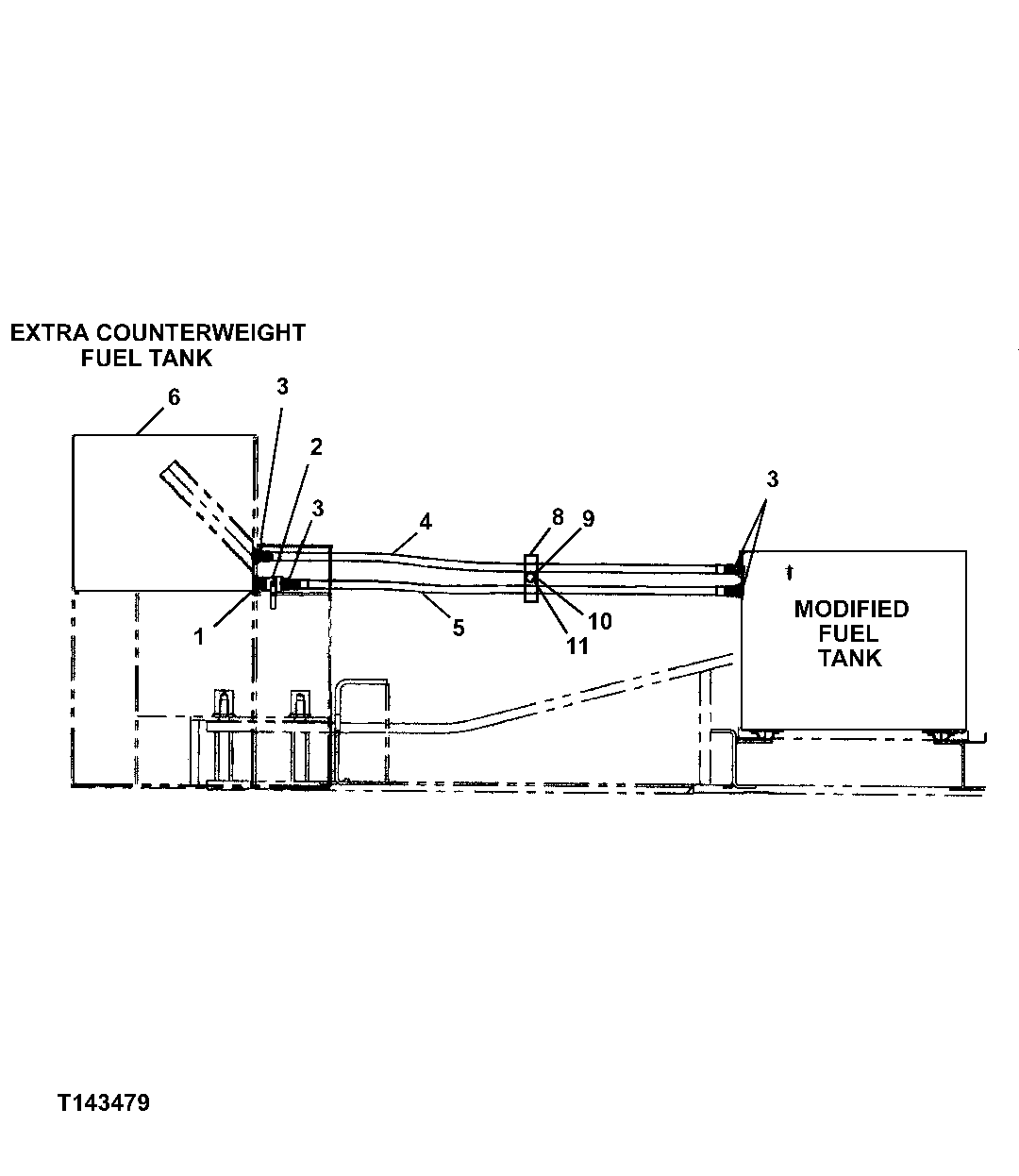

Запчасти John Deere 330LC, 370 22 - COUNTERWEIGHT MOUNTED FUEL TANK PIPINGS 0563 FUEL LINES AND FITTINGS

1

29H749

Threaded Nipple

1-1/4"

1шт.

2

FFSB102103

Check Valve

1шт.

3

T26956

Adapter Fitting

4шт.

4

FFSB107402

Hydraulic Hose

1шт.

5

FFSB107401

Hydraulic Hose

1шт.

6

FFSJ107083

Counterweight

(CONVENIENCE ASSEMBLY)

1шт.

8

F010967

Hose Support

(SUB FOR FFSB104269)

2шт.

9

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB107141)

1шт.

10

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

1шт.

11

14M7274

Nut

M10 (SUB FOR FFSB107411)

1шт.
