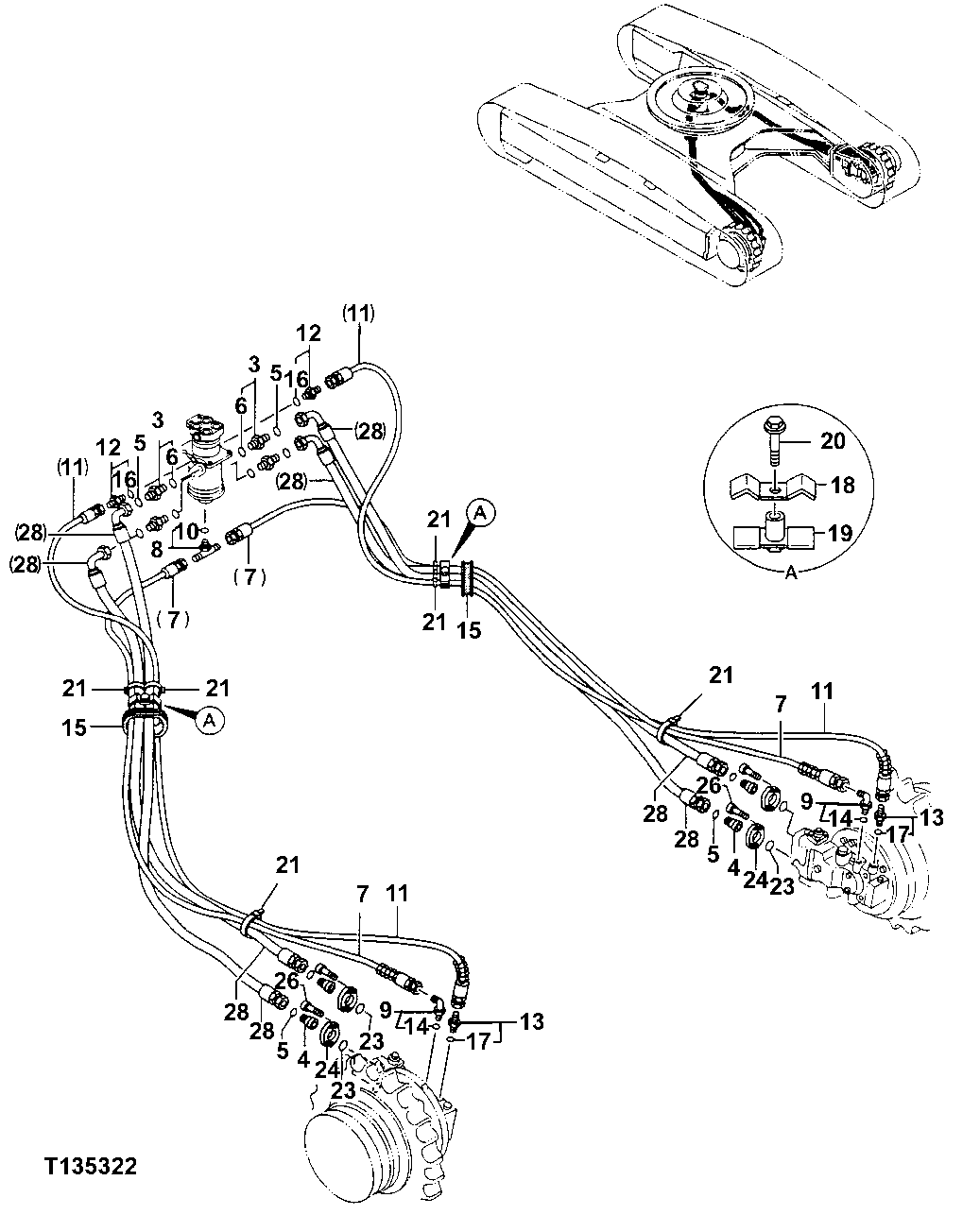

Запчасти John Deere 330LC, 370 13 - TRAVEL PIPINGS 0260 HYDRAULIC SYSTEM

3

4189601

Adapter Fitting

(SUB FOR AT107394)

4шт.

4

4394152

Adapter Fitting

(SUB FOR AT250100)

4шт.

5

T76938

O-Ring

23.520 X 1.780 mm

8шт.

6

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

7

FFSB104592

Hydraulic Hose

(USE WITH 8 FT 10 INCH UNDERCARRIAGE)

2шт.

FFSB102063

Hydraulic Hose

(USE WITH 10 FT 2 INCH UNDERCARRIAGE)

2шт.

8

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

9

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

10

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

11

FFSB104591

Hydraulic Hose

(USE WITH 8 FT 10 INCH UNDERCARRIAGE)

2шт.

FFSB102062

Hydraulic Hose

(USE WITH 10 FT 2 INCH UNDERCARRIAGE)

2шт.

12

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

13

4200468

Adapter Fitting

(SUB FOR AT126336)

2шт.

14

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

15

4396013

Bushing

(SUB FOR AT250104)

2шт.

16

M800650

Packing

1шт.

17

CH11570

O-Ring

13.800 X 2.400 mm

2шт.

18

4202103

Clamp

(SUB FOR TH108302)

2шт.

19

9736782

Clamp

(SUB FOR AT201191)

2шт.

20

19M8348

Cap Screw

M12 X 65

2шт.

12H301

Lock Washer

1/2"

2шт.

21

H77698

Tie Band

6шт.

23

T78313

O-Ring

32.920 X 3.530 mm

4шт.

24

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

26

19M9163

Screw

M12 X 40 (SUB FOR J781240)

16шт.

28

FFSB104593

Hydraulic Hose

(USE WITH 8 FT 10 INCH UNDERCARRIAGE)

4шт.

FFSB102064

Hydraulic Hose

(USE WITH 10 FT 2 INCH UNDERCARRIAGE)

4шт.
