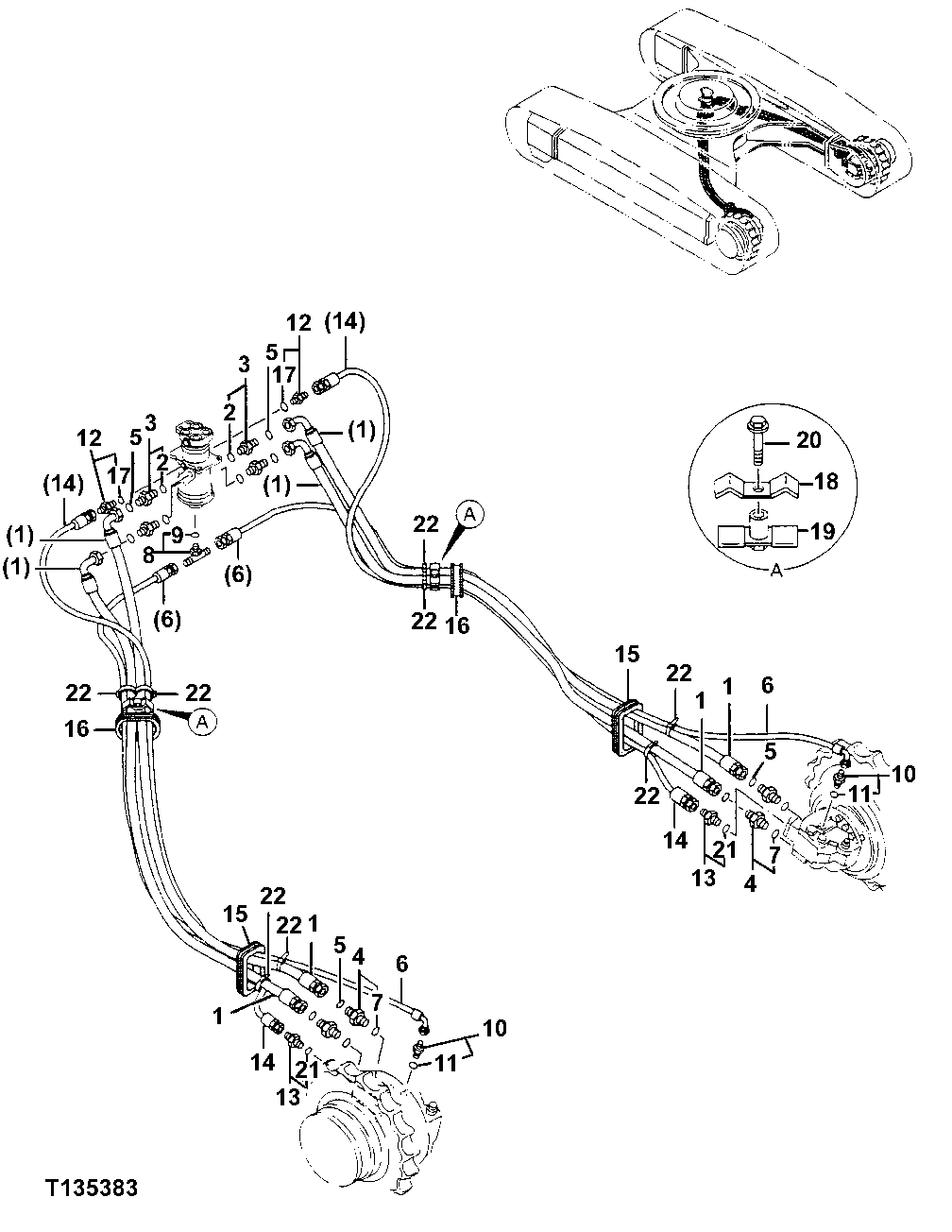

Запчасти John Deere 330LC, 370 12 - TRAVEL PIPINGS 0260 HYDRAULIC SYSTEM

1

FFSB108432

Hydraulic Hose

(8 FT 10 INCH GAUGE HI GH WIDE UNDERCARRIAGE)

4шт.

FFSB102061

Hydraulic Hose

(9 FT 7 INCH AND 10 FT 2 IN CH HIGH WIDE UNDERCARRIAGE)

4шт.

2

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

3

4189601

Adapter Fitting

(SUB FOR AT107394)

4шт.

4

4272493

Adapter Fitting

(SUB FOR AT204774)

4шт.

5

T78313

O-Ring

32.920 X 3.530 mm

8шт.

6

FFSB108434

Hydraulic Hose

(8 FT 20 INCH GAUGE HI GH WIDE UNDERCARRIAGE)

2шт.

FFSB102059

Hydraulic Hose

(9 FT 7 INCH AND 10 FT 2 INCH GAUGE HIGH WIDE UNDERCARRIAGE)

2шт.

7

970860

O-Ring

37.700 X 3.500 mm (SUB FOR TH104634)

1шт.

8

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

9

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

10

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

2шт.

11

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

12

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

13

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

14

FFSB108433

Hydraulic Hose

(DRAIN) (8 FT 10 INCH GAUG E HIGH WIDE UNDERCARRIAGE)

2шт.

FFSB102060

Hydraulic Hose

(DRAIN) (9 FT 7 INCH AND 10 FT 2 INCH HIGH WIDE UNDERCARRIAGE)

2шт.

15

4380020

Grommet

(SUB FOR AT250021)

2шт.

16

4272436

Bushing

(SUB FOR AT201009)

2шт.

17

M800650

Packing

1шт.

18

4202103

Clamp

(SUB FOR TH108302)

2шт.

19

9736782

Clamp

(SUB FOR AT201191)

2шт.

20

19M8348

Cap Screw

M12 X 65

2шт.

12H301

Lock Washer

1/2"

2шт.

21

M800650

Packing

1шт.

22

H77698

Tie Band

8шт.
