7 - EXTREME DUTY SWIVEL GUARD

Запчасти John Deere 330LC, 370 7 - EXTREME DUTY SWIVEL GUARD 0131A Track Frames

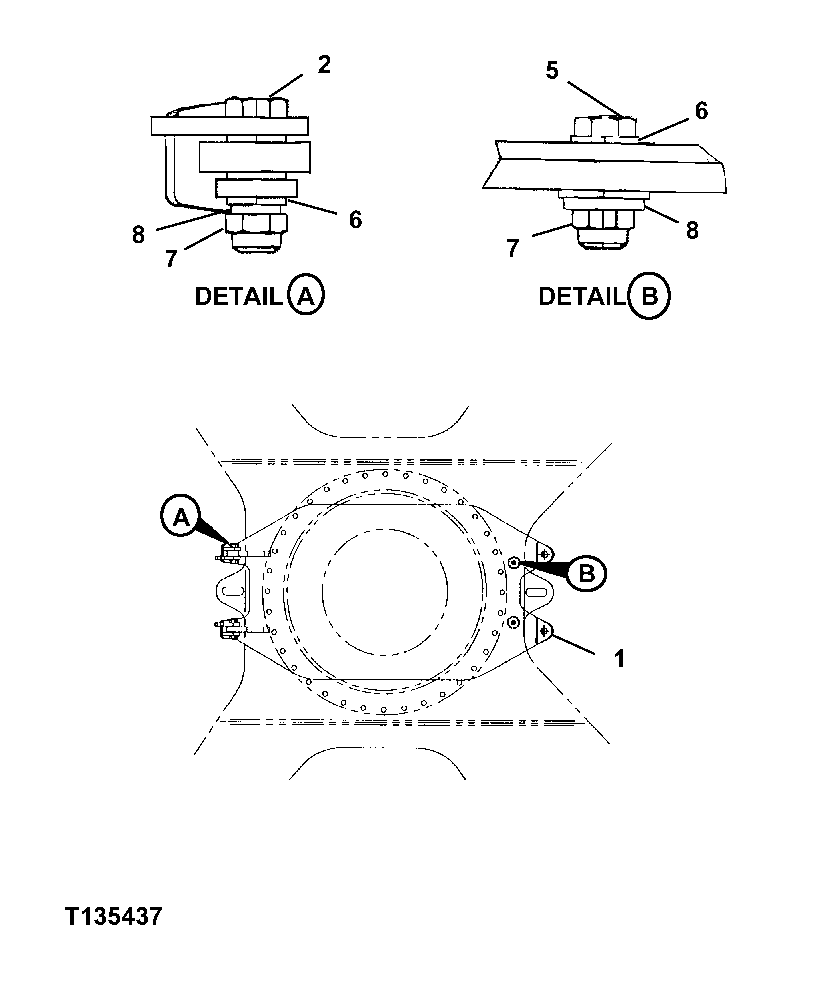

Схема запчастей John Deere 330LC, 370 - 7 - EXTREME DUTY SWIVEL GUARD 0131A Track Frames
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB100087

Cover

(HIGH WIDE UNDERCARRIAGE APPLICATION)

1шт.

FFSB100108

Cover

(STANDARD UNDERCARRIAGE APPLICATION)

1шт.

FFSB108811

Guard

(STANDARD UNDERCARRIAGE APPLICATION)

1шт.

2

19M7903

Cap Screw

M24 X 120 (SUB FOR FFSB108804)

2шт.

5

19M8288

Cap Screw

M24 X 90 (SUB FOR FFSB106499)

2шт.

6

24M7052

Washer

25 X 44 X 4 mm (SUB FOR FFSB107408)

10шт.

7

14M7278

Nut

M24 (SUB FOR FFSB108807)

4шт.

8

12H234

Lock Washer

1" (SUB FOR FFSB108806)

4шт.
