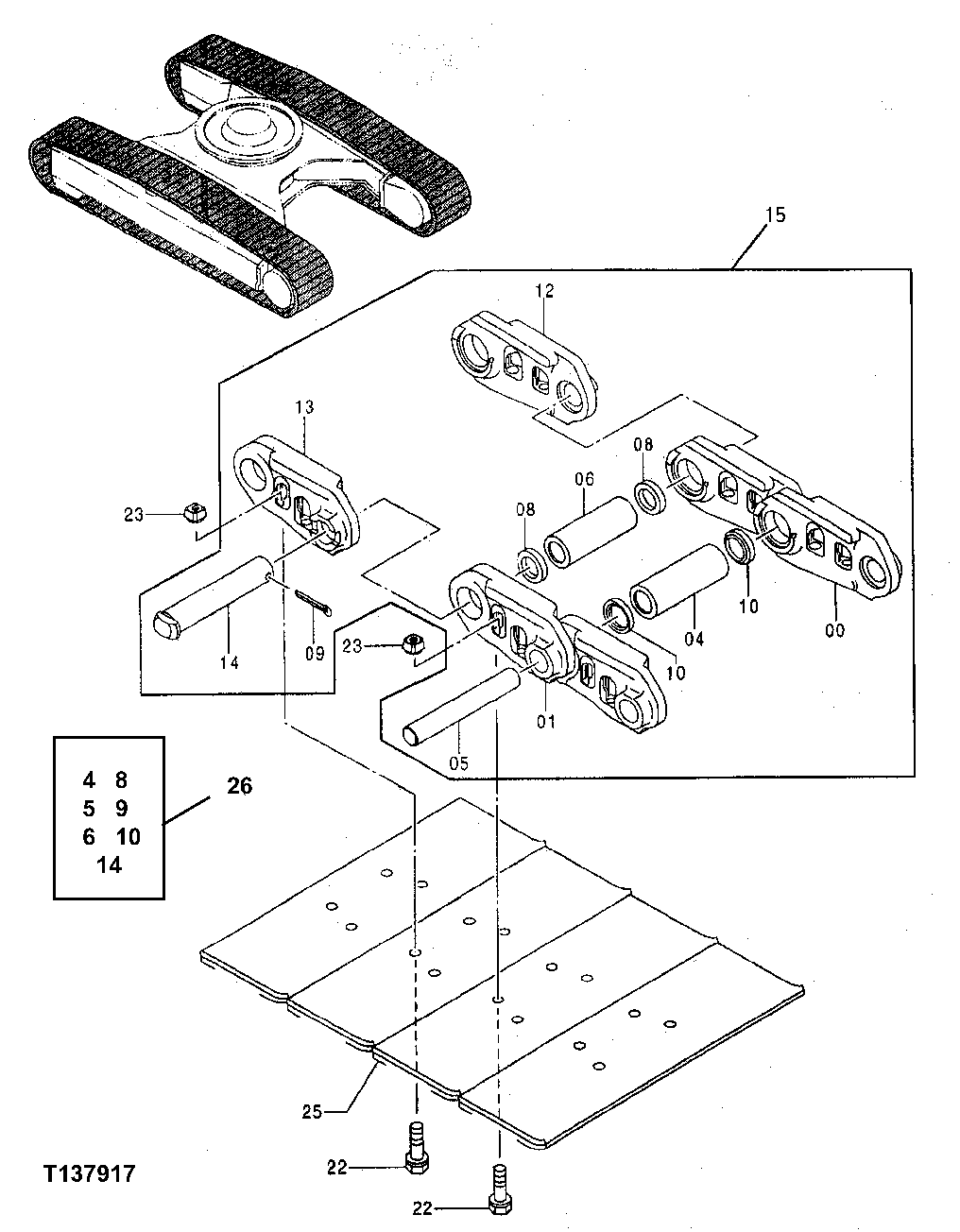

Запчасти John Deere 330LC, 370 4 - TRACK LINK AND DOUBLE BAR SHOE 0130A Track Systems

0

4328027

Track Link

(SUB FOR AT201777)

48шт.

1

4328028

Track Link

(SUB FOR AT201778)

48шт.

4

4328031

Bushing

(K) (SUB FOR AT201781)

48шт.

5

AT132153

Pin

(K)

48шт.

6

AT132505

Bushing

(K)

1шт.

8

4328032

Seal

(K) (SUB FOR AT201782)

2шт.

9

11H259

Cotter Pin

(K) 3/8" X 3-1/2"

1шт.

10

AT132527

Seal

(K)

96шт.

12

4342893

Master Track LINK-RH

(SUB FOR AT201779)

1шт.

13

4342894

Master Track LINK-LH

(SUB FOR AT201780)

1шт.

14

4342895

Master Track Pin

(K) (SUB FOR AT202240)

1шт.

15

9133225

Track Chain W/O Shoes

(SUB FOR AT250247)(QUANTI TY OF 1 EACH SIDE OF UNIT)

1шт.

22

FFSB108040

Bolt

(EACH SIDE OF UNIT)

196шт.

23

FFSB108041

Nut

(EACH SIDE OF UNIT)

196шт.

25

FFSB108038

Double Bar Shoe

(700G) (EACH SIDE OF UNIT)

49шт.

26

Bushing Kit

(INCLUDES ALL (K) PARTS) ( AT170096 NLA)

1шт.
