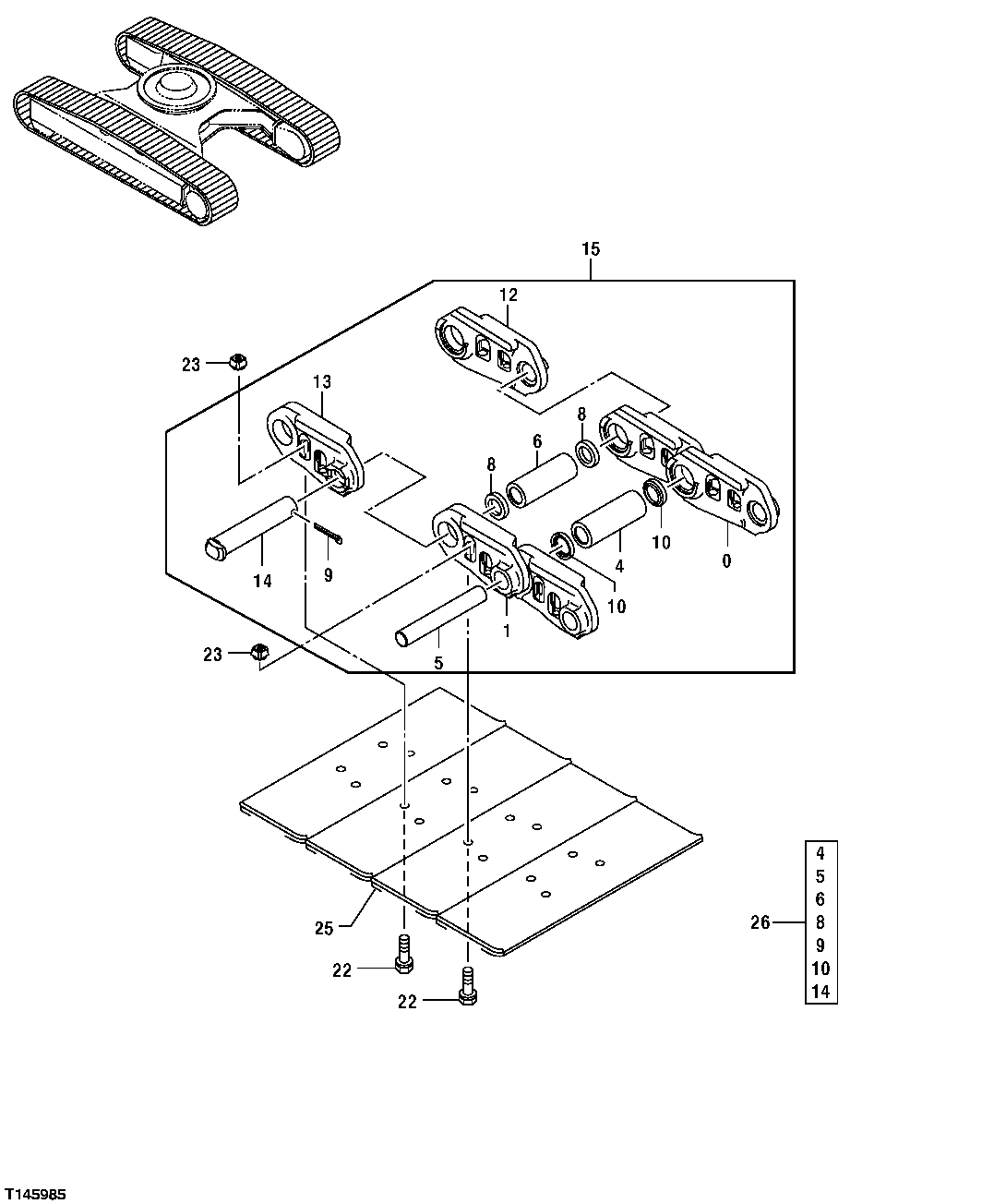

Запчасти John Deere 330LC, 370 3 - TRACK LINK AND TRIPLE BAR SHOE 0130A Track Systems

0

4328027

Track Link

(SUB FOR AT201777)

48шт.

1

4328028

Track Link

(SUB FOR AT201778)

48шт.

4

4328031

Bushing

(K) (SUB FOR AT201781)

48шт.

5

AT132153

Pin

(K)

48шт.

6

AT132505

Bushing

(K)

1шт.

8

4328032

Seal

(K) (SUB FOR AT201782)

2шт.

9

11H259

Cotter Pin

(K) 3/8" X 3-1/2"

1шт.

10

AT132527

Seal

(K)

96шт.

12

4342893

Master Track LINK-RH

(SUB FOR AT201779)

1шт.

13

4342894

Master Track LINK-LH

(SUB FOR AT201780)

1шт.

14

4342895

Master Track Pin

(K) (SUB FOR AT202240)

1шт.

15

9133225

Track Chain W/O Shoes

(SUB FOR AT250247)(QUANTI TY OF 1 EACH SIDE OF UNIT)

1шт.

22

4328034

Bolt

M24 X 72 (SUB FOR AT201 783)(EACH SIDE OF UNIT)

196шт.

23

4328035

Nut

(SUB FOR AT201784)(EACH SIDE OF UNIT)

196шт.

25

FFSB109354

Open Center 3 Bar Shoe

(700G) (EACH SIDE OF UNIT)

49шт.

26

Bushing Kit

(INCLUDES ALL (K) PARTS) ( AT170096 NLA)

1шт.
