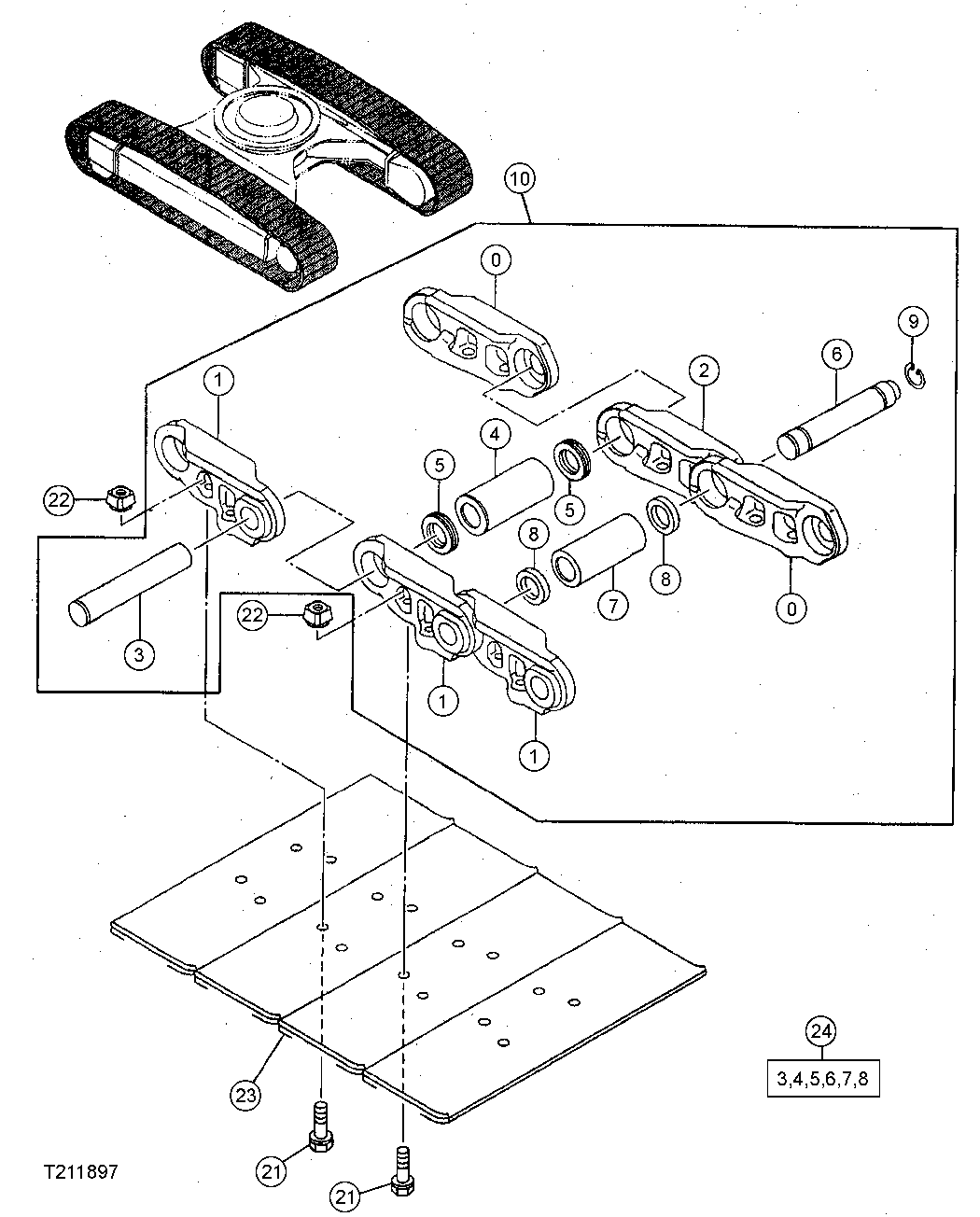

Запчасти John Deere 330LC, 370 2 - TRACK LINK AND DOUBLE BAR SHOE 0130A Track Systems

0

T210798

Track Link

(SUB FOR 0004076 ) (SUB FOR AT219498 OR 0002690)

47шт.

1

T210799

Track Link

(SUB FOR 0004077 ) (SUB FOR AT219499 OR 0002691)

48шт.

2

4632763R

Master Track Link

(SUB FOR 4456824, AT250 017, 4378890 OR T210806)

1шт.

3

FFSB112368

Pin Fastener

(K) (SUB FOR 4378891, AT250018)

47шт.

4

T210808

Track Bushing

(K) (SUB FOR 3077928 ) (SUB FOR AT219620)

47шт.

5

FFSB112367

Seal

(K) (SUB FOR 4378892 ) (SUB FOR AT250019)

94шт.

6

T210811

Master Track Pin

(K) (SUB FOR 3077929 ) (SUB FOR AT219621)

1шт.

7

T210809

Master Track Bushing

(K) (SUB FOR 3077930 ) (SUB FOR AT219622)

1шт.

8

FFSB112370

Spacer

(K) (SUB FOR 4378893 ) (SUB FOR AT250020)

2шт.

9

T210813

Snap Ring

(SUB FOR TH111227)

1шт.

T238670

Snap Ring

(USE WITH 4632763R)

1шт.

10

9251026R

Track Chain W/O Shoes

(SUB FOR AT250256 OR 9167840 ) (SUB FOR 9202852 OR AT314410)( QUANTITY OF 1 EACH SIDE OF UNIT )

2шт.

21

FFSB108001

Bolt

(EACH SIDE OF UNIT)

192шт.

22

FFSB108002

Nut

(EACH SIDE OF UNIT)

192шт.

23

FFSB108000

Double Bar Shoe

(700G) (EACH SIDE OF UNIT)

48шт.

24

AT184109

Bushing Kit

INCLUDES ALL (K) PARTS (PIN AND BUSHING)

1шт.
