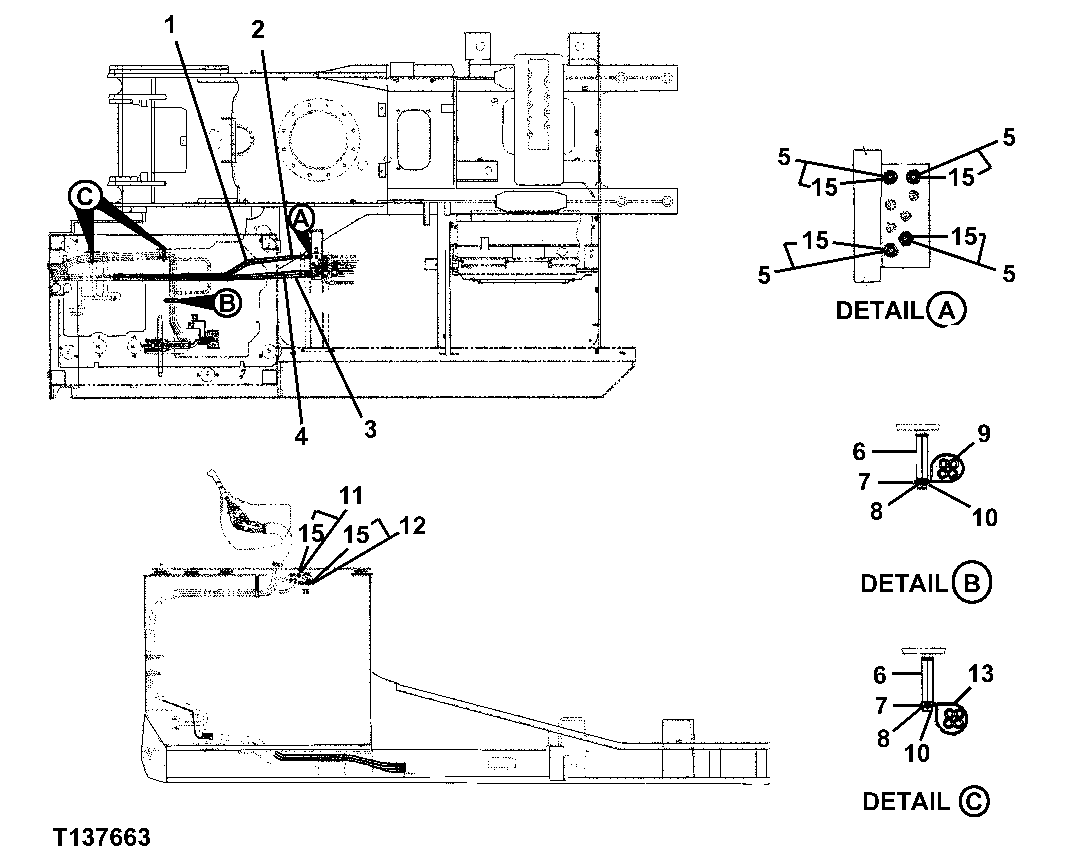

Запчасти John Deere 330LC, 370 186 - Left Joystick Pilot Piping For Roadbuilder With 48 Inch Riser And Heeler 3360D Hydraulic System (Roadbuilder Cab)

1

FFSB108530

Hydraulic Hose

1шт.

2

FFSB108526

Hydraulic Hose

1шт.

3

FFSB108527

Hydraulic Hose

1шт.

4

FFSB108533

Hydraulic Hose

1шт.

5

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

6

FFSB107369

Nut

3шт.

7

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

9шт.

8

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

3шт.

9

R89288

Clamp

( FFSB105282 NO LONGER AVAILABLE)

1шт.

10

19M8584

Cap Screw

M10 X 30 (SUB FOR FFSB105231)

3шт.

11

4261938

Fitting

(SUB FOR AT154285)

1шт.

12

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

13

F026126

Hose Support

(SUB FOR FFSB105404)

2шт.

15

CH11570

O-Ring

13.800 X 2.400 mm

1шт.
