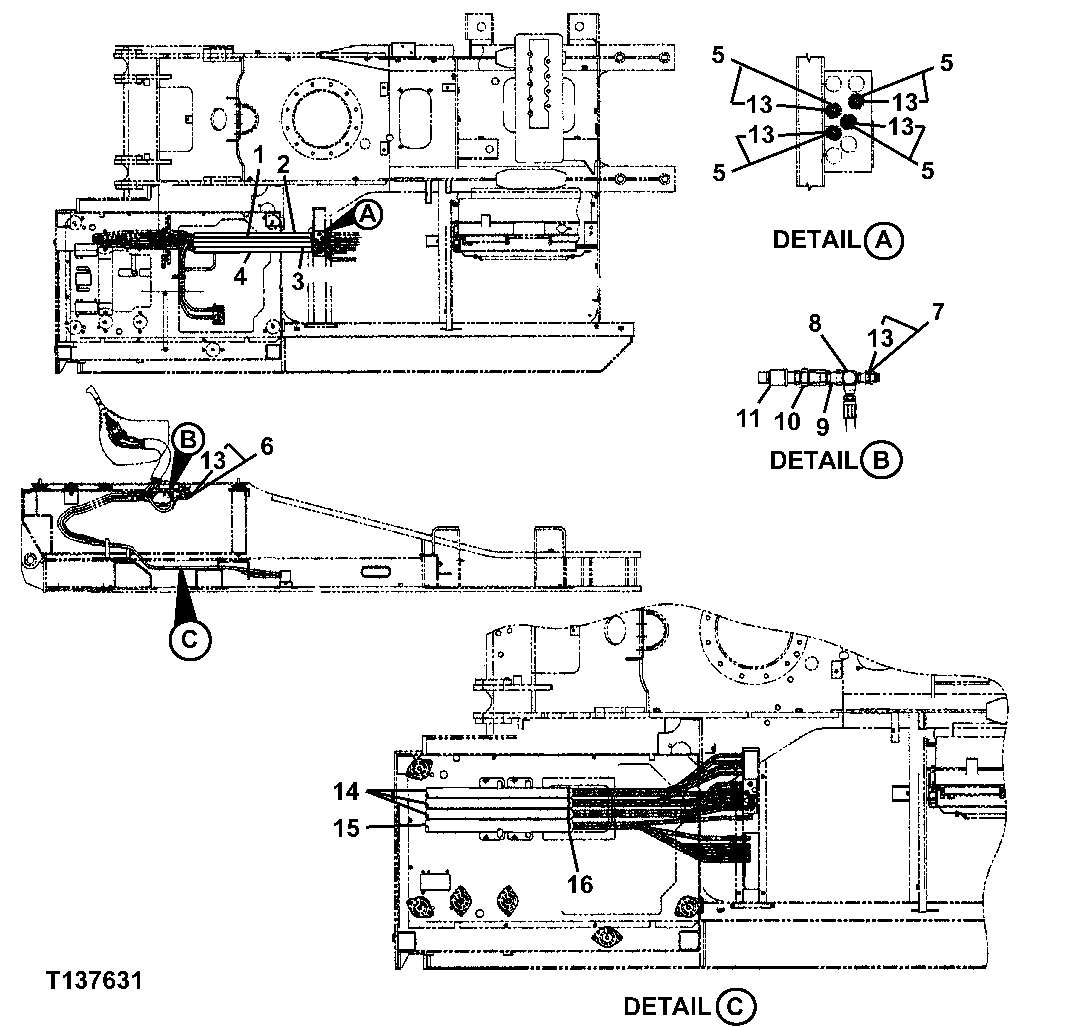

Запчасти John Deere 330LC, 370 182 - ROADBUILDER WITH 18 INCH RISER RIGHT JOYSTICK PIPING 3360D Hydraulic System (Roadbuilder Cab)

1

FFSB108466

Hydraulic Hose

1шт.

2

FFSB108468

Hydraulic Hose

1шт.

3

FFSB108465

Hydraulic Hose

1шт.

4

FFSB108469

Hydraulic Hose

1шт.

5

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

6

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

7

4261938

Fitting

(SUB FOR AT154285)

1шт.

8

AT36921

Tee Fitting

1шт.

9

FFSB102173

Adapter Fitting

1шт.

10

FFSB102268

Adapter Fitting

1шт.

11

4254563

Pressure Switch

(SUB FOR AT154212)

1шт.

13

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

14

XAS-B-58

Hose Guard

(SUB FOR FFSB108515)

3шт.

15

XAS-B-58

Hose Guard

(SUB FOR FFSB108516)

1шт.

16

MT765

Tie Band

(SUB FOR FFSB107307)

8шт.
