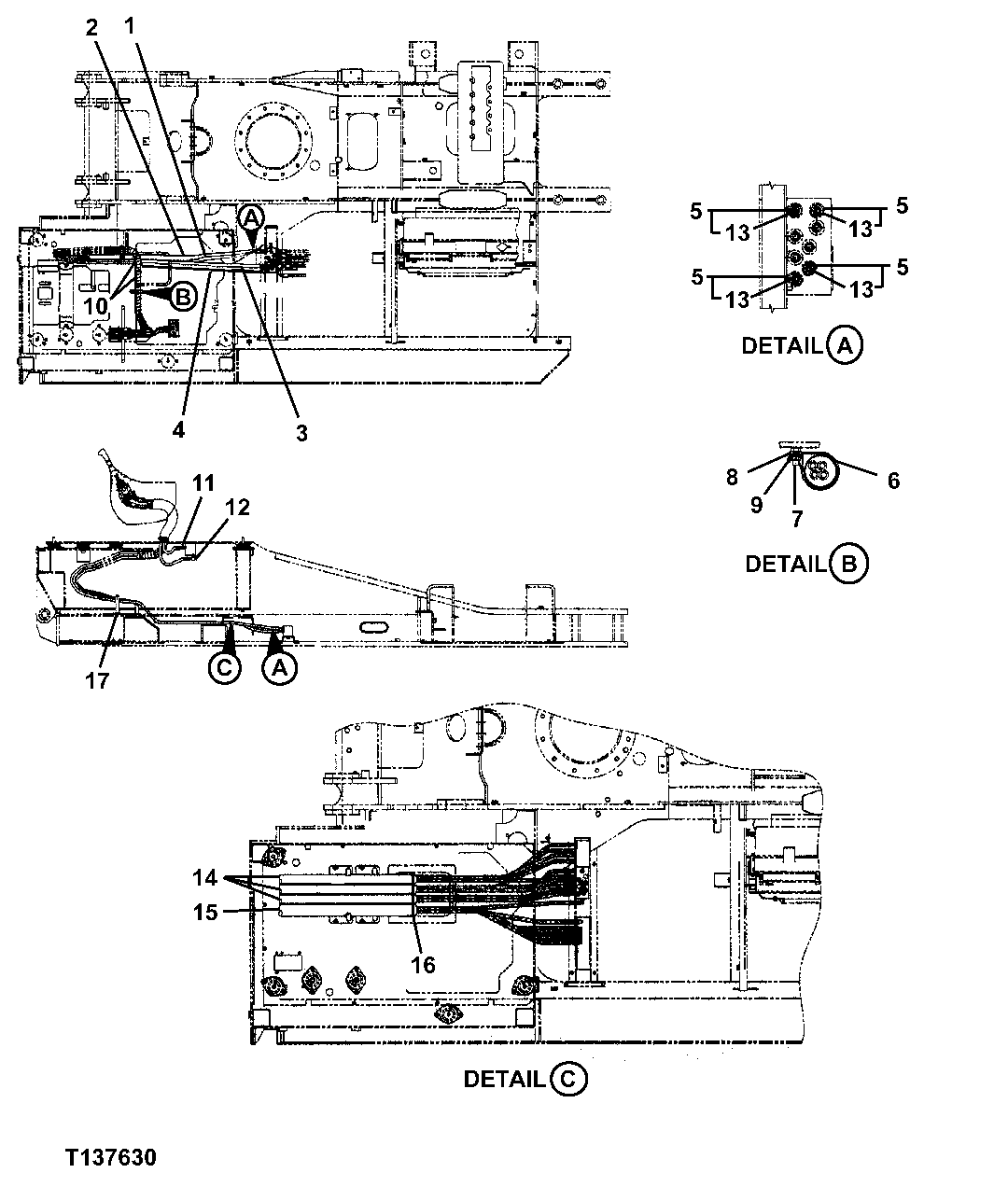

Запчасти John Deere 330LC, 370 181 - ROADBUILDER WITH 18 INCH RISER LEFT JOYSTICK PIPING 3360D Hydraulic System (Roadbuilder Cab)

1

FFSB108467

Hydraulic Hose

1шт.

2

FFSB108463

Hydraulic Hose

1шт.

3

FFSB108464

Hydraulic Hose

1шт.

4

FFSB108470

Hydraulic Hose

1шт.

5

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

6

T118385

Clamp

(SUB FOR FFSB105441)

1шт.

7

14M7274

Nut

M10 (SUB FOR FFSB107411)

1шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

1шт.

9

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

1шт.

10

XHG-075

Hose Guard

(SUB FOR FFSB108479)

2шт.

11

4261938

Fitting

(SUB FOR AT154285)

1шт.

12

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

13

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

14

XAS-B-58

Hose Guard

(SUB FOR FFSB108515)

3шт.

15

XAS-B-58

Hose Guard

(SUB FOR FFSB108516)

1шт.

16

MT765

Tie Band

(SUB FOR FFSB107307)

8шт.

17

FFSB108512

Tie Band

1шт.
