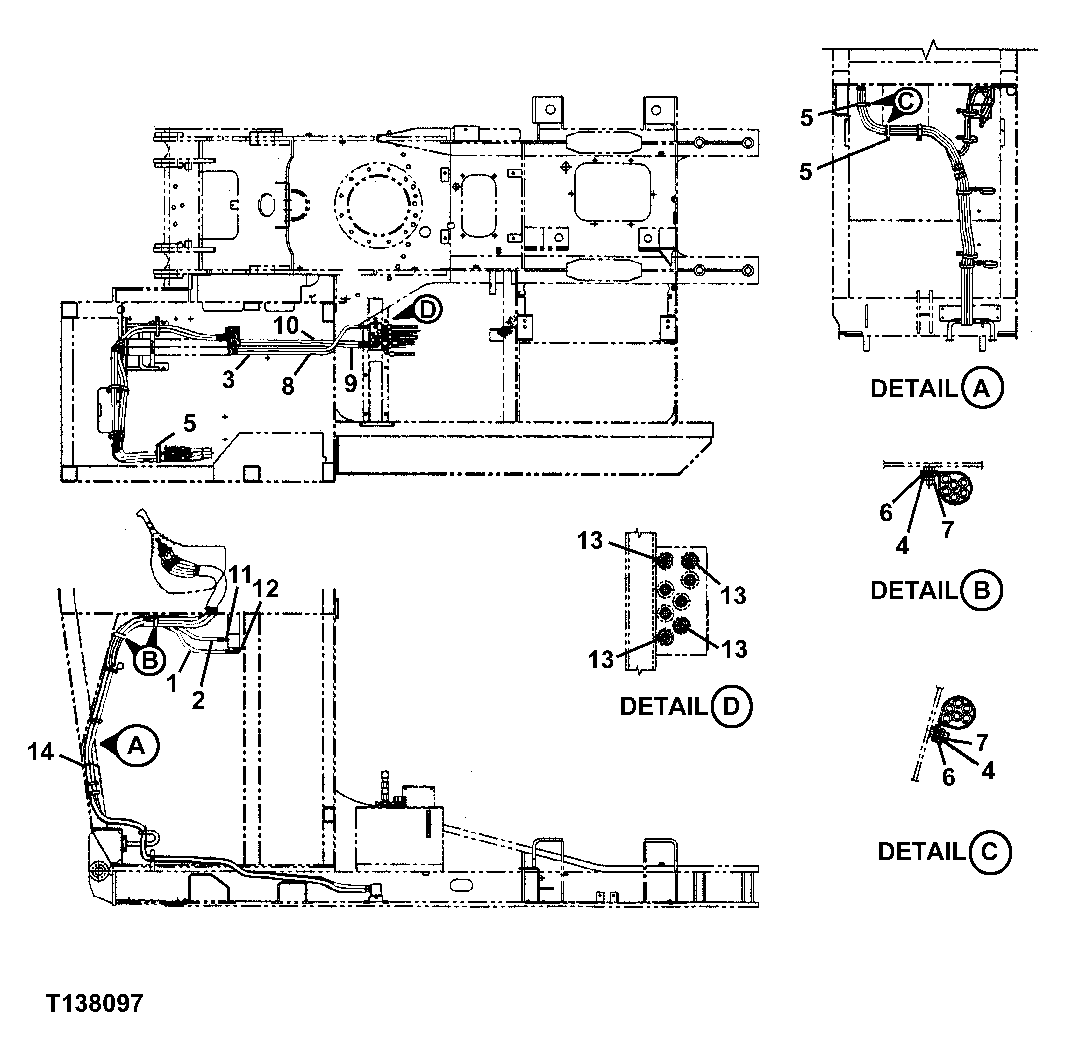

Запчасти John Deere 330LC, 370 174 - Pilot Piping To Left Joystick For Rear Entry Cab (Heeler) 3360B Hydraulic System (Rear Entry Cab)

1

FFSB107635

Hydraulic Hose

1шт.

2

FFSB107636

Hydraulic Hose

1шт.

3

FFSB107637

Hydraulic Hose

1шт.

4

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

3шт.

5

F026126

Hose Support

(SUB FOR FFSB105404)

3шт.

6

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

6шт.

7

14M7274

Nut

M10 (SUB FOR FFSB107411)

3шт.

8

FFSB107641

Hydraulic Hose

1шт.

9

FFSB107642

Hydraulic Hose

1шт.

10

FFSB107643

Hydraulic Hose

1шт.

11

4261938

Fitting

(SUB FOR AT154285)

1шт.

12

4154671

Elbow Fitting

(SUB FOR TH101047)

1шт.

13

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

14

R44302

Tie Band

10шт.
