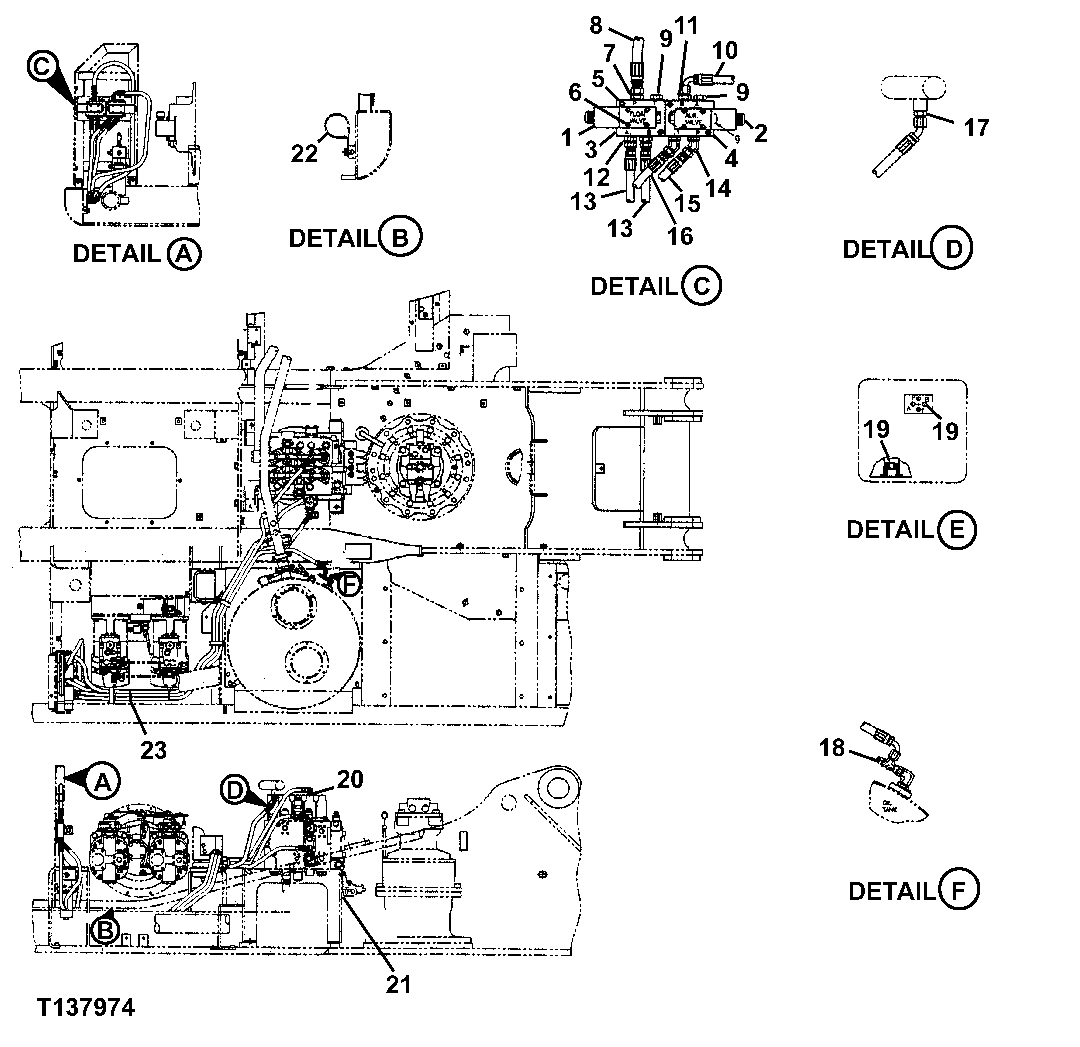

Запчасти John Deere 330LC, 370 170 - Auxiliary And Rotate Butt-N-Top For Entry Cab (Heeler) 3360B Hydraulic System (Rear Entry Cab)

1

FFSB103786

Check Valve

1шт.

2

FFSB102545

Solenoid Valve

1шт.

3

FFSB103785

Plate

1шт.

4

FFSB102547

Plate

1шт.

5

19H3371

Cap Screw

1/4" X 1-3/4" (SUB FOR FFSB105769)

4шт.

6

19H3070

Screw

0.190" X 1-1/4" ( FFSB10 2861 NO LONGER AVAILABLE)

8шт.

7

R27237

Fitting

1шт.

8

FFSB102558

Hydraulic Hose

1шт.

9

AT63271

Fitting

2шт.

10

FFSB102554

Hydraulic Hose

1шт.

11

R36426

Fitting

1шт.

12

38H1171

Adapter Fitting

2шт.

13

FFSB102557

Hydraulic Hose

2шт.

14

AN113929

Elbow Fitting

2шт.

15

FFSB102555

Hydraulic Hose

1шт.

16

FFSB102556

Hydraulic Hose

1шт.

17

4190243

Adapter Fitting

(SUB FOR TH106151)

1шт.

18

AT36921

Tee Fitting

(SUB FOR FFSB104940)

1шт.

19

FFSB106319

Orifice

1шт.

20

X6-6C4OMXS

Elbow Fitting

(SUB FOR FFSB104942)

1шт.

21

4190244

Elbow Fitting

(SUB FOR TH106152)

1шт.

22

T118385

Clamp

(SUB FOR FFSB105441)

3шт.

23

R44302

Tie Band

4шт.
