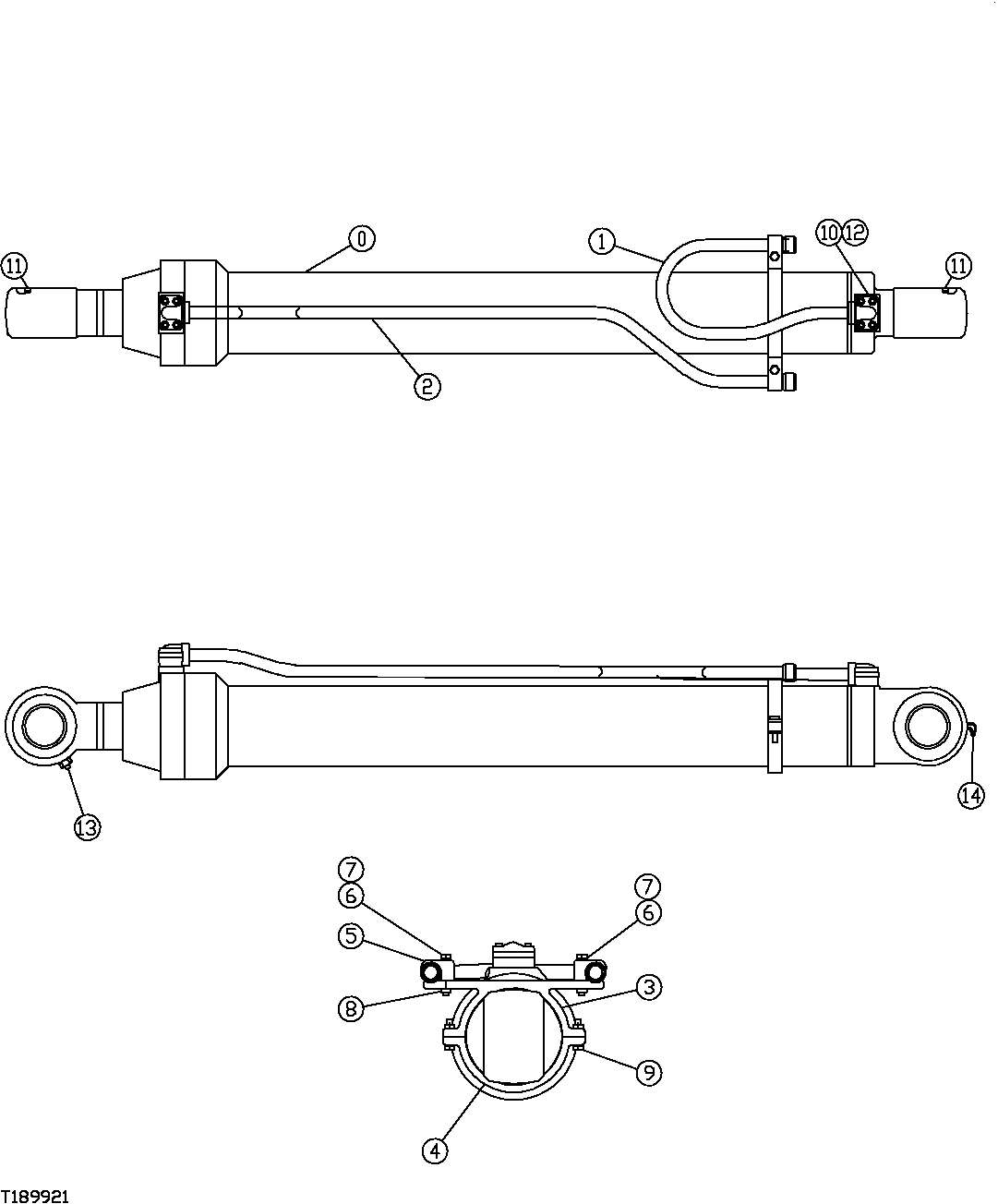

Запчасти John Deere 330LC, 370 164 - LOG LOADER ARM CYLINDER OIL LINES (SERIAL# 088029-088032) 3360A Hydraulic System

1

FFSB102086

Oil Line

1шт.

2

FFSB102087

Oil Line

1шт.

3

FFSB102088

Clamp

1шт.

4

FFSB102089

Clamp

1шт.

5

4190127

Clamp

1шт.

6

19H2805

Cap Screw

1/2" X 3-1/4"

2шт.

7

12H301

Lock Washer

1/2"

2шт.

8

Wing Nut

( R73935 NOT AVAILABLE)

2шт.

9

19H1930

Cap Screw

1/2" X 2-1/2"

2шт.

10

19M6619

Screw

M14 X 70

8шт.

11

AT201578

Ring

2шт.

12

AT264254

O-Ring

2шт.

13

JD7769

Lubrication Fitting

(SUB FOR TH100364)

1шт.

14

FFSB103271

Lubrication Fitting

1шт.
