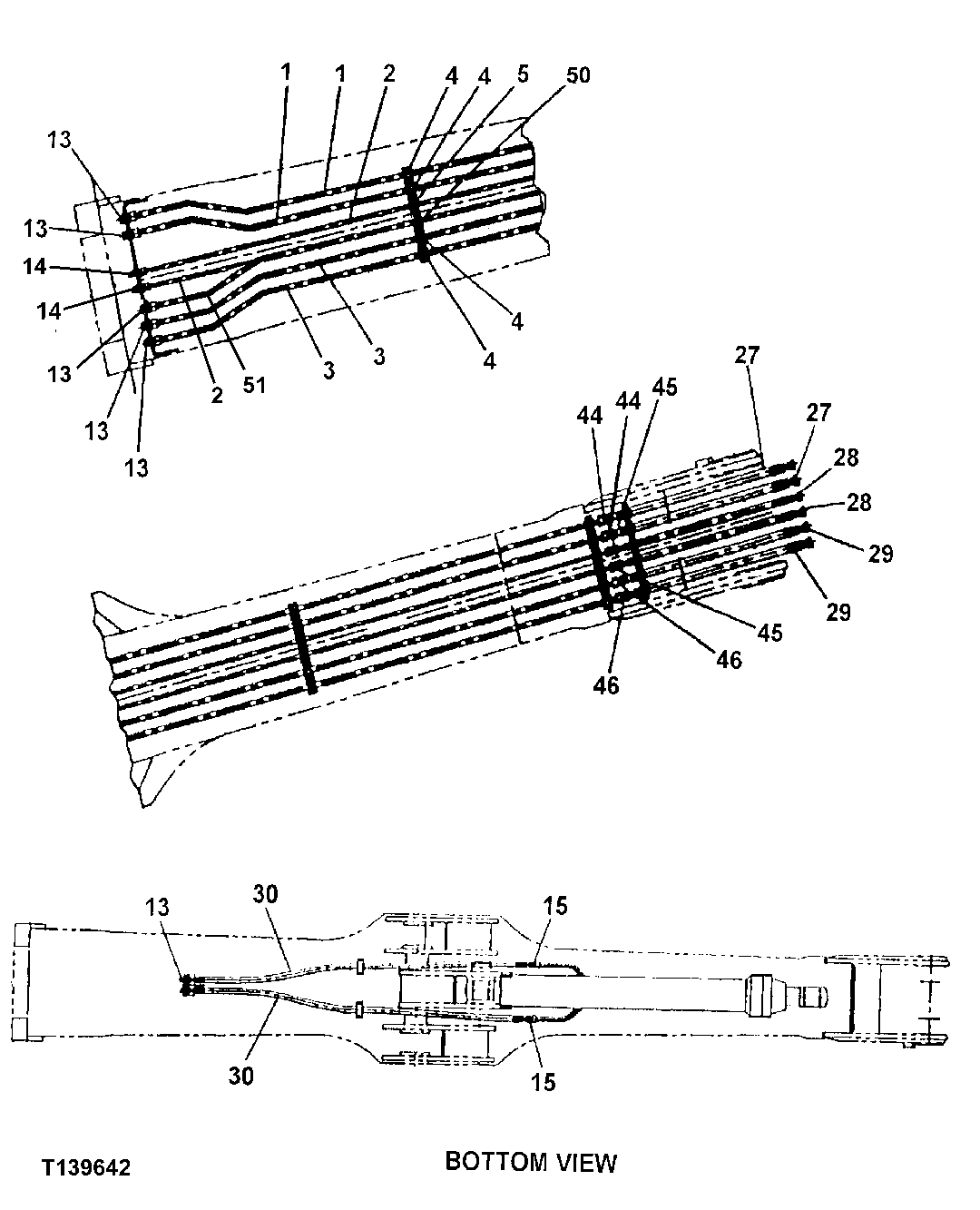

Запчасти John Deere 330LC, 370 151 - PIPINGS FOR HEELER BOOM 3344A Boom

1

FFSB100109

Oil Line

(SUB FOR FFSB100109)

2шт.

2

FFSB100110

Oil Line

(SUB FOR FFSB100110)

2шт.

3

FFSB100111

Oil Line

(SUB FOR FFSB100111)

2шт.

4

FFSB100112

Half Clamp

40шт.

19H1726

Cap Screw

3/8" X 2-1/4"

32шт.

FFSB100114

Reinforcement

16шт.

FFSB100115

Lock Nut

32шт.

5

FFSB100113

Half Clamp

16шт.

19H1726

Cap Screw

3/8" X 2-1/4"

16шт.

FFSB100114

Reinforcement

8шт.

FFSB100115

Lock Nut

16шт.

13

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

7шт.

T76938

O-Ring

23.520 X 1.780 mm

14шт.

T78715

Nut

36.525 mm

7шт.

14

38H1276

Adapter Fitting

2шт.

T77858

O-Ring

18.771 X 1.778 mm

4шт.

T78707

Nut

30.175 mm

2шт.

15

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

2шт.

27

FFSB100120

Hydraulic Hose

2шт.

28

FFSB100121

Hydraulic Hose

2шт.

29

FFSB100122

Hydraulic Hose

2шт.

30

FFSB100123

Hydraulic Hose

2шт.

44

38H1281

Union Fitting

(SUB FOR FFSB102147)

2шт.

T76938

O-Ring

23.520 X 1.780 mm

4шт.

45

38H1272

Union Fitting

(SUB FOR FFSB102148)

2шт.

T77858

O-Ring

18.771 X 1.778 mm

4шт.

46

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

3шт.

50

19H2054

Cap Screw

3/8" X 4-3/4" (SUB FOR FFSB103458)

8шт.

FFSB100113

Half Clamp

8шт.

FFSB100114

Reinforcement

8шт.

FFSB100115

Lock Nut

8шт.

51

Oil Line

( FFSB103769 NO LONGER AVAILABLE FOR SERVICE)

1шт.
