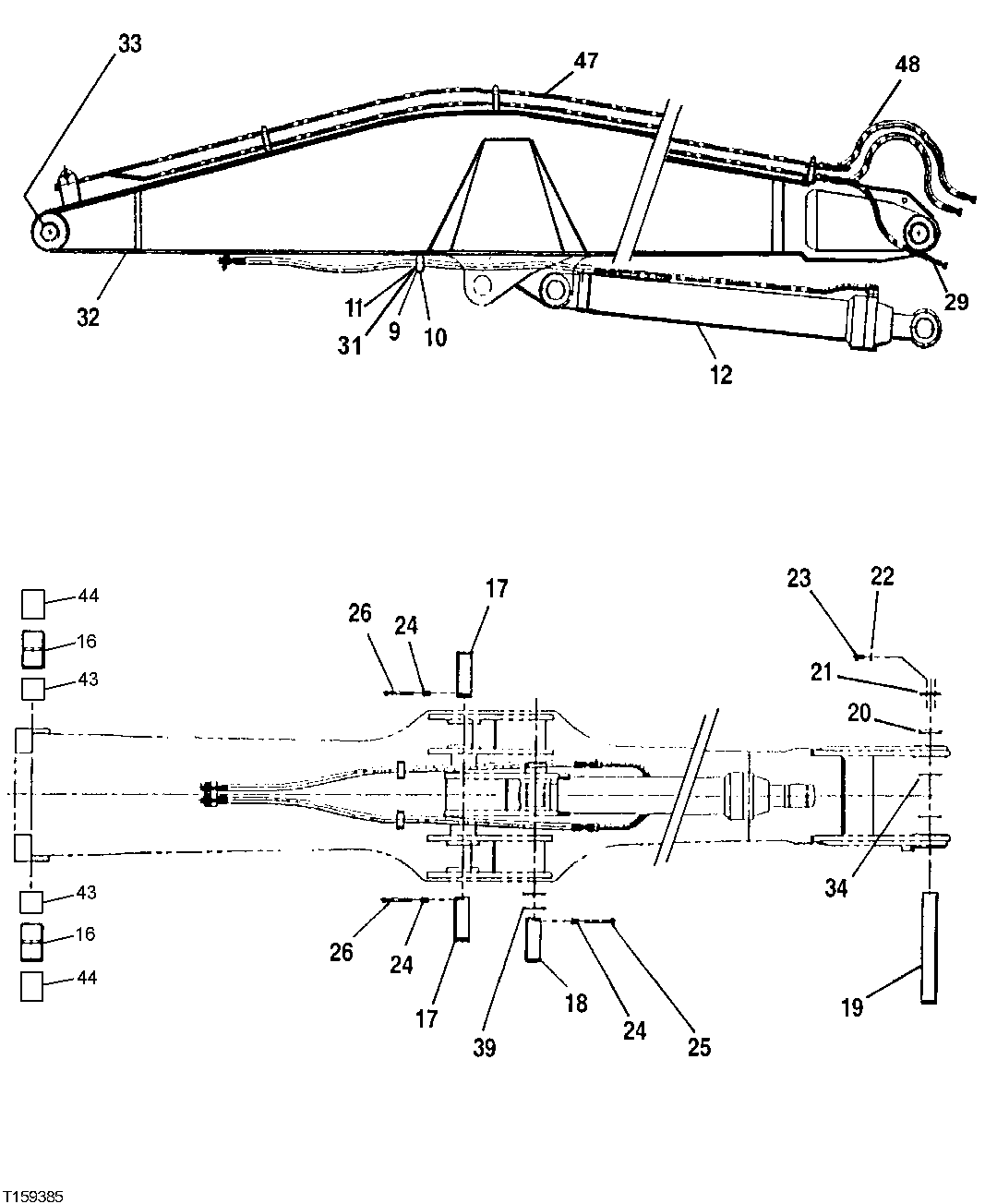

Запчасти John Deere 330LC, 370 150 - HEELER BOOM 3344A Boom

9

FFSB100116

Reinforcement

2шт.

10

19H1828

Cap Screw

7/16" X 4"

4шт.

11

FFSB100118

Half Clamp

4шт.

12

Cylinder

(ARM) (NOT AVAILABLE FOR SERVICE) (SEE ARM CYLINDER PAGE FOR DETAIL)

1шт.

16

Bushing

(FFSB300035 NO LONGER AVAILAB LE) (SUB 4443884 AND 4381855)

2шт.

4443884

Bushing

(SUB FOR FFSB112013)

2шт.

17

FFSB107220

Pin Fastener

(SUB FOR FFSB100036)

2шт.

18

FFSB107258

Pin

(SUB FOR FFSB100124)

1шт.

19

AT132098

Pin

(SUB FOR FFSH100038 ) (SUB FOR 8043311)

1шт.

20

FFSB100039

Spacer

1шт.

21

FFSB100040

Stop

1шт.

22

12M7070

Lock Washer

(SUB FOR A590920)

3шт.

23

19M7597

Cap Screw

M20 X 50 (SUB FOR J912050)

3шт.

24

14M7277

Nut

(SUB FOR J951020)

6шт.

25

19M8100

Cap Screw

(SUB FOR J912013)

1шт.

26

19M7645

Screw

(SUB FOR J912015)

2шт.

29

FFSB100122

Hydraulic Hose

2шт.

31

FFSB100117

Half Clamp

2шт.

FFSB110867

Insert

2шт.

32

FFSB100125

Grapple Boom

1шт.

33

JD7774

Lubrication Fitting

(90 DEGREE GREASE FITTING ) (SUB FOR (2) FFSB104351)

2шт.

JD7769

Lubrication Fitting

(STRAIGHT TYPE GREASE FIT TING) (SUB FOR FFSB104342)

3шт.

34

4232239R

Washer

(SUB FOR FFSH108824 OR 4232239)(1.2)

2шт.

39

4134372

Washer

(SUB FOR FFSH108825)(1.0)

2шт.

43

4381855

Bushing

(SUB FOR FFSB112014)

2шт.

44

TH103200

Seal

(SUB FOR FFSB106435)

2шт.

47

FFSH108890

Oil Line

1шт.

48

FFSB103765

Hydraulic Hose

1шт.
