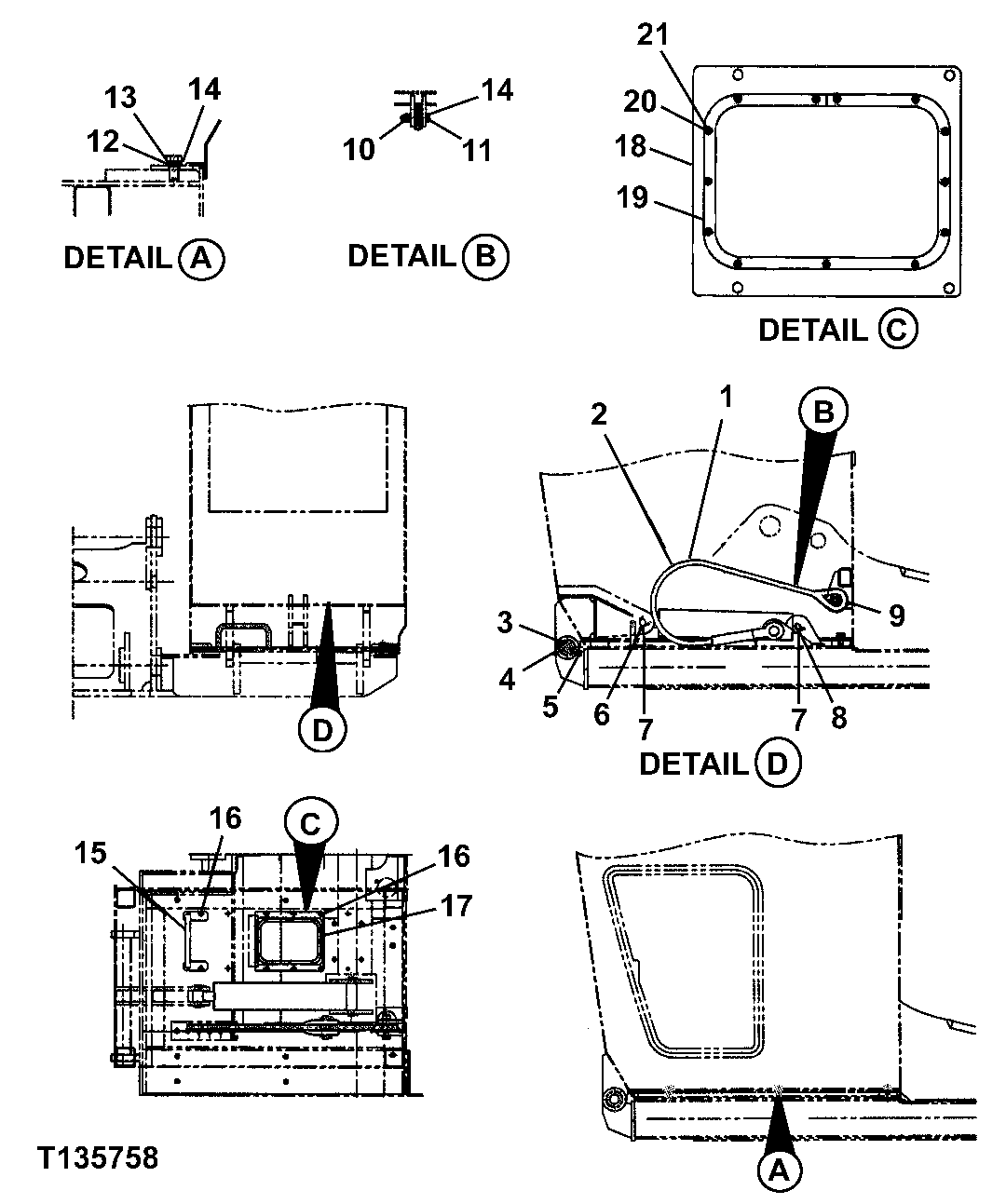

Запчасти John Deere 330LC, 370 142 - TILT CYLINDER CIRCUIT FOR UNITS WITH REAR ENTRY CAB 2163B Hydraulic Lines & Hoses (Rear Entry)

1

FFSB102281

Cylinder

1шт.

FF200027

Seal Kit

1шт.

2

FFSB104368

Cable

1шт.

3

19M7732

Cap Screw

M16 X 130

1шт.

4

FFSB104293

Pin Fastener

1шт.

5

14M7276

Nut

M16

2шт.

6

FFSB104370

Pin Fastener

1шт.

7

11M7034

Cotter Pin

5 X 63 mm

4шт.

8

FFSB104371

Pin Fastener

1шт.

9

FFSB104369

Spacer

1шт.

10

14M7413

Lock Nut

M24

1шт.

11

19M7937

Cap Screw

M24 X 140

1шт.

12

12H234

Lock Washer

1"

6шт.

13

19M7888

Cap Screw

M24 X 60

6шт.

14

24M7091

Washer

26 X 44 X 4 mm

8шт.

15

FFSB107090

Clamp

1шт.

16

19M7403

Cap Screw

M12 X 35

6шт.

12H301

Lock Washer

1/2"

6шт.

17

FFSB104825

Frame

1шт.

18

FFSB104822

Plate

1шт.

19

FFSB104824

Sealing Trim

1шт.

20

21M7033

Screw

M4 X 16

13шт.

21

14M7139

Nut

M4 (SUB FOR 14M7100)

13шт.
