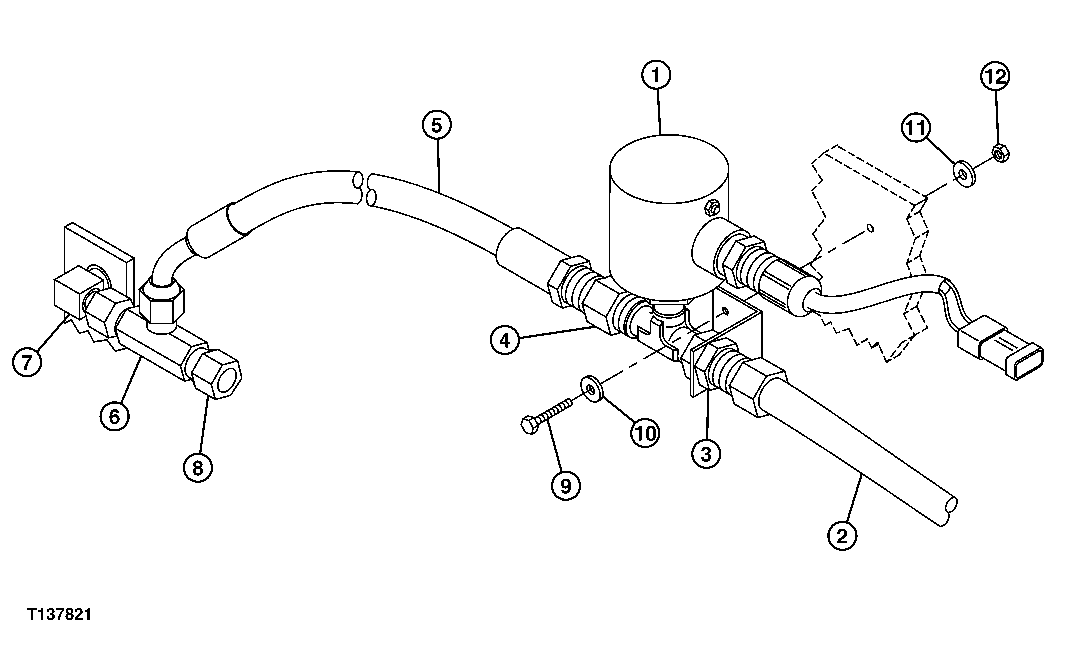

Запчасти John Deere 330LC, 370 138 - HYDRAULIC DUMP VALVE AND HOSES 2160A Vehicle Hydraulics

1

FFSB108340

Flow Control Hyd. Valve

1шт.

2

FFSB107250

Hydraulic Hose

1шт.

3

X8WFTX-S

Adapter Fitting

(SUB FOR FFSB104383)

1шт.

4

X6-6FTX-S

Adapter Fitting

(SUB FOR FFSB102171)

1шт.

5

FFSB107249

Hydraulic Hose

1шт.

6

AT36921

Tee Fitting

(SUB FOR FFSB104940)

1шт.

7

X6C4OMXS

Elbow Fitting

(SUB FOR FFSB106596)

1шт.

8

X6-4TRTX-S

Reducer

( FFSB107248 NOT AVAILABLE FOR SERVICE)

1шт.

9

19M7933

Cap Screw

M6 X 25 (SUB FOR FFSB108287, 19M7286)

2шт.

10

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

2шт.

11

12M7006

Lock Washer

6 mm (SUB FOR FFSB107439)

2шт.

12

14M7303

Flange Nut

M6 (SUB FOR FFSB108288)

2шт.
