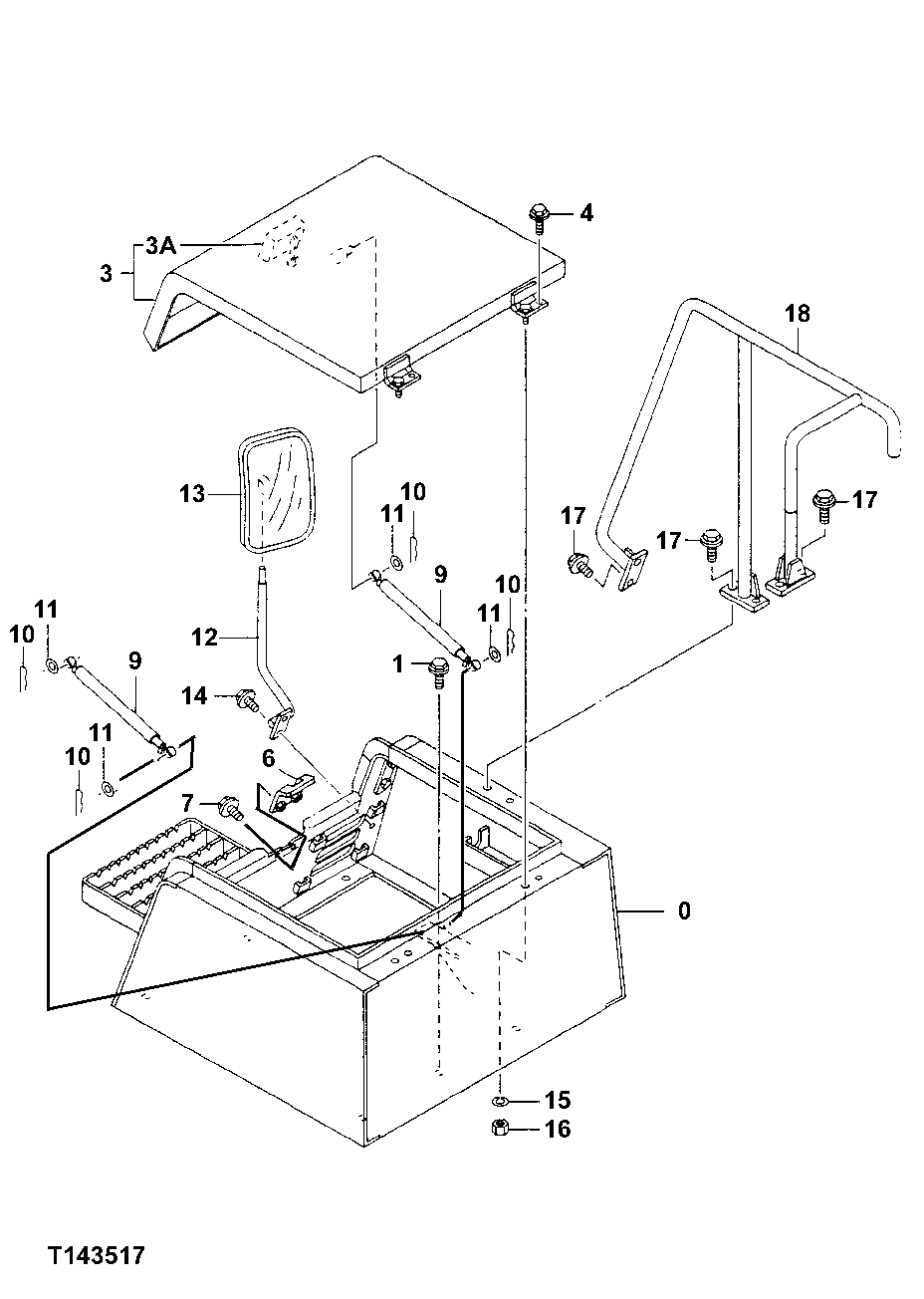

Запчасти John Deere 330LC, 370 135 - TOOL BOX COVER 1910A Hood Or Engine Enclosure

0

FFSB108145

Toolbox

1шт.

1

12M7066

Lock Washer

10 mm

6шт.

19M7402

Cap Screw

M10 X 25

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

3

FFSB107792

Cover

1шт.

3A

4363915

Latch

(SUB FOR AT215944)

1шт.

4

19M8761

Screw

M10 X 22

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

6

9745798

Catch

(SUB FOR AT214409)

1шт.

7

19M7402

Cap Screw

M10 X 25

202шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

9

4352457

Cylinder

(SUB FOR AT213967)

2шт.

10

H132922

Cotter Pin

4шт.

11

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12

4420724

Rear View Mirror

(SUB FOR AT250239)

1шт.

13

4420724

Rear View Mirror

(SUB FOR TH104119)

1шт.

14

19M7407

Cap Screw

M8 X 25

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

15

12M7066

Lock Washer

10 mm

2шт.

16

14M7274

Nut

M10

2шт.

17

19M8011

Cap Screw

M12 X 30

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

18

7035338J

Handrail

(SUB FOR AT250195 OR 7035338)

1шт.
