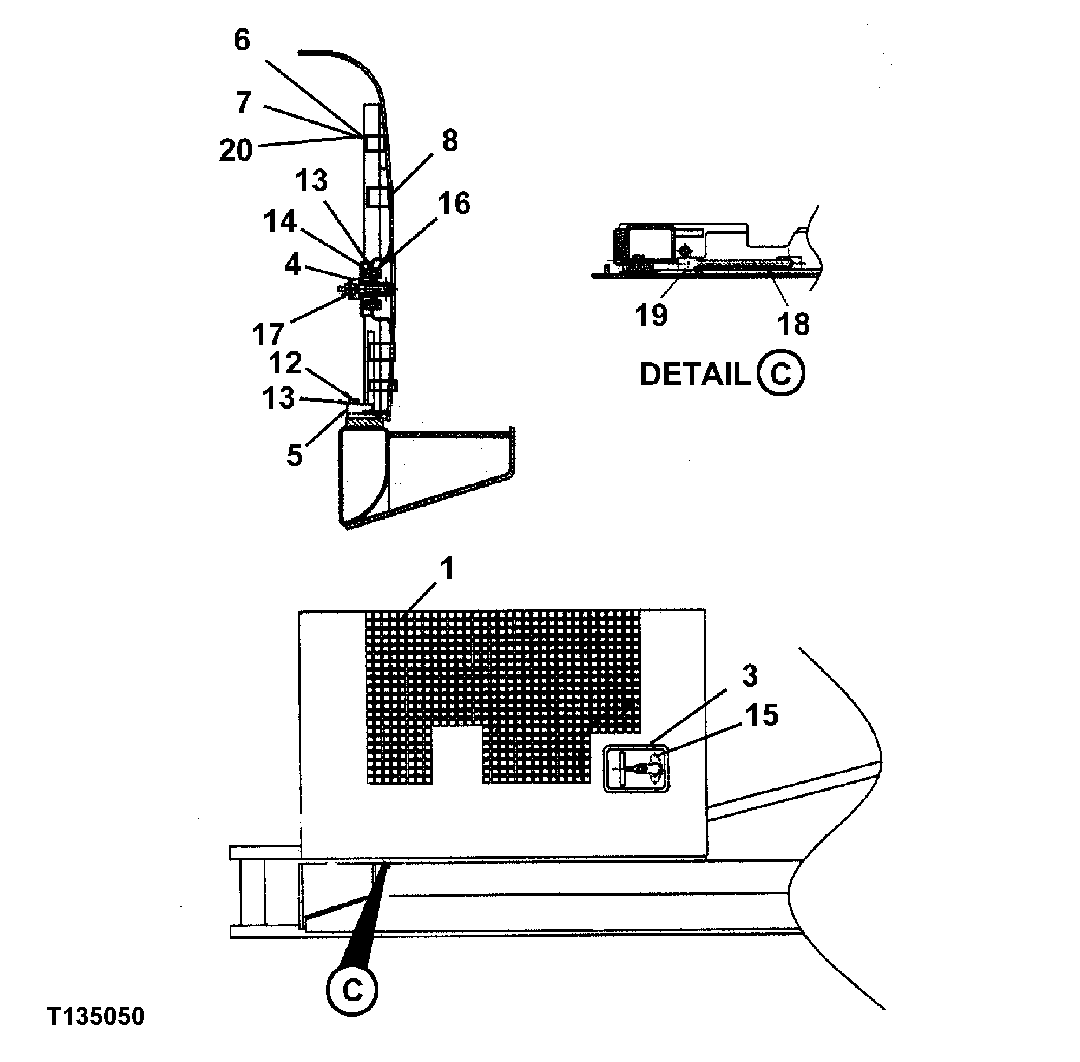

Запчасти John Deere 330LC, 370 131 - RIGHT SIDE GUARDING FOR UNITS WITHOUT EXTENDED CAPACITY FUEL TANK 1910A Hood Or Engine Enclosure

1

FFSB106524

Guard

1шт.

3

FFSB106270

Latch

1шт.

4

FFSB111739

Cam

(SUB FOR FFSB106271)

1шт.

5

FFSB102907

Plate

1шт.

6

24M7047

Washer

13 X 24 X 2.500 mm

5шт.

7

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

8

19M7872

Cap Screw

M12 X 25

2шт.

12

19M7662

Cap Screw

M10 X 30

2шт.

13

12M7066

Lock Washer

10 mm

4шт.

14

14M7274

Nut

M10

2шт.

15

19M7167

Cap Screw

M10 X 25

2шт.

16

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

17

14M7141

Nut

M14

2шт.

18

FFSB108263

Latch

1шт.

19

11M7017

Cotter Pin

3.200 X 32 mm

1шт.

20

19M8017

Cap Screw

M12 X 20

2шт.
