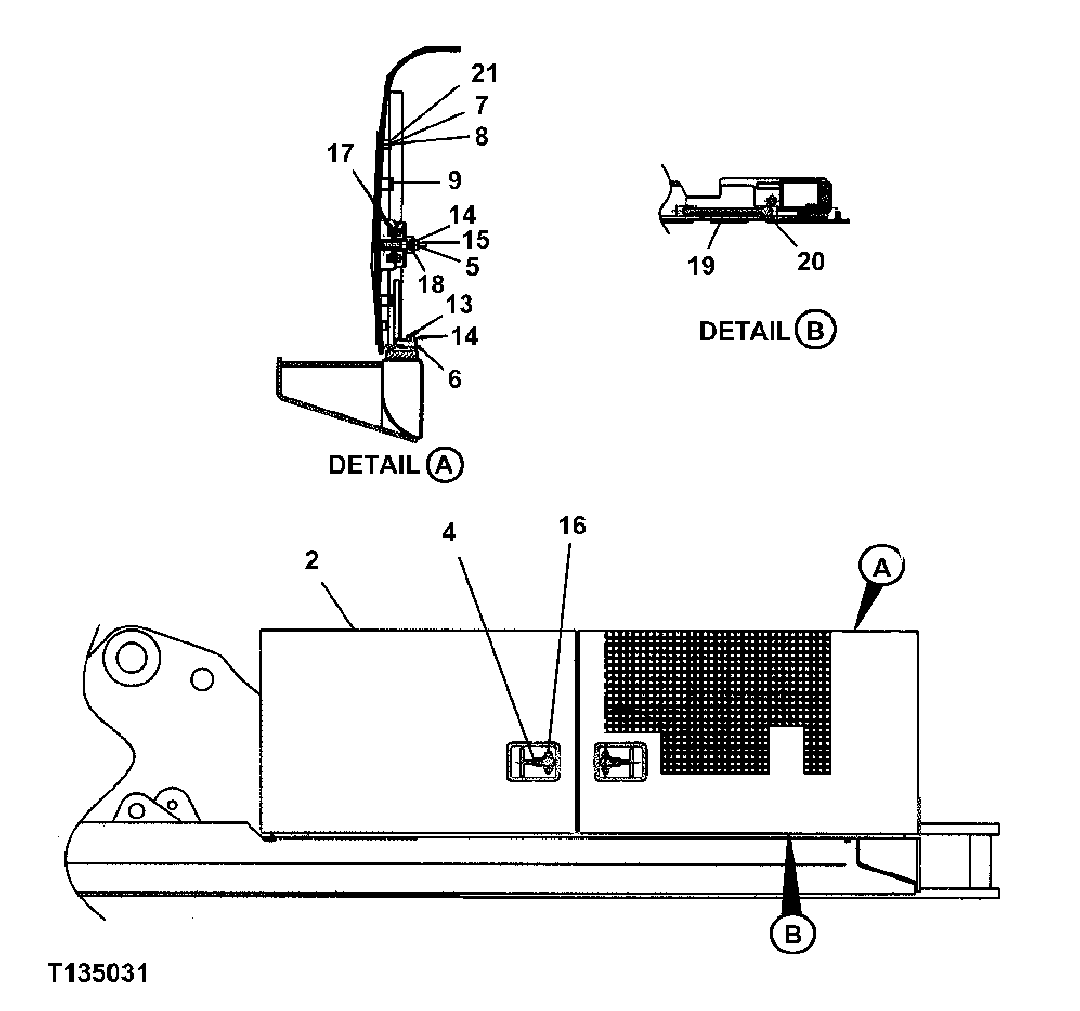

Запчасти John Deere 330LC, 370 130 - LEFT SIDE GUARDING FOR UNITS WITHOUT EXTENDED CAPACITY FUEL TANK 1910A Hood Or Engine Enclosure

1

FFSB106526

Guard

1шт.

2

FFSB106527

Guard

1шт.

4

FFSB106270

Latch

2шт.

5

FFSB111739

Cam

(SUB FOR FFSB106271)

2шт.

6

FFSB102907

Plate

2шт.

7

24M7047

Washer

13 X 24 X 2.500 mm

10шт.

8

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

8шт.

9

19M7872

Cap Screw

M12 X 25

4шт.

13

19M7662

Cap Screw

M10 X 30

4шт.

14

12M7066

Lock Washer

10 mm

8шт.

15

14M7274

Nut

M10

4шт.

16

19M7167

Cap Screw

M10 X 25

4шт.

17

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

18

14M7141

Nut

M14

4шт.

19

FFSB108263

Latch

2шт.

20

11M7017

Cotter Pin

3.200 X 32 mm

2шт.

21

19M8017

Cap Screw

M12 X 20

4шт.
