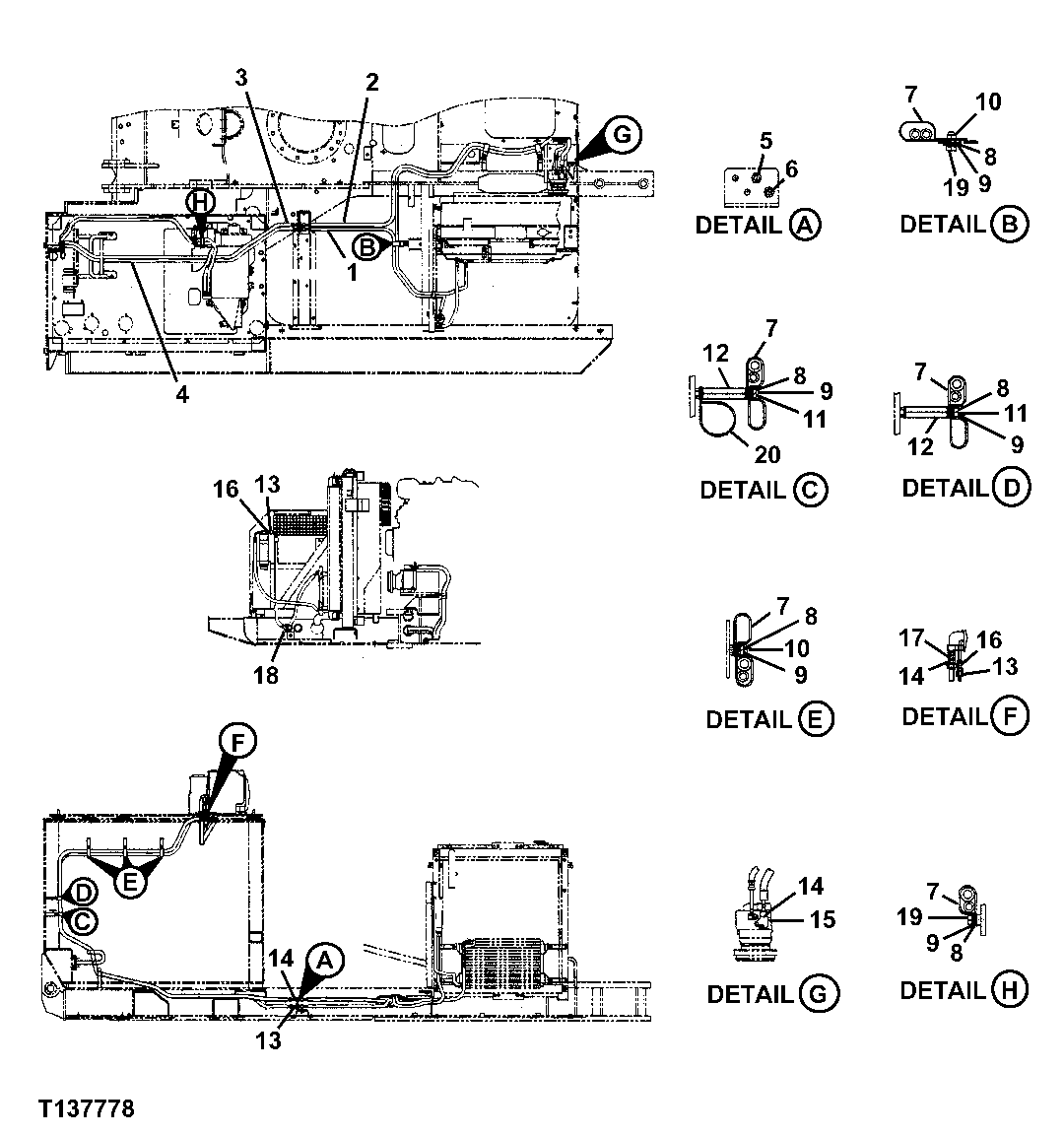

Запчасти John Deere 330LC, 370 126 - AIR CONDITIONER PIPING FOR ROADBUILDER WITH 48 INCH RISER 1830D Heating & Air Conditioning (Roadbuilder)

1

FFSB108413

Refrigerant Hose

1шт.

2

FFSB108414

Refrigerant Hose

1шт.

3

FFSB108562

Refrigerant Hose

1шт.

4

FFSB108563

Refrigerant Hose

1шт.

5

FFSB107501

Fitting

1шт.

6

FFSB107500

Fitting

1шт.

7

FFSB102828

Clip

12шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

16шт.

9

12M7066

Lock Washer

10 mm (SUB FOR FFSB107961)

7шт.

10

14M7274

Nut

M10 (SUB FOR FFSB107411)

4шт.

11

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB107141)

2шт.

12

FFSB107369

Nut

2шт.

13

R10093

O-Ring

(SUB FOR FFSB103060)

4шт.

14

811144800

O-Ring

(SUB FOR FFSB103061)

4шт.

15

FFSB103422

Fitting

1шт.

16

FFSB108420

Fitting

2шт.

17

FFSB108419

Fitting

1шт.

18

4201995

Grommet

(SUB FOR FFSB108008 ) (SUB FOR TH109396)

1шт.

19

19M7658

Cap Screw

M10 X 50 (SUB FOR FFSB10 7408 ) (SUB FOR 19M7179)

2шт.

20

R89288

Clamp

( FFSB105282 NO LONGER AVAILABLE)

1шт.
