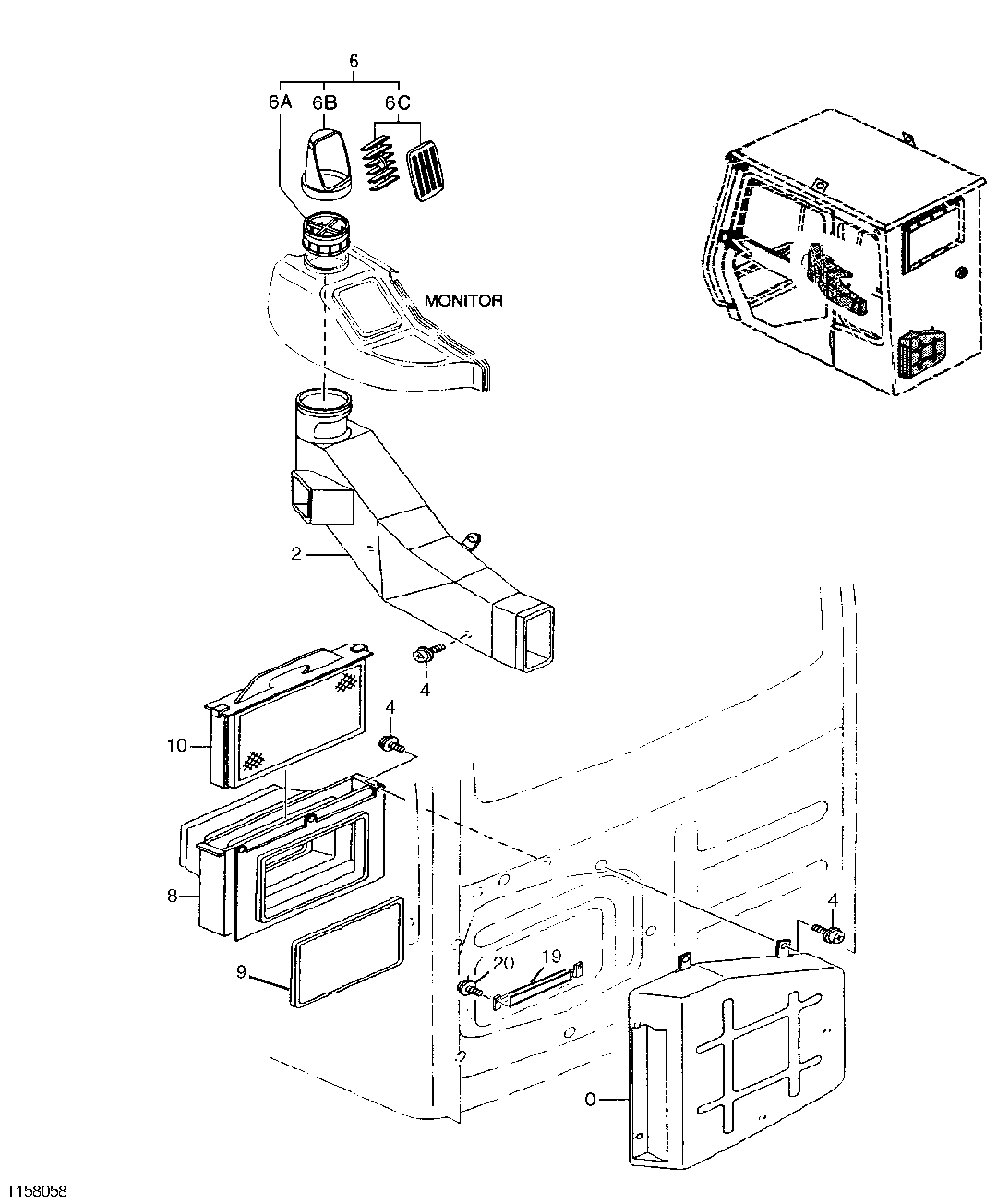

Запчасти John Deere 330LC, 370 125 - ROADBUILDER AIR CONDITIONER DUCT 1830D Heating & Air Conditioning (Roadbuilder)

0

FFSB104709

Air Duct

SUB FOR FFSB106564

1шт.

2

4348713

Air Duct

SUB FOR FFSB107013, SUB FOR AT213923

1шт.

4

19M8425

Cap Screw

M6 X 16 SUB FOR FFSB107135

12шт.

24M7293

Washer

6.500 X 13 X 1.600 mm SUB FOR FFSB107135

12шт.

12M7006

Lock Washer

6 mm SUB FOR FFSB107135

12шт.

6

4449068

Air Duct

SUB FOR AP34401, SUB FOR 4350244

1шт.

6A

Base

AT214275 OR 4370572 NO LO NGER AVAILABLE FOR SERVICE

1шт.

6B

Housing

AT214273 OR 4370570 NO LO NGER AVAILABLE FOR SERVICE

1шт.

6C

Air Duct

AT214274 OR 4370571 NO LO NGER AVAILABLE FOR SERVICE

1шт.

8

4350238

Air Duct

SUB FOR FFSB107015, SUB FOR AT213939

1шт.

9

Weatherstrip

FFSB109106 NOT AVAILABLE FOR SERVICE, FURNISH FFSB107987 BUL K MATERIAL CUT TO 900 MM LENGTH

1шт.

10

4S00640R

Air Filter

SUB FOR 4S00640, FFSB107 016, AT213943 OR 4350249

1шт.

19

3074721

Bracket

SUB FOR FFSB107009, SUB FOR AT213791

1шт.

20

19M8425

Cap Screw

M6 X 16 SUB FOR FFSB107135

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm SUB FOR FFSB107135

2шт.

12M7006

Lock Washer

6 mm SUB FOR FFSB107135

2шт.
