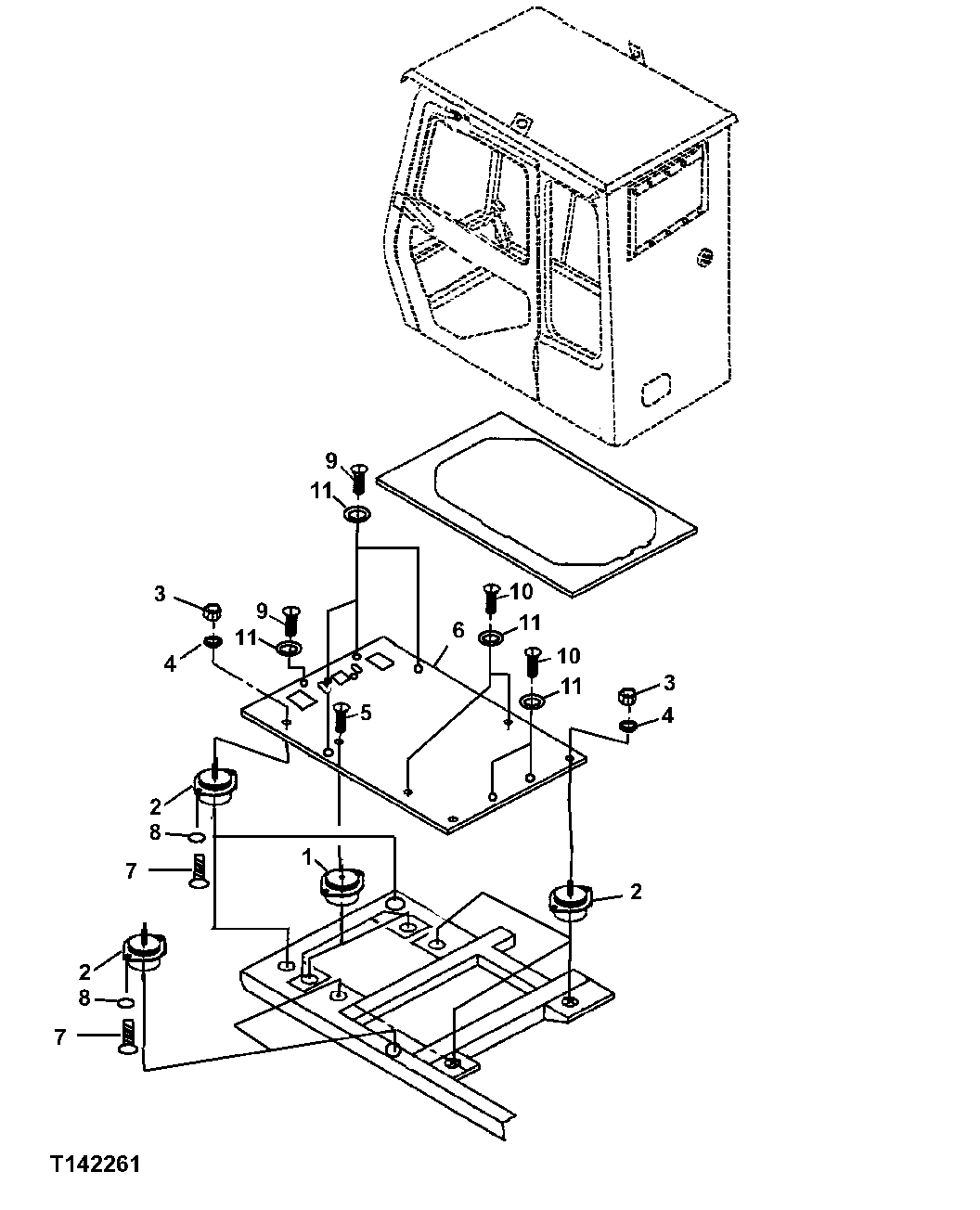

Запчасти John Deere 330LC, 370 119 - ROADBUILDER CAB MOUNTS 1810D Operator Enclosure (Roadbuilder)

1

FFSB107824

Support

2шт.

2

FFSB111103

Isolator

7шт.

3

14M7328

Lock Nut

M16

5шт.

4

24M7338

Washer

17 X 30 X 3 mm

5шт.

5

19M8575

Screw

M16 X 30

4шт.

6

Plate

(NOT AVAILABLE FOR SERVICE)

1шт.

7

19M7493

Cap Screw

M12 X 40

18шт.

8

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

18шт.

9

19M7662

Cap Screw

M10 X 30

4шт.

10

19M8337

Screw

M10 X 30

4шт.

11

24M7346

Washer

11 X 20 X 2 mm

8шт.
