Запчасти John Deere 330LC, 370 118 - ROADBUILDER CAB WINDOWS 1810D Operator Enclosure (Roadbuilder)

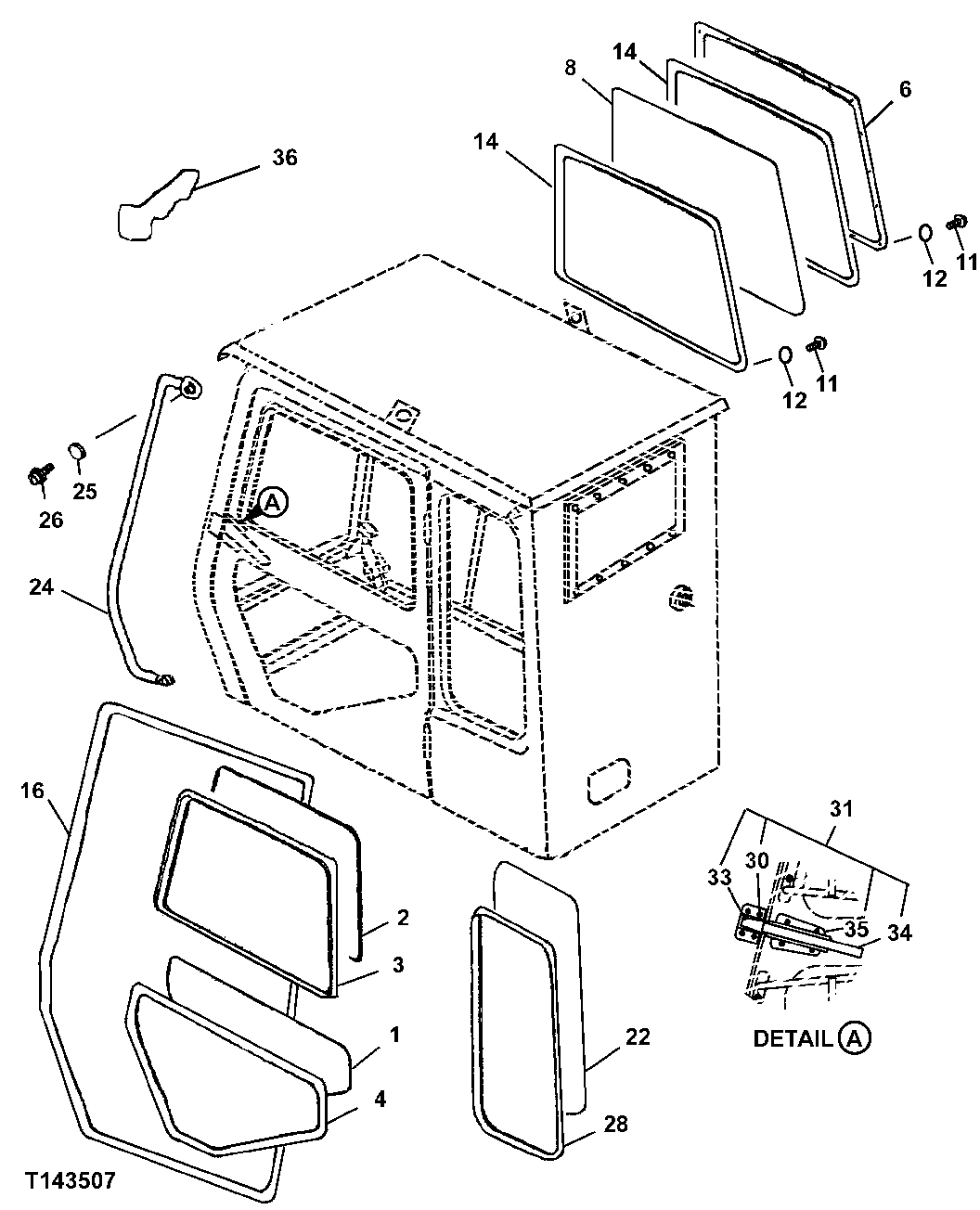

Схема запчастей John Deere 330LC, 370 - 118 - ROADBUILDER CAB WINDOWS 1810D Operator Enclosure (Roadbuilder)

Артикул

Название

Примечание

Количество

1

FFSB106797

Windowpane

1шт.

2

FFSB106798

Window

1шт.

3

Seal

(CUT TO LENGTH FROM FFSB108077 BULK MATERI AL) ( FFSB106897 NOT AVAILABLE FOR SERVICE)

1шт.

4

Seal

(CUT TO LENGTH FROM FFSB108077 BU LK MATERIAL) ( FFSB106897 OR FFSB 106898 NOT AVAILABLE FOR SERVICE)

1шт.

6

FFSB104033

Window

1шт.

8

FFSB104032

Windowpane

(LEXAN)

1шт.

11

19M7318

Screw

M6 X 30

17шт.

12

24M7054

Washer

6.400 X 12 X 1.600 mm

17шт.

14

Seal

(FURNISH FFSB103444 BULK MATERI AL CUT TO 2750 MM LENGTH) ( FFSB 106782 NOT AVAILABLE FOR SERVICE )

2шт.

16

Seal

( FFSB102928 NO LONGER AVAILABLE - FURN ISH FFSB103444 - CUT TO LENGTH 5000MM) ( FFSB106780 NOT AVAILABLE FOR SERVICE)

1шт.

22

FFSB106789

Windowpane

1шт.

24

FFSB104799

Handrail

1шт.

25

FFSB108058

Spacer

2шт.

26

12M7066

Lock Washer

10 mm

2шт.

28

Seal

(CUT TO LENGTH FROM FFSB108077 BU LK MATERIAL) ( FFSB106819 OR FFSB 106897 NOT AVAILABLE FOR SERVICE)

1шт.

30

19M7061

Screw

M6 X 25 ( FFSB106708 NO LONGER AVAILABLE)

8шт.

31

FFSB105877

Handle

1шт.

32

21H1167

Screw

0.190" X 1/4" (SUB FOR FFSB 106649, ALONG WITH 12H316)

3шт.

12H316

Lock Washer

0.216"

3шт.

33

FFSB106879

Striker

1шт.

34

FFSB102221

Latch

1шт.

35

FFSB106896

Spacer

1шт.

36

FFSB105925

Key

1шт.

Выбрано товаров: 23
