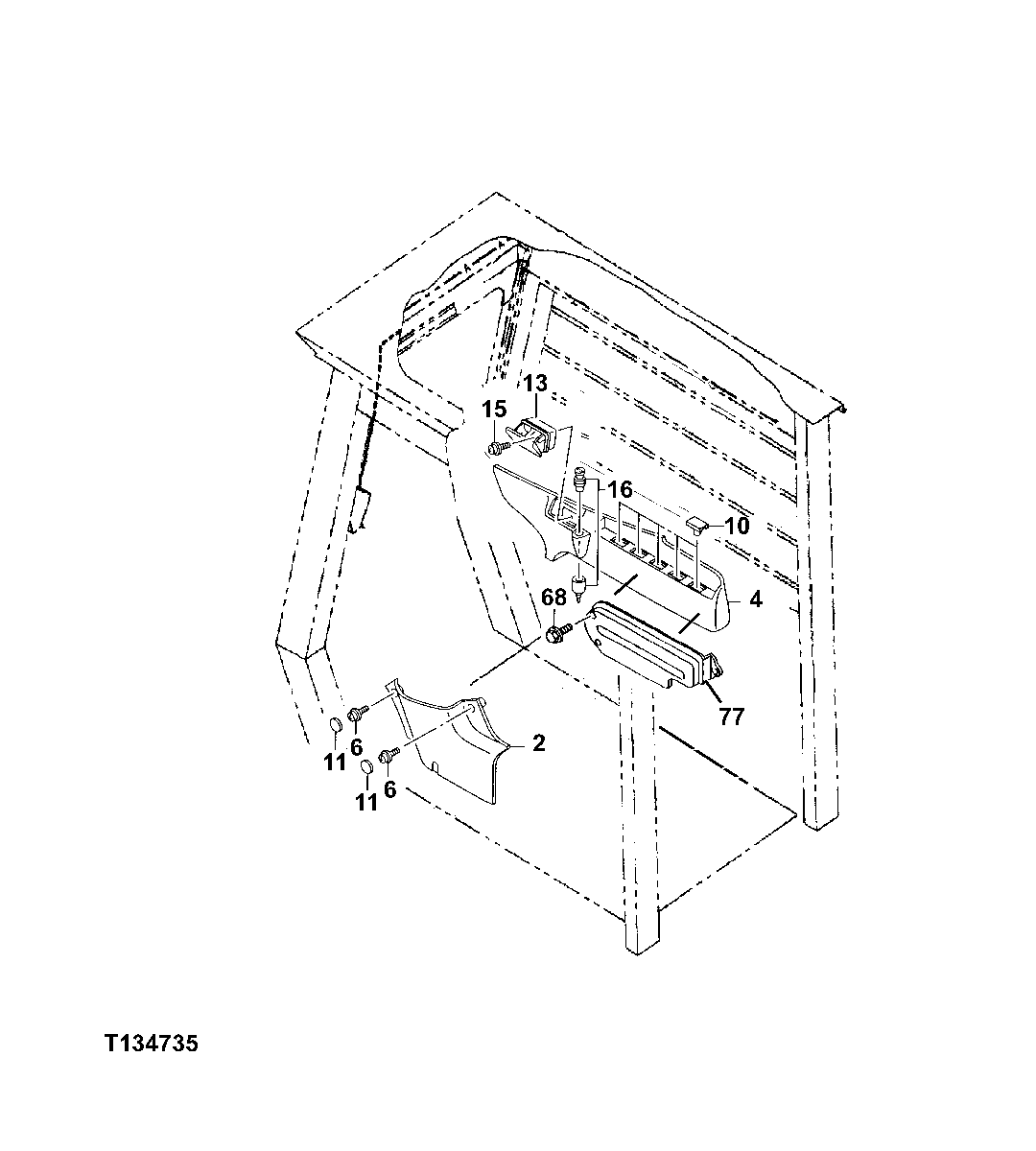

Запчасти John Deere 330LC, 370 117 - ROADBUILDER CAB INTERIOR 1810D Operator Enclosure (Roadbuilder)

2

4350246

Cover

(SUB FOR AT213941)

1шт.

4

4350247

Cover

(SUB FOR AT213942)

1шт.

6

19M8425

Cap Screw

M6 X 16

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

10

4350778

Cap

(SUB FOR AT213949)

5шт.

11

4350779

Cap

(SUB FOR AT213950)

2шт.

13

4350398

Ashtray

(SUB FOR AT213945)

1шт.

15

J900614

Bolt

(SUB FOR TH104056)

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

12M7006

Lock Washer

6 mm

1шт.

16

AR60937

Electrical Lighter

(12 VOLT)

1шт.

AU42809

Resistor

(12 VOLT)

1шт.

AT78634

Wiring Lead

(12 VOLT)

1шт.

AT78633

Housing

(12 VOLT)

1шт.

Electrical Lighter

( 4357862 NO LONGER AVAILABLE ) (SUB FOR AT190190 (24 VOLT))

1шт.

68

4369567

Cover

(SUB FOR AT214077)

1шт.

77

19M7162

Cap Screw

M8 X 16 (SUB FOR AT214308 OR 43722 22, ALONG WITH 24M7036 AND 12M7065)

3шт.

24M7036

Washer

9 X 16 X 1.600 mm

3шт.

12M7065

Lock Washer

8 mm

3шт.
