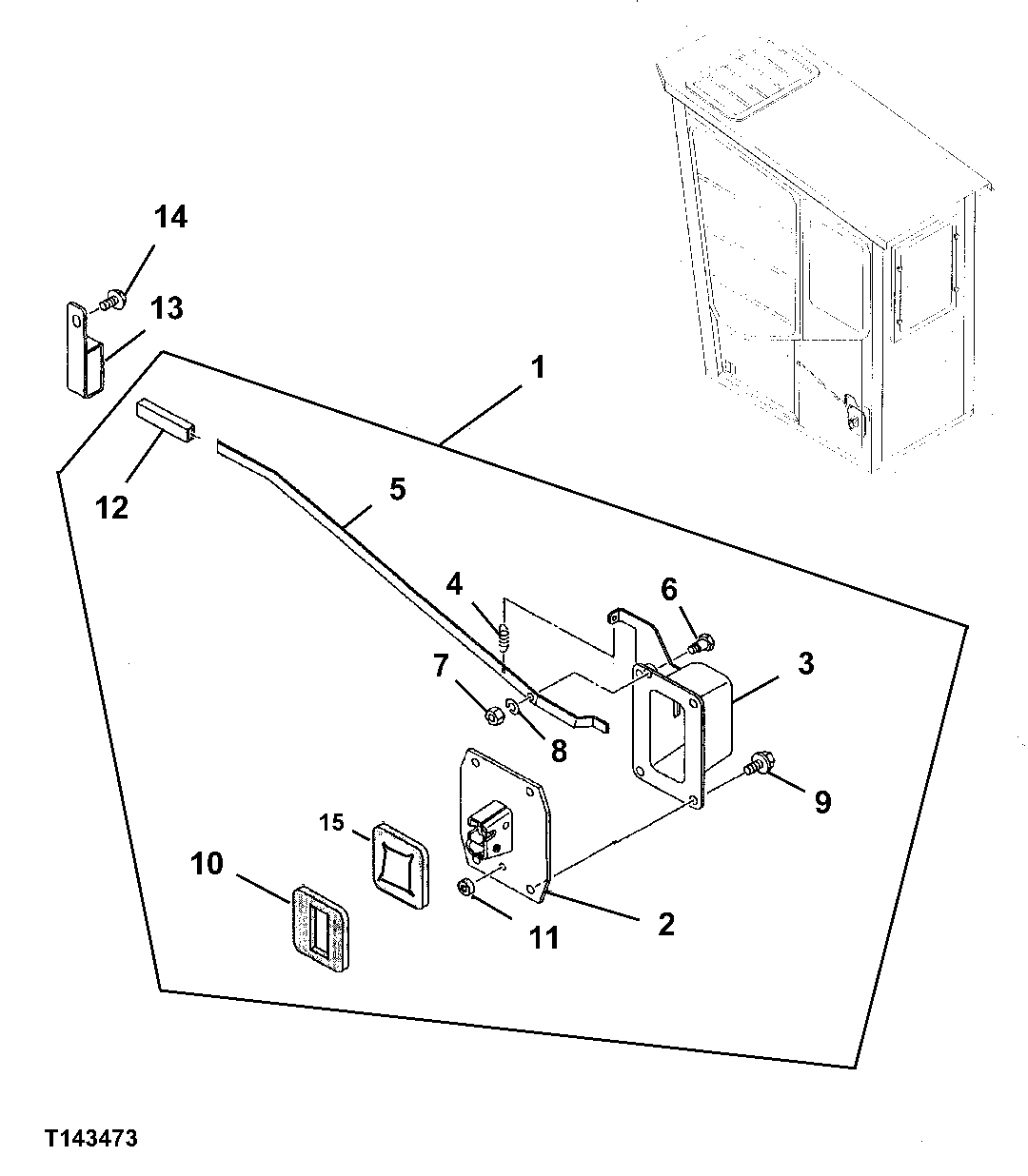

Запчасти John Deere 330LC, 370 101 - FORESTRY CAB DOOR LATCH 1810C Operator Enclosure (Forestry)

1

4369621

Catch

(SUB FOR AT214124)

1шт.

2

4372094

Catch

(SUB FOR AT214293)

1шт.

3

4372095

Housing

(SUB FOR AT214294)

1шт.

4

4208103

Spring

(SUB FOR AT121585)

1шт.

5

4369623

Lever

(SUB FOR AT214125)

1шт.

6

4372209

Pin

(SUB FOR AT214296)

1шт.

7

14M7272

Nut

M6

1шт.

8

12M7006

Lock Washer

6 mm

1шт.

9

19M7513

Cap Screw

M8 X 30 (SUB FOR FFSB107866)

4шт.

10

4204590

Gasket

(SUB FOR TH108672)

1шт.

11

4204591

Seal

(SUB FOR TH108673)

1шт.

12

4089012

Cap

(SUB FOR TH101184)

1шт.

13

4369624

Stop

(SUB FOR AT214126)

1шт.

14

19M7513

Cap Screw

M8 X 30 (SUB FOR FFSB107866)

1шт.

15

FFSB108352

Spacer

1шт.
