99 - Forestry Cab Front Window

Запчасти John Deere 330LC, 370 99 - Forestry Cab Front Window 1810C Operator Enclosure (Forestry)

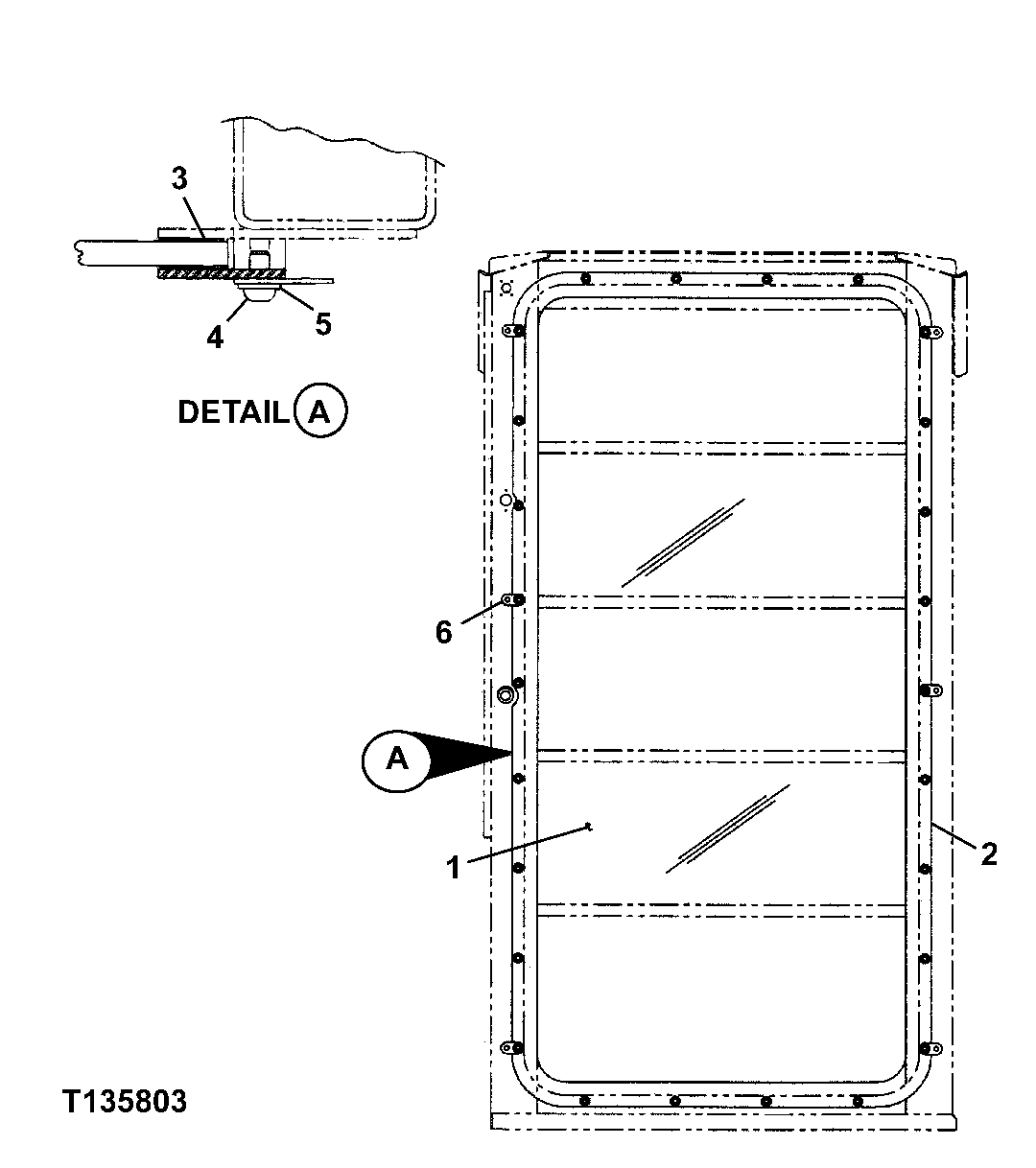

Схема запчастей John Deere 330LC, 370 - 99 - Forestry Cab Front Window 1810C Operator Enclosure (Forestry)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB107872

Windowpane

1шт.

2

FFSB107491

Retainer

1шт.

3

Seal

(SUB FOR FFSB107992)(FURNISH FFSB10344 4 BULK MATERIAL CUT TO 5320 MM LENGTH)

2шт.

4

21M7442

Screw

M10 X 20 ( FFSB108054 NO LONGER AVAILABLE)

26шт.

5

12M7066

Lock Washer

10 mm

26шт.

6

FFSB107552

Lug

6шт.
