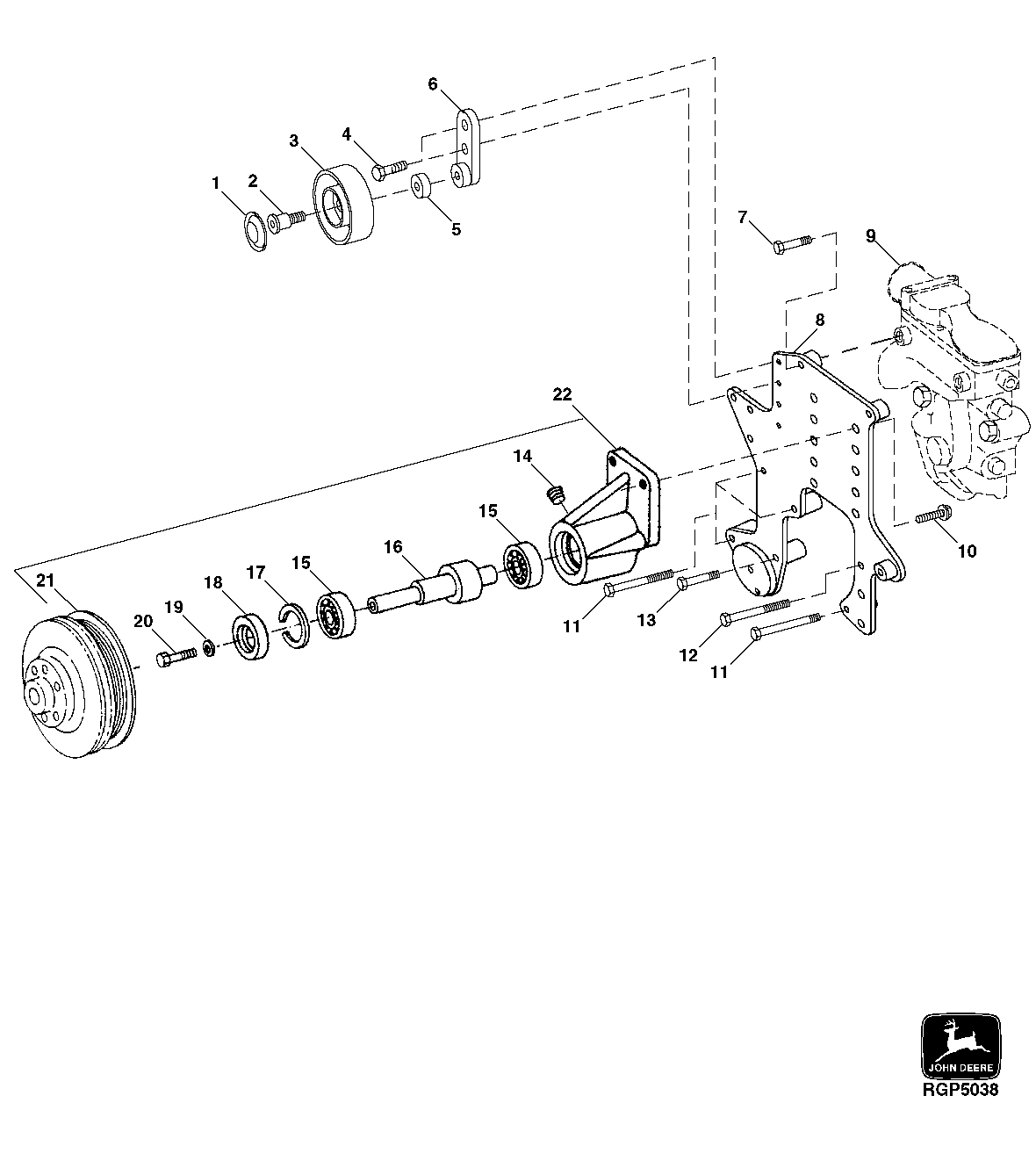

Запчасти John Deere 30LC/370 78 - ADJUSTABLE FAN DRIVE AND PULLEY 0400 Engine 6081HT001-RG26768 6081HT001

1

R99590

Cover

1шт.

2

R128893

Bolt

1шт.

3

RE505265

Idler

(SUB FOR RE155577)

1шт.

4

19H2676

Cap Screw

3/8" X 1"

2шт.

5

R128892

Spacer

1шт.

6

R127808

Support

1шт.

7

R121395

Screw

1шт.

8

R129875

Plate

1шт.

9

R519580

Manifold

(SUB FOR R500197)

1шт.

10

T55636

Screw

4шт.

11

R135737

Screw

4шт.

12

19H3711

Screw

3/8" X 5-1/2"

1шт.

13

R112273

Screw

1шт.

14

15H686

Pipe Plug

1"

1шт.

15

JD10329

Ball Bearing

2шт.

16

R63987

Shaft

1шт.

17

R62191

Snap Ring

(RED)

2шт.

R62192

Snap Ring

(GREEN)

ARшт.

R62193

Snap Ring

(BLUE)

ARшт.

R62194

Snap Ring

(WHITE)

ARшт.

18

RE20768

Seal

1шт.

19

R35256

Washer

1шт.

20

19H1815

Cap Screw

1/2" X 1-1/4"

1шт.

21

R500280

Pulley

1шт.

22

RE500532

Housing

1шт.
