38 - CRANKSHAFT OIL SEAL AND HOUSING

Запчасти John Deere 30LC/370 38 - CRANKSHAFT OIL SEAL AND HOUSING 0400 Engine 6081HT001-RG26768 6081HT001

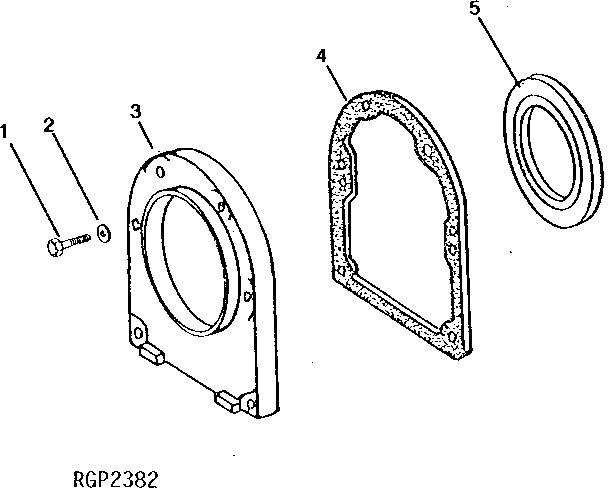

Схема запчастей John Deere 30LC/370 - 38 - CRANKSHAFT OIL SEAL AND HOUSING 0400 Engine 6081HT001-RG26768 6081HT001
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

19H2117

Cap Screw

5/16" X 1-1/8"

6шт.

2

T27860

Washer

8.740 X 17.500 X 1.664 mm (11/32" X 0.689" X 0.066")

6шт.

3

R125027

Housing

1шт.

4

R26058

Gasket

1шт.

5

RE520036

Seal

(SUB FOR RE22764)

1шт.

Выбрано товаров: 5
