Запчасти John Deere 30LC/370 30 - Rotary Manifold 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

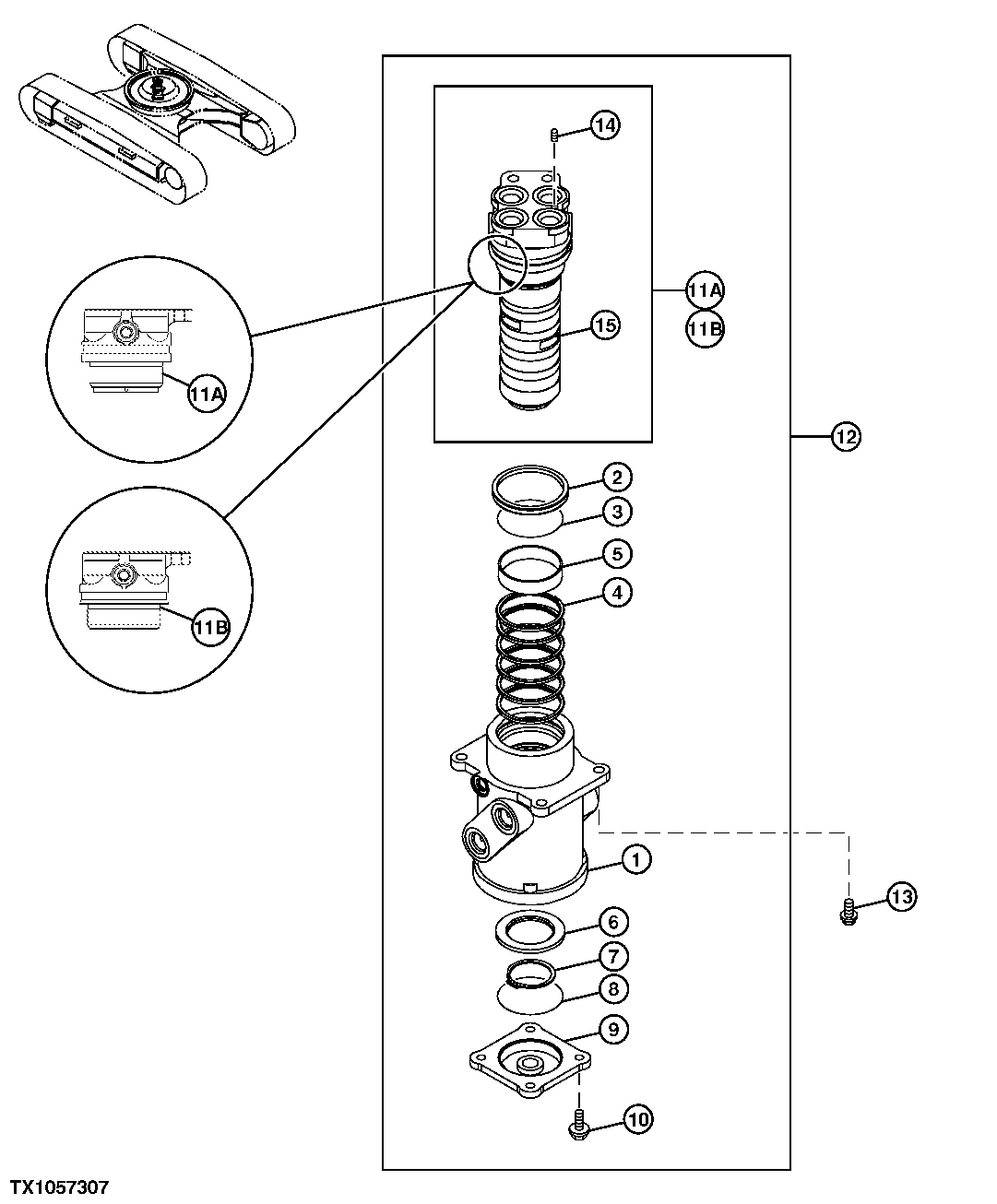

Схема запчастей John Deere 30LC/370 - 30 - Rotary Manifold 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

Артикул

Название

Примечание

Количество

1

Housing

(USE WITH 9181005)( 0003542 NLA)

1шт.

0001190

Housing

(USE WITH 9145787)

1шт.

2

4390776

Seal

(USE WITH 9181005)

1шт.

AT154321

Seal

(USE WITH 9145787 ) (SUB FOR 4272803)

1шт.

3

AT264418

O-Ring

(SUB FOR 4367664)

1шт.

4

AT154162

Seal

(SUB FOR 4231543)

6шт.

5

4241780

Bushing

1шт.

6

3070250

Ring

1шт.

7

40M7048

Snap Ring

(SUB FOR 991347)

1шт.

8

CH16109

Packing

(SUB FOR A810100)

1шт.

9

2034607

Cover

1шт.

10

19M7662

Cap Screw

M10 X 30 (SUB FOR J011030)

4шт.

11A

Spindle

(USE WITH 4390776 AND 0003542)( 9181005 NLA)

1шт.

11B

9145787

Spindle

(USE WITH AT154321 AND 0001190)

1шт.

12

9107265

Manifold

For Non NA Applications SUB FOR 9101521

1шт.

9107265EX

Manifold Reman

For NA Applications REMAN FOR 9107265

1шт.

13

19M7403

Cap Screw

M12 X 35 (SUB FOR J011235)

4шт.

12H301

Lock Washer

1/2"

4шт.

14

4239611

Plug

1шт.

15

Spindle

( 0001193 NLA)

1шт.

Выбрано товаров: 20
