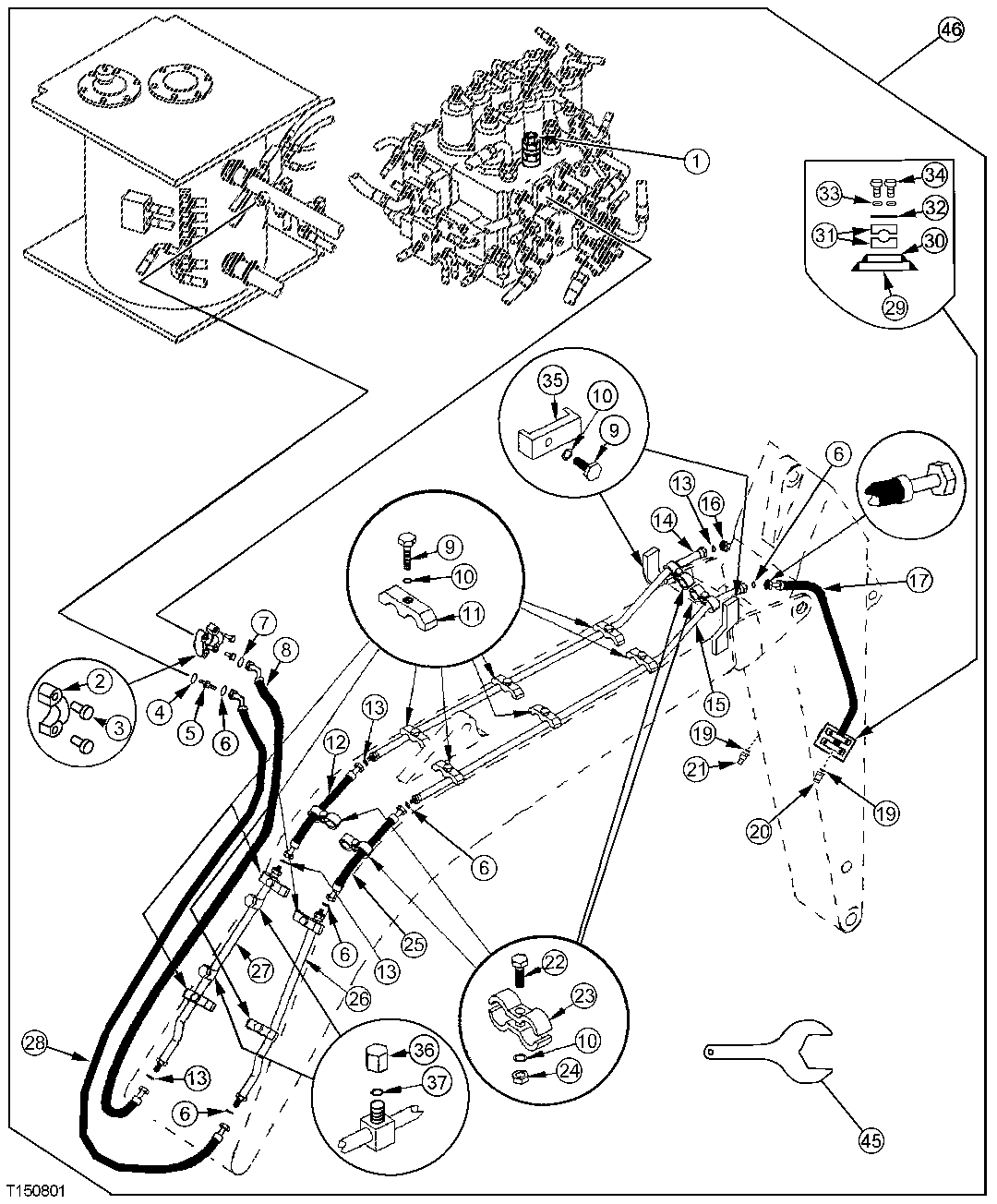

Запчасти John Deere 30LC/370 324 - Auxiliary Hydraulic Line (One Way Flow - Hammers) 3360 HYDRAULIC SYSTEM

1

4419373

Pressure Relief Valve

(SUB FOR AT185397)

1шт.

2

H61354

Flange Fitting

2шт.

3

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

4

TH101926

O-Ring

1шт.

5

4207425

Adapter Fitting

(SUB FOR TH111740)

1шт.

6

T78612

O-Ring

1шт.

7

T78313

O-Ring

1шт.

8

AT217763

Hydraulic Hose

1" X 1700 mm (67") X 36.5252"

1шт.

9

19M7753

Cap Screw

M12 X 70

12шт.

10

12H301

Lock Washer

1/2"

16шт.

11

4189860

Clamp

(SUB FOR TH108314)

10шт.

12

AT163473

Hydraulic Hose

36.5252" X 1612 mm (63-1/2") X 36.5252"

1шт.

13

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

14

AT163479

Line

1шт.

15

AT186558

Oil Line

1шт.

16

AT187891

Hydraulic Hose

36.5252" X 1828 mm (72") X 36.5252"

1шт.

17

AT186575

Hydraulic Hose

1-5/8" X 1828 mm (72") X 42.8752"

1шт.

19

U13639

O-Ring

2шт.

20

AT186126

Quick Coupler

(ORDER (1) FOR EACH ADDITIONAL ATTACHMENT)

1шт.

21

AT186124

Quick Coupler

(ORDER (1) FOR EACH ADDITIONAL ATTACHMENT)

1шт.

22

19M7361

Cap Screw

M12 X 50

4шт.

23

4202103

Clamp

(SUB FOR TH108302)

8шт.

24

14M7275

Nut

M12

4шт.

25

AT186557

Hydraulic Hose

1шт.

26

AT186556

Oil Line

1шт.

27

AT163476

Line

2шт.

28

AT186574

Hydraulic Hose

1шт.

29

T184549

Spacer

2шт.

30

T166675

Plate

(RIGHT SIDE OF BOOM)

2шт.

T167276

Plate

(LEFT SIDE OF BOOM)

2шт.

31

AT190587

Clamp

(RIGHT SIDE OF BOOM)

2шт.

AT190586

Clamp

(LEFT SIDE OF BOOM)

2шт.

32

T166674

Plate

(RIGHT SIDE OF BOOM)

2шт.

T167277

Plate

(LEFT SIDE OF BOOM)

2шт.

33

24H1219

Washer

7/16" X 1" X 0.083"

8шт.

34

19H3197

Cap Screw

7/16" X 4" (RIGHT SIDE OF BOOM)

4шт.

19H2732

Cap Screw

3/8" X 2-3/4" (LEFT SIDE OF BOOM)

4шт.

35

4190127

Clamp

(SUB FOR TH108313)

2шт.

36

38H1418

Fitting

2шт.

37

T77858

O-Ring

2шт.

38

38H1180

Adapter Fitting

(NOT ILLUSTRATED)

1шт.

39

AT186128

Cap

DUST COVER (NOT ILLUSTRATED)

1шт.

40

AT186129

Plug

DUST COVER (NOT ILLUSTRATED)

1шт.

41

H126247

Clamp

(NOT ILLUSTRATED)

1шт.

42

03M7189

Bolt

M8 X 45 (NOT ILLUSTRATED)

1шт.

43

14M7020

Wing Nut

M8 (NOT ILLUSTRATED)

1шт.

44

24M7036

Washer

9 X 16 X 1.600 mm (NOT ILLUSTRATED)

1шт.

45

T183966

Wrench

1шт.

46

Kit

WHOLEGOODS (AUXILIARY HYDRAULIC LINE) ( ONE WAY FLOW - HAMMERS) ( AT196996 NLA)

1шт.
