Запчасти John Deere 30LC/370 315 - SOLENOID CONTROL AND FLOW CONTROL KIT (1-WAY) 3360 HYDRAULIC SYSTEM

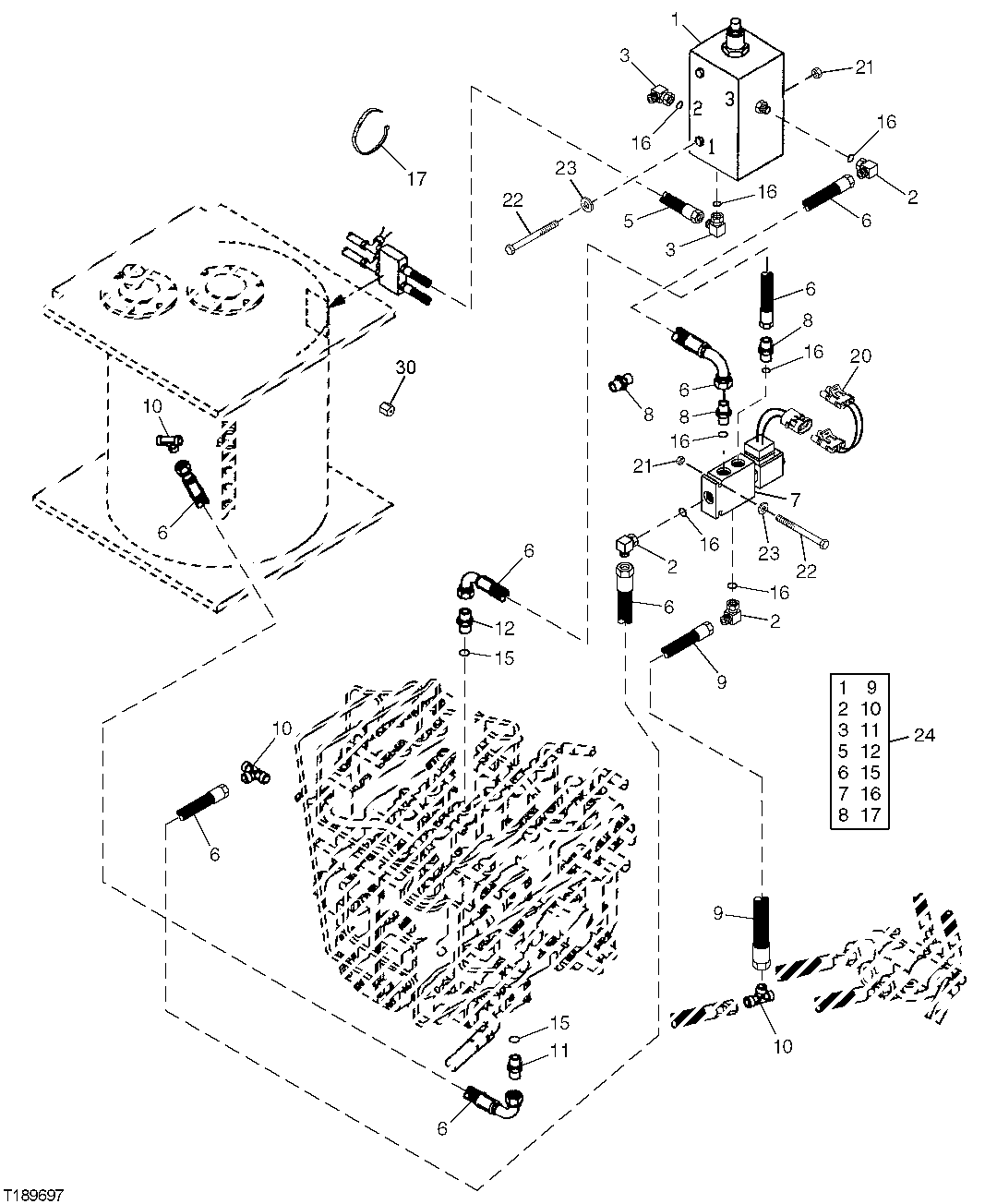

Схема запчастей John Deere 30LC/370 - 315 - SOLENOID CONTROL AND FLOW CONTROL KIT (1-WAY) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

AT186623

Hydraulic Pressure Valve

PRESSURE REDUCING

1шт.

2

AT35121

Elbow Fitting

4шт.

3

AH75160

Elbow Fitting

2шт.

5

AE42718

Hydraulic Hose

1шт.

6

AT71732

Hydraulic Hose

4шт.

7

AT306723

Elec.Proportional Valve

SOLENOID (SUB FOR AT116486 AND AT140041)

1шт.

Electrical Coil

( AT140041 NO LONGER AVAILABLE)

1шт.

8

R27212

Fitting

4шт.

9

AT130684

Hydraulic Hose

1шт.

10

AT36921

Tee Fitting

2шт.

11

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

12

AT130053

Adapter Fitting

2шт.

14

R44302

Tie Band

4шт.

15

CH11570

O-Ring

5шт.

16

R26448

O-Ring

7шт.

20

AT191297

Wiring Harness

1шт.

21

14M7272

Nut

M6

4шт.

22

19M7529

Cap Screw

M6 X 55

4шт.

23

24M7139

Washer

6.400 X 18 X 1.600 mm

4шт.

24

Field Installation Kit

(WHOLE GOODS) (COMPLETE KIT) (ALSO ORDE R T188662 INSTRUCTIONS) ( AT186622 NLA)

1шт.

25

AT71082

Hydraulic Hose

(NOT ILLUSTRATED)

1шт.

26

AE24616

Elbow Fitting

(NOT ILLUSTRATED)

1шт.

30

R31147

Fitting

1шт.

Выбрано товаров: 23
