Запчасти John Deere 30LC/370 312 - Auxiliary Hydraulic Line (Two Way Flow - Cylinder) 3360 HYDRAULIC SYSTEM

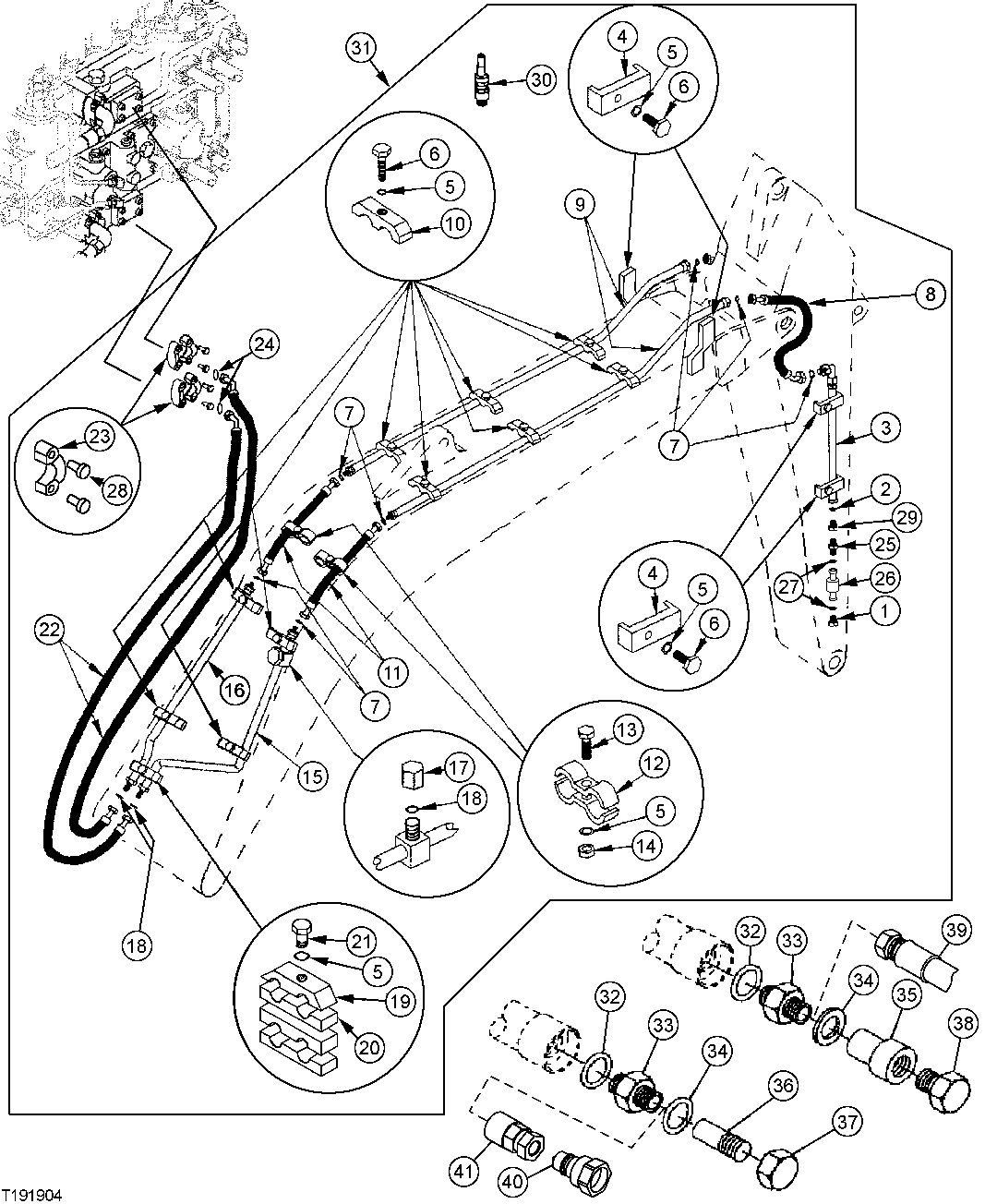

Схема запчастей John Deere 30LC/370 - 312 - Auxiliary Hydraulic Line (Two Way Flow - Cylinder) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

38H1151

Fitting Plug

2шт.

2

T78612

O-Ring

2шт.

3

AT159934

Oil Line

2шт.

4

4190127

Clamp

(SUB FOR TH108313)

6шт.

5

12H301

Lock Washer

1/2"

21шт.

6

19M7753

Cap Screw

M12 X 70

16шт.

7

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

10шт.

8

AT163483

Hydraulic Hose

36.5252" X 1485 mm (58-1/2") X 36.5252"

2шт.

AT163484

Hydraulic Hose

36.5252" X 2235 mm (88") X 36.5252"

2шт.

9

AT163479

Line

2шт.

10

4189860

Clamp

11шт.

11

AT163473

Hydraulic Hose

36.5252" X 1612 mm (63-1/2") X 36.5252"

2шт.

12

4202103

Clamp

(SUB FOR TH108302)

8шт.

13

19M7361

Cap Screw

M12 X 50

4шт.

14

14M7275

Nut

M12

4шт.

15

AT163474

Line

1шт.

16

AT163476

Line

1шт.

17

38H1418

Fitting

4шт.

18

T77858

O-Ring

4шт.

19

9735916

Channel

(SUB FOR AT157648)

2шт.

20

4249704

Clamp

(SUB FOR AT122946)

1шт.

21

19M7758

Cap Screw

M12 X 130

1шт.

22

AT217763

Hydraulic Hose

1" X 1700 mm (67") X 36.5252"

2шт.

23

H61354

Flange Fitting

4шт.

24

T78313

O-Ring

2шт.

25

38H1196

Adapter Fitting

2шт.

26

AT196851

Hand Operated Valve

2шт.

27

R29936

O-Ring

2шт.

28

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

29

R36636

Fitting Plug

2шт.

30

4419373

Pressure Relief Valve

(SUB FOR AT185397)

2шт.

31

Kit

WHOLEGOODS (AUXILIARY HYDRAULIC LINE) (TWO W AY FLOW - CYLINDER) ( AT196995 NLA) ALSO ORD ER AT163484(3.96M ARM) OR AT163484(3.2M ARM)

1шт.

32

T78612

O-Ring

2шт.

33

38H1216

Adapter Fitting

(ALSO ORDER T76938 AND R29936)(1" ORFS)

2шт.

38H1194

Adapter Fitting

(ALSO ORDER T77858 AND R29936)(3/4" ORFS)

2шт.

AT46961

Union Fitting

(1" SAE, MALE)

2шт.

T27603

Fitting

(3/4", 37 DEGREE)

2шт.

T26767

Fitting

(1", 37 DEGREE)

2шт.

AT83306

Adapter Fitting

(3/4" SAE, MALE)

2шт.

34

U13639

O-Ring

2шт.

35

AT186126

Quick Coupler

(1 1/4" FEMALE)(SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189412 NO LONGER AVAILABLE)

1шт.

36

AT186124

Quick Coupler

(1 1/4" MALE)(SCREW TOGETHER COUPLER)

1шт.

AT189411

Seal Kit

1шт.

37

AT186128

Cap

1шт.

38

AT186129

Plug

1шт.

39

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

40

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

41

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

Выбрано товаров: 52
