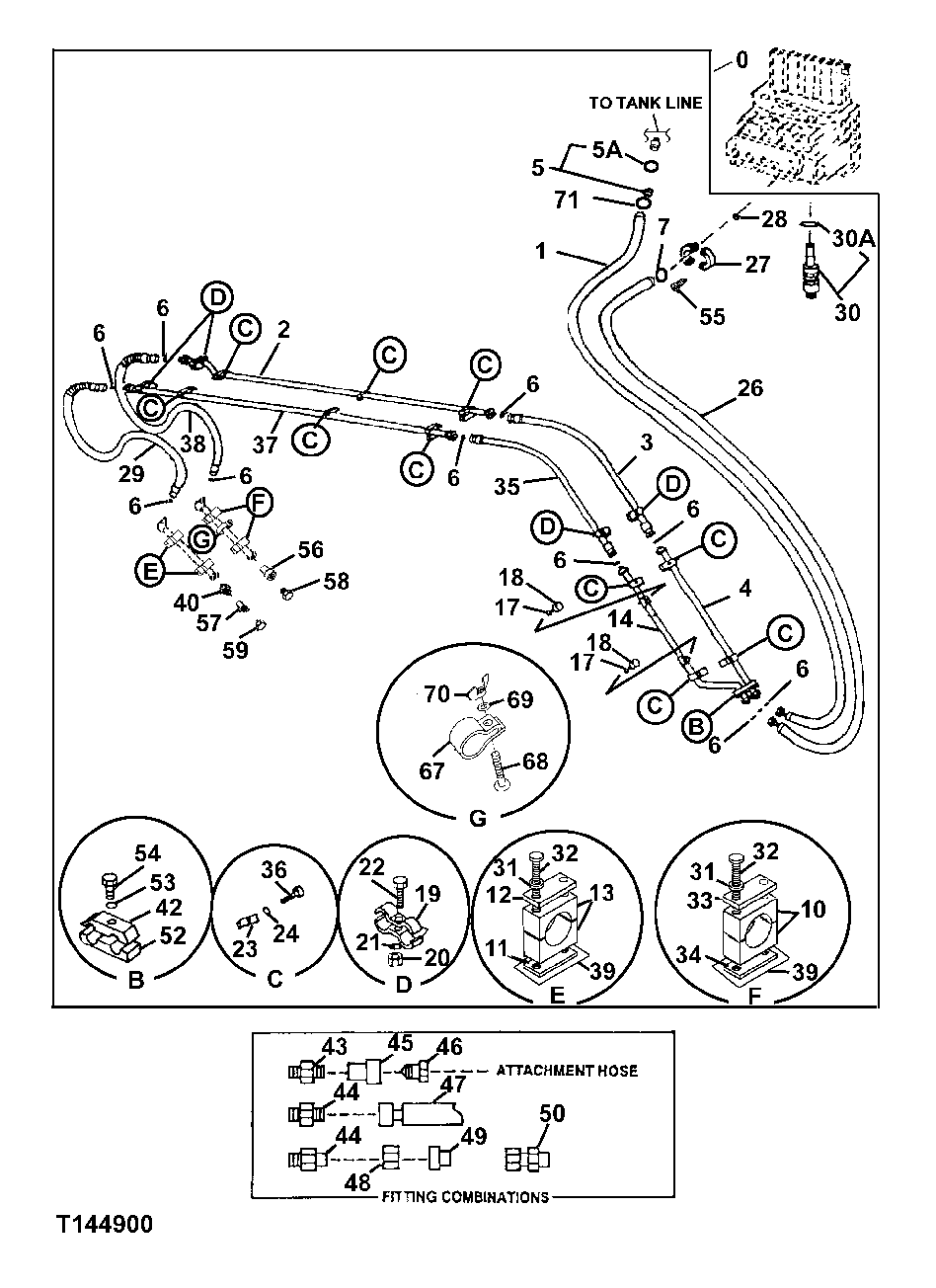

Запчасти John Deere 30LC/370 311 - AUXILIARY HYDRAULIC PLUMBING 3360 HYDRAULIC SYSTEM

0

Kit

(AT186560 NO LONGER AVAILABLE) (SUB AT19 6995) (ALSO ORDER AT186124 AND AT186126)

1шт.

51

9735916

Channel

(SUB FOR AT157648)

2шт.

52

4249704

Clamp

(SUB FOR AT122946)

1шт.

53

12H301

Lock Washer

1/2"

1шт.

54

19M7758

Cap Screw

M12 X 130

1шт.

55

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

56

AT186126

Quick Coupler

1шт.

57

AT186124

Quick Coupler

1шт.

58

AT186129

Plug

1шт.

59

AT186128

Cap

1шт.

66

AT187891

Hose

(NOT ILLUSTRATED) (END OF BOOM ARM)

1шт.

67

H126247

Clamp

1шт.

68

03M7189

Bolt

M8 X 45

1шт.

69

24M7036

Washer

9 X 16 X 1.600 mm

1шт.

70

14M7020

Wing Nut

M8

1шт.

71

T78612

O-Ring

29.870 X 1.780 mm (1.176" X 0.070")

1шт.
