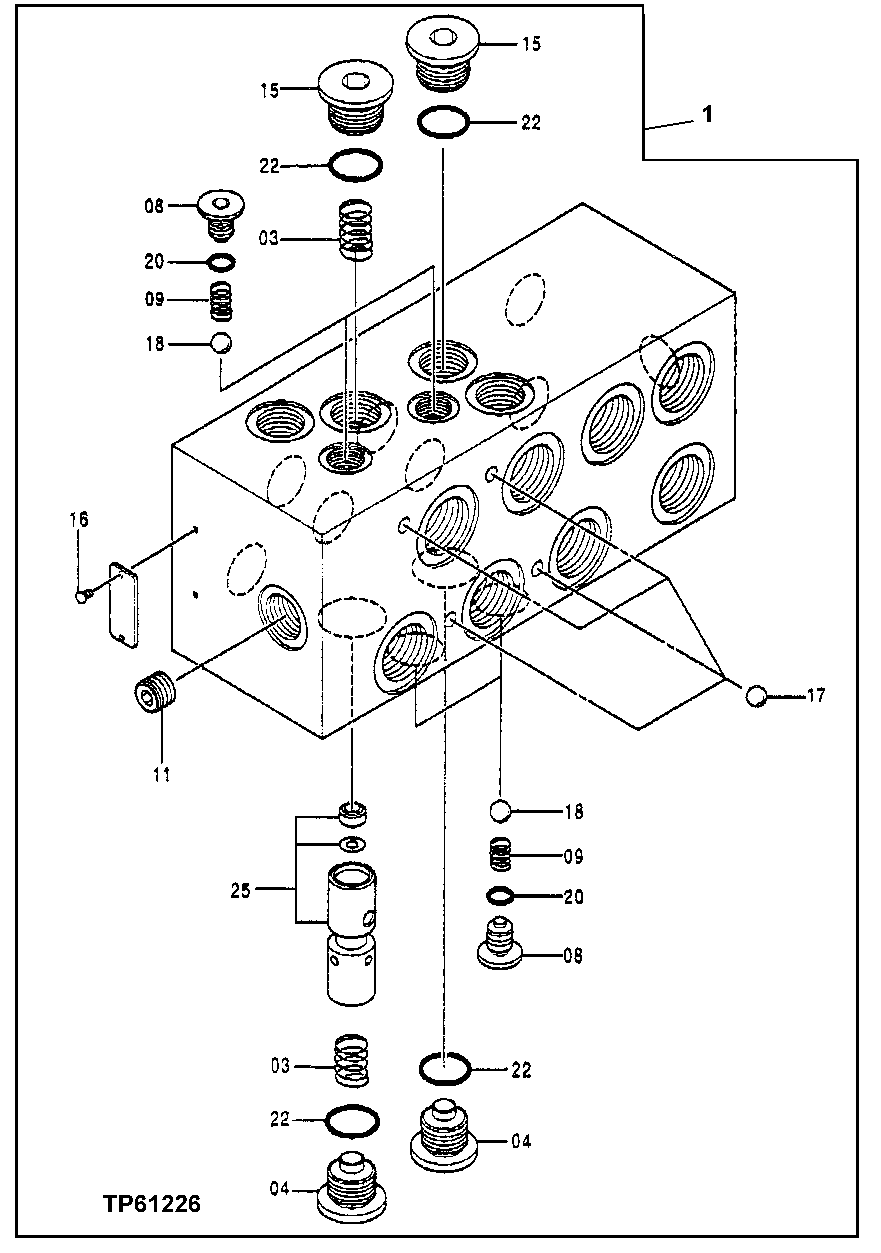

Запчасти John Deere 30LC/370 309 - Flow Control Valve 3360 HYDRAULIC SYSTEM

1

4392529

Hyd Actuated Control Valve

(SUB FOR AT250095)

1шт.

3

0309801

Spring

(SUB FOR TH109280)

2шт.

4

0309802

Pipe Plug

(SUB FOR TH109281)

2шт.

8

0614204

Fitting Plug

(SUB FOR AT204861)

4шт.

9

0614207

Compression Spring

(SUB FOR AT204788)

4шт.

11

0669201

Orifice

(SUB FOR AT213708)

1шт.

15

8038547

Line

(SUB FOR TH109835)

2шт.

16

0208717

Screw

(SUB FOR TH102697)

2шт.

17

L38718

Ball

6 mm (0.236")

4шт.

18

F740009D

Ball

7.137 mm (9/32") (SUB F OR AT204789 OR 0614208)

4шт.

20

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

4шт.

22

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

4шт.

25

0352402

Plunger

(SUB FOR AT127370)

1шт.
