Запчасти John Deere 30LC/370 308 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 HYDRAULIC SYSTEM

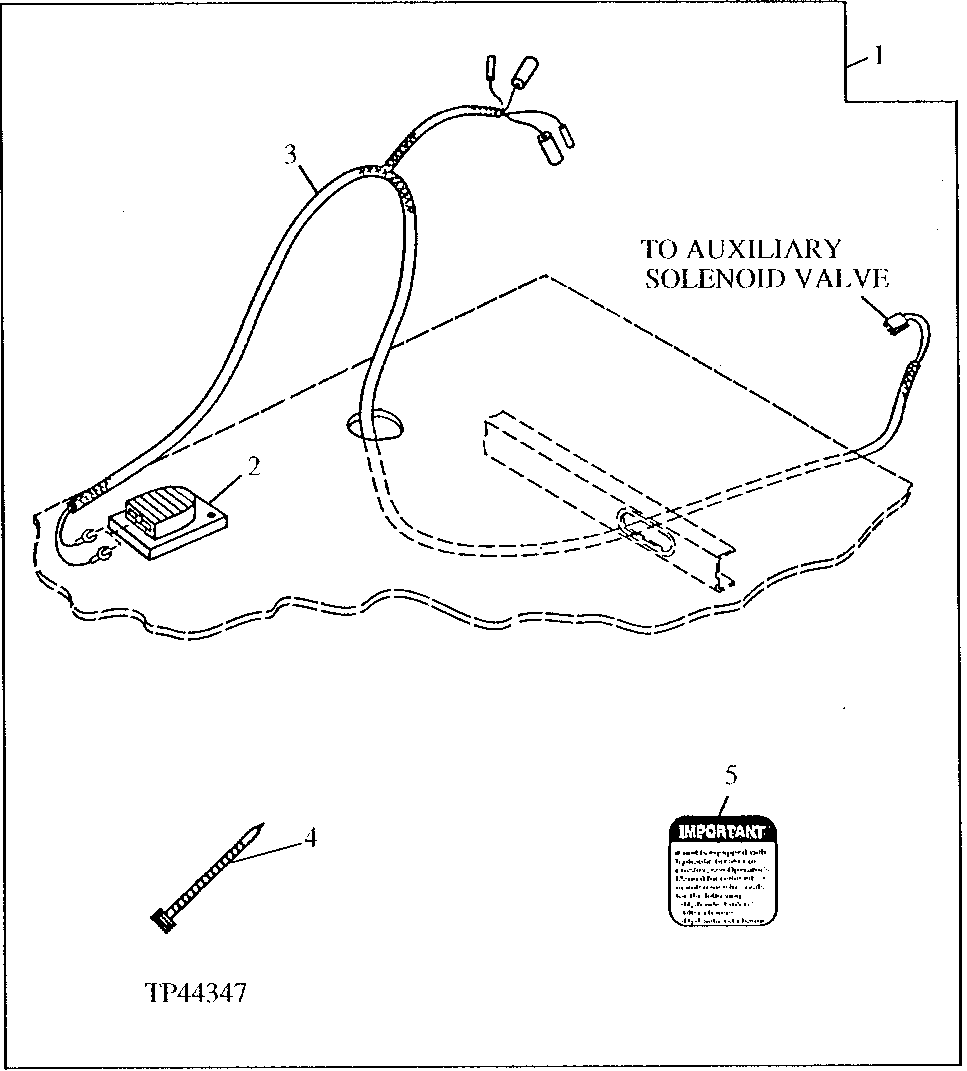

Схема запчастей John Deere 30LC/370 - 308 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

AT196587

Switch

(SUB FOR AT164896)WHOLEGOODS (ELECT RIC FOOT SWITCH FOR AUXILIARY VALVE)

1шт.

2

AT82210

Switch

(ELECTRIC FOOT CONTROL)

1шт.

3

AT196588

Wiring Harness

1шт.

4

R44302

Tie Band

(USE AS REQUIRED)

2шт.

5

T149434

Label

(IMPORTANT - AUXILIARY ELECTRIC CONTROL)

1шт.

Выбрано товаров: 5
