Запчасти John Deere 30LC/370 300 - Arm Cylinder, 330LC ( - 021764) 3360 HYDRAULIC SYSTEM

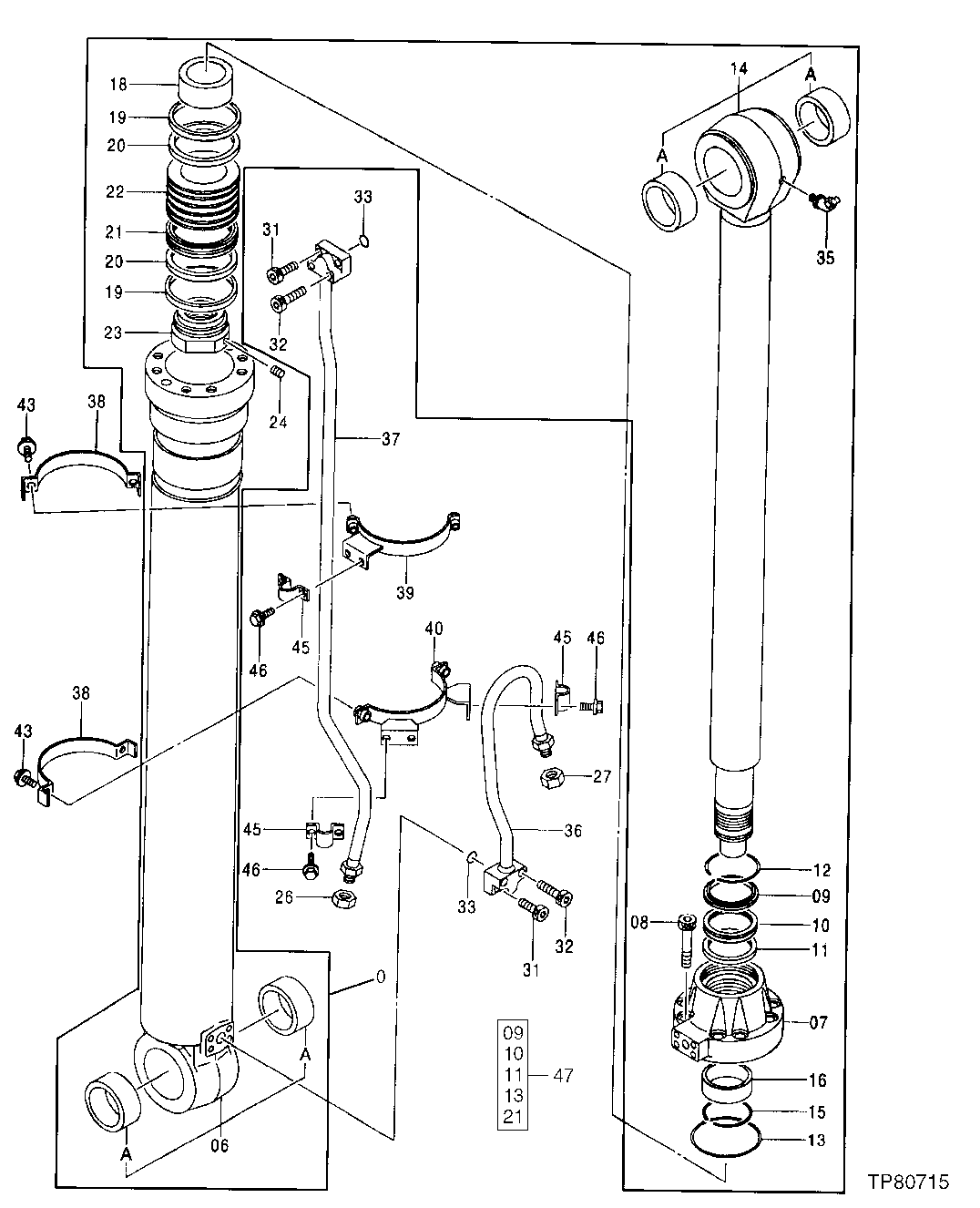

Схема запчастей John Deere 30LC/370 - 300 - Arm Cylinder, 330LC ( - 021764) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

9264717

Cylinder

SUB FOR AT250456, 9173705 OR 9173705JEX, REMAN Arm

1шт.

6

4646013

Hydraulic Cylinder Barrel

SUB FOR AT250171, AT250265 OR 9173708

1шт.

PG201378

Hyd Cylinder Barrel Reman

1шт.

6A

4381859

Bushing

SUB FOR AT250029

2шт.

7

1025101

Hydr. Cylinder Rod Guide

SUB FOR AT219589

1шт.

8

M342700

Screw

SUB FOR TH111068

8шт.

9

AT264305

Seal

SUB FOR AT250009 OR 4370927

1шт.

10

AT264300

Seal

SUB FOR 4411659 OR AT250003

1шт.

11

4411656

Ring

SUB FOR AT264299 OR AT250002

1шт.

12

4370058

Snap Ring

SUB FOR AT250001

1шт.

13

AT264309

O-Ring

SUB FOR AT250098 OR 4393350 For Heat Problems See DTAC Solution

1шт.

4641099

O-Ring

Heat Resistant

1шт.

14

4645916

Hydraulic Cylinder Rod

SUB FOR AT250172 OR 7031751

1шт.

4645916

Hydraulic Cylinder Rod

SUB FOR PG201380

1шт.

14A

4381859

Bushing

SUB FOR AT250029

2шт.

15

4372816

Snap Ring

SUB FOR AT250011

1шт.

16

AT264304

Bushing

SUB FOR AT250007 OR 4370337

1шт.

18

4370338

Bushing

SUB FOR AT250008

1шт.

19

AT264248

Ring

SUB FOR AT250005, 4370063 OR AT264302

2шт.

20

AT264303

Wear Ring

SUB FOR AT250006 OR 4370064

2шт.

21

AT264301

Seal

SUB FOR AT250004 OR 4370062

1шт.

22

3080654

Piston

SUB FOR AT219642

1шт.

23

3062096

Nut

SUB FOR AT200985

1шт.

24

4201806

Set Screw

SUB FOR TH110066

1шт.

26

4260204

Nut

SUB FOR AT219663

1шт.

27

4260205

Nut

SUB FOR AT219664

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

SUB FOR TH100044

2шт.

35

T116334

Lubrication Fitting

1шт.

36

8070112

Oil Line

SUB FOR AT250223

1шт.

37

8070113

Oil Line

SUB FOR AT250224

1шт.

38

3080222

Clamp

SUB FOR AT219641

2шт.

39

8068103

Clamp

SUB FOR AT250199

1шт.

40

8068102

Clamp

SUB FOR AT250198

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

4174241

Clamp

SUB FOR TH110059

3шт.

46

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

47

9180582

Seal Kit

SUB FOR AT250268 OR AT264441, ALSO INCLUDES AT280442 For Heat Problems See DTAC Solution

1шт.

9257552

Seal Kit

Heat Resistant

1шт.

Выбрано товаров: 42
