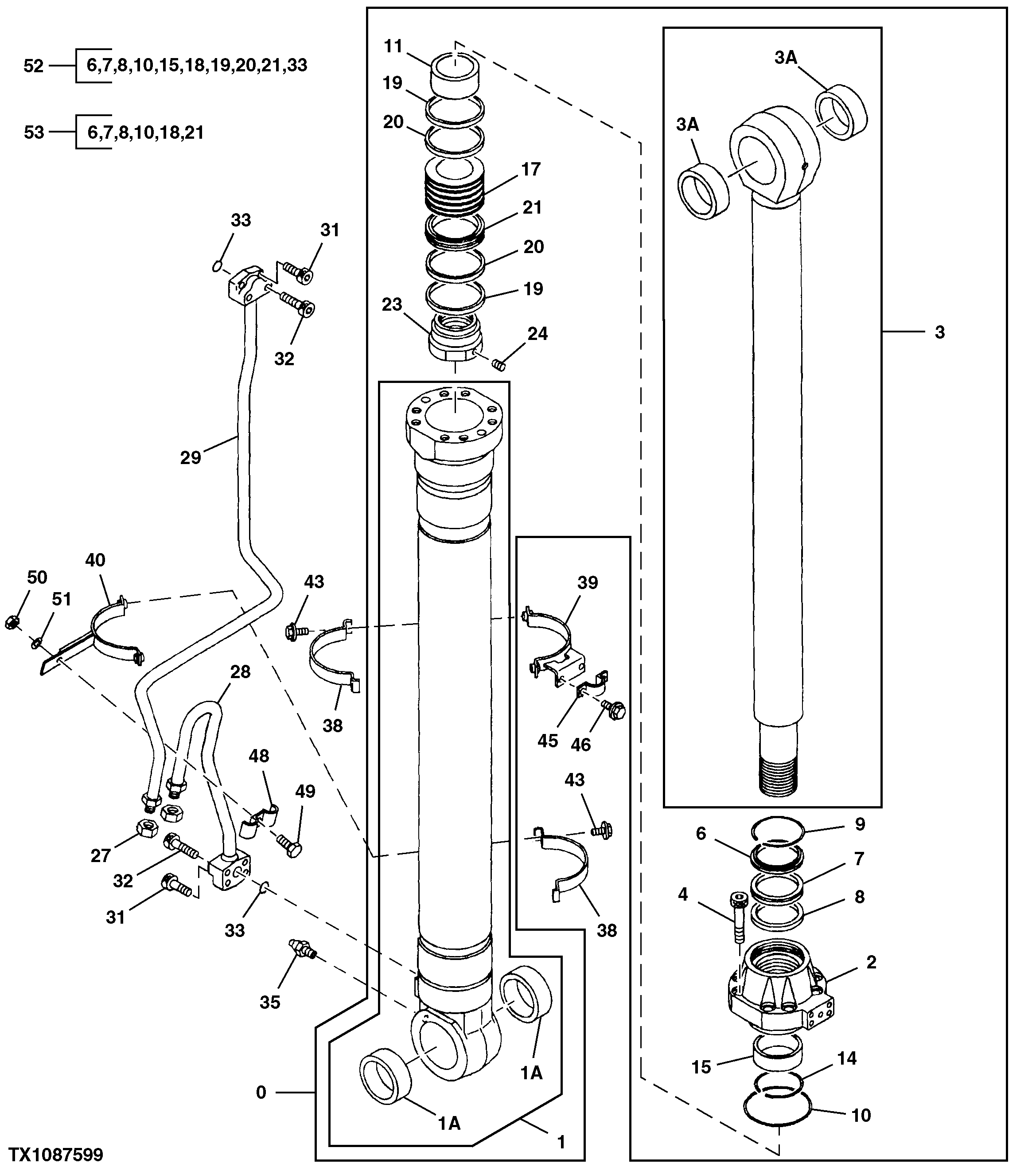

Запчасти John Deere 30LC/370 299 - Left Boom Cylinder 3360 HYDRAULIC SYSTEM

0

AT264204

Hydraulic Cylinder Reman

(A) SUB FOR (1) AT250455 AND ( 1) 9173704 Must Replace Right an d Left Cylinders As A Pair Reman

1шт.

Cylinder

(B) 0961201JEX NLA, SUB FOR (1) 919 5061EX AND (1) 9206359Y Must Replace R ight and Left Cylinders As A Pair Rema n

1шт.

1

Hydraulic Cylinder Barrel

(A) 9173707 NLA, SUB F OR AT250174 AND AT250264

1шт.

9206362

Hydraulic Cylinder Barrel

(B) ALSO ORDER (2) 3080 216, 8069891 AND 8079343

1шт.

1A

4381855

Bushing

SUB FOR AT250026

2шт.

2

Hydr. Cylinder Rod Guide

(A) 1024358 AND AT219588 NLA

1шт.

1026691

Cylinder Head

(B)

1шт.

3

7032905

Rod

(A) SUB FOR AT250175

1шт.

7037753

Rod

(B) SUB FOR 7033773

1шт.

3A

4381855

Bushing

SUB FOR AT250026

2шт.

4

19M8630

Screw

M24 X 80

9шт.

6

AT264298

Seal

(A) SUB FOR AT219685 AND 4351498

1шт.

7

AT264414

Seal

(A) SUB FOR TH111839, 4171487 AND 4411655

1шт.

8

AT333702

Seal

(A) SUB FOR AT264306 OR 4411660

1шт.

9

4383089

Snap Ring

SUB FOR AT250038

1шт.

10

AT264307

O-Ring

(A) SUB FOR AT250040 AND 4383091

1шт.

11

4383094

Bushing

(A) SUB FOR AT250042

1шт.

2041628

Ring

(B)

1шт.

14

4268206

Snap Ring

SUB FOR AT130834

1шт.

15

AT264308

Bushing

(A) SUB FOR AT250041 AND 4383093

1шт.

17

3080834

Piston

SUB FOR AT219644

1шт.

18

AT280445

Back-Up Ring

(A)

1шт.

19

AT264415

Ring

(A) SUB FOR TH111845 AND 4171490

2шт.

20

AT264416

Wear Ring

(A) SUB FOR TH111846 AND 4194622

2шт.

21

AT264417

Ring

(A) SUB FOR TH111847 AND 4386916

1шт.

23

3039349

Nut

SUB FOR TH111848

1шт.

24

4201806

Set Screw

SUB FOR TH110066

1шт.

27

4260204

Nut

SUB FOR AT219663

2шт.

28

8069110

Oil Line

SUB FOR AT250207

1шт.

29

8069111

Oil Line

SUB FOR AT250208

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

(A) SUB FOR TH100044

2шт.

35

TH100074

Lubrication Fitting

1шт.

38

3080692

Clamp

(A) SUB FOR AT219643

2шт.

3080216

Clamp

(B)

2шт.

39

8070392

Clamp

(A) SUB FOR AT250226

1шт.

8069891

Clamp

(B)

1шт.

40

8068466

Clamp

(A) SUB FOR AT250201

1шт.

8079343

Clamp

(B)

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

4174241

Clamp

SUB FOR TH110059

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

48

4229234

Clamp

SUB FOR TH111990

1шт.

49

19M8348

Cap Screw

M12 X 65

1шт.

50

14M7275

Nut

M12

1шт.

51

12H301

Lock Washer

1/2"

1шт.

52

Seal Kit

AT264440 NLA, SUB 9180581, ALSO ORDER A T264308, AT264416, AT264415 AND AT264324

1шт.

53

9180581

Seal Kit

1шт.
