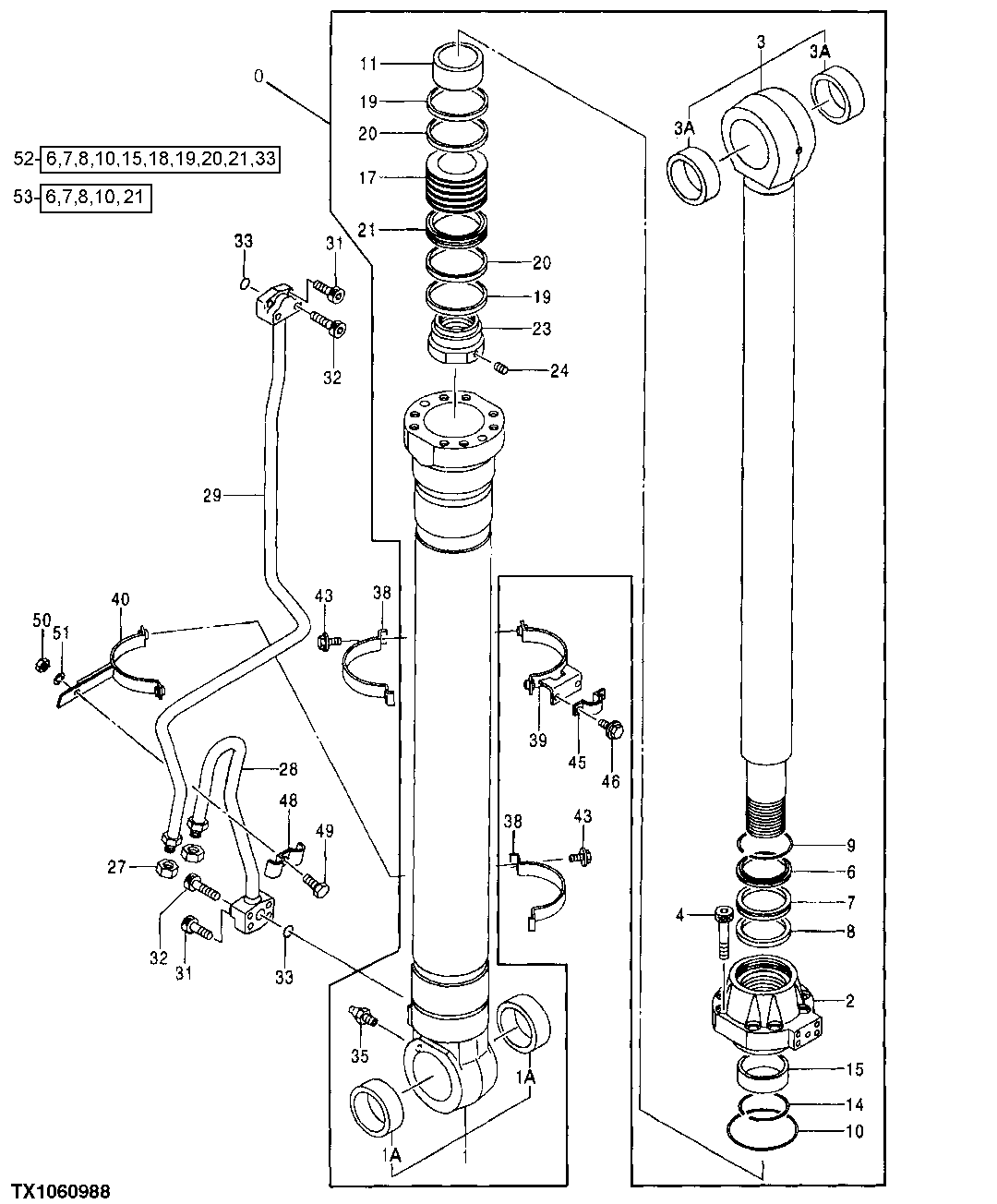

Запчасти John Deere 30LC/370 298 - Right Boom Cylinder 3360 HYDRAULIC SYSTEM

0

AT264204

Hydraulic Cylinder Reman

(A) SUB FOR (1) AT250455 AND ( 1) 9173704 Reman Must Replace Ri ght and Left Cylinders As A Pair

1шт.

Hydraulic Cylinder

(B) 0961201JEX, (1) 9195061EX AND ( 1) 9206359Y NLA Painted Part - Yellow

1шт.

1

Hydraulic Cylinder Barrel

(A) 9173707 NLA, SUB F OR AT250174 AND AT250264

1шт.

9206362

Hydraulic Cylinder Barrel

(B) ALSO ORDER (2) 30 80216, 8069891, 8079343

1шт.

1A

4381855

Bushing

SUB FOR AT250026

2шт.

2

Hydr. Cylinder Rod Guide

(A) 1024358 AND AT219588 NLA

1шт.

1026691

Cylinder Head

(B)

1шт.

3

7032905

Rod

(A) SUB FOR AT250175

1шт.

7037753

Rod

(B) SUB FOR 7033773

1шт.

3A

4381855

Bushing

SUB FOR AT250026

2шт.

4

19M8630

Screw

M24 X 80

9шт.

6

AT264298

Seal

SUB FOR 4351498, AT219685

1шт.

7

AT333702

Seal

ALSO ORDER AT280445, SUB FO R 4171485, 4411660, TH111838

1шт.

8

AT264414

Seal

SUB FOR 4411655

1шт.

9

4383089

Snap Ring

SUB FOR AT250038

1шт.

10

AT264307

O-Ring

SUB FOR 4383091, AT250040

1шт.

11

4383094

Bushing

(A) SUB FOR AT250042

1шт.

2041628

Ring

(B)

1шт.

14

4268206

Snap Ring

SUB FOR AT130834

1шт.

15

AT264308

Bushing

SUB FOR 4383093, AT250041

1шт.

17

3080834

Piston

SUB FOR AT219644

1шт.

18

AT280445

Back-Up Ring

Not Illustrated

1шт.

19

AT264415

Ring

SUB FOR 4171490, TH111845

2шт.

20

AT264416

Wear Ring

SUB FOR 4194622, TH111846

2шт.

21

AT264417

Ring

SUB FOR 4386916, TH111847

1шт.

23

3039349

Nut

SUB FOR TH111848

1шт.

24

4201806

Set Screw

SUB FOR TH110066

1шт.

27

4260204

Nut

SUB FOR AT219663

2шт.

28

8069108

Oil Line

SUB FOR AT250205

1шт.

29

8069109

Oil Line

SUB FOR AT250206

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

SUB FOR TH100044

2шт.

35

TH100074

Lubrication Fitting

1шт.

38

3080692

Clamp

(A) SUB FOR AT219643

2шт.

3080216

Clamp

(B)

2шт.

39

8070392

Clamp

(A) SUB FOR AT250226

1шт.

8069891

Clamp

(B)

1шт.

40

8068465

Clamp

(A) SUB FOR AT250200

1шт.

8079343

Clamp

(B)

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

4174241

Clamp

SUB FOR TH110059

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

48

4229234

Clamp

SUB FOR TH111990

1шт.

49

19M8348

Cap Screw

M12 X 65

1шт.

50

14M7275

Nut

M12

1шт.

51

12H301

Lock Washer

1/2"

1шт.

52

Seal Kit

AT264440 NLA, SUB 9180581, ALSO ORDER A T264308, AT264416, AT264415 AND AT264324

1шт.

53

9180581

Seal Kit

1шт.
